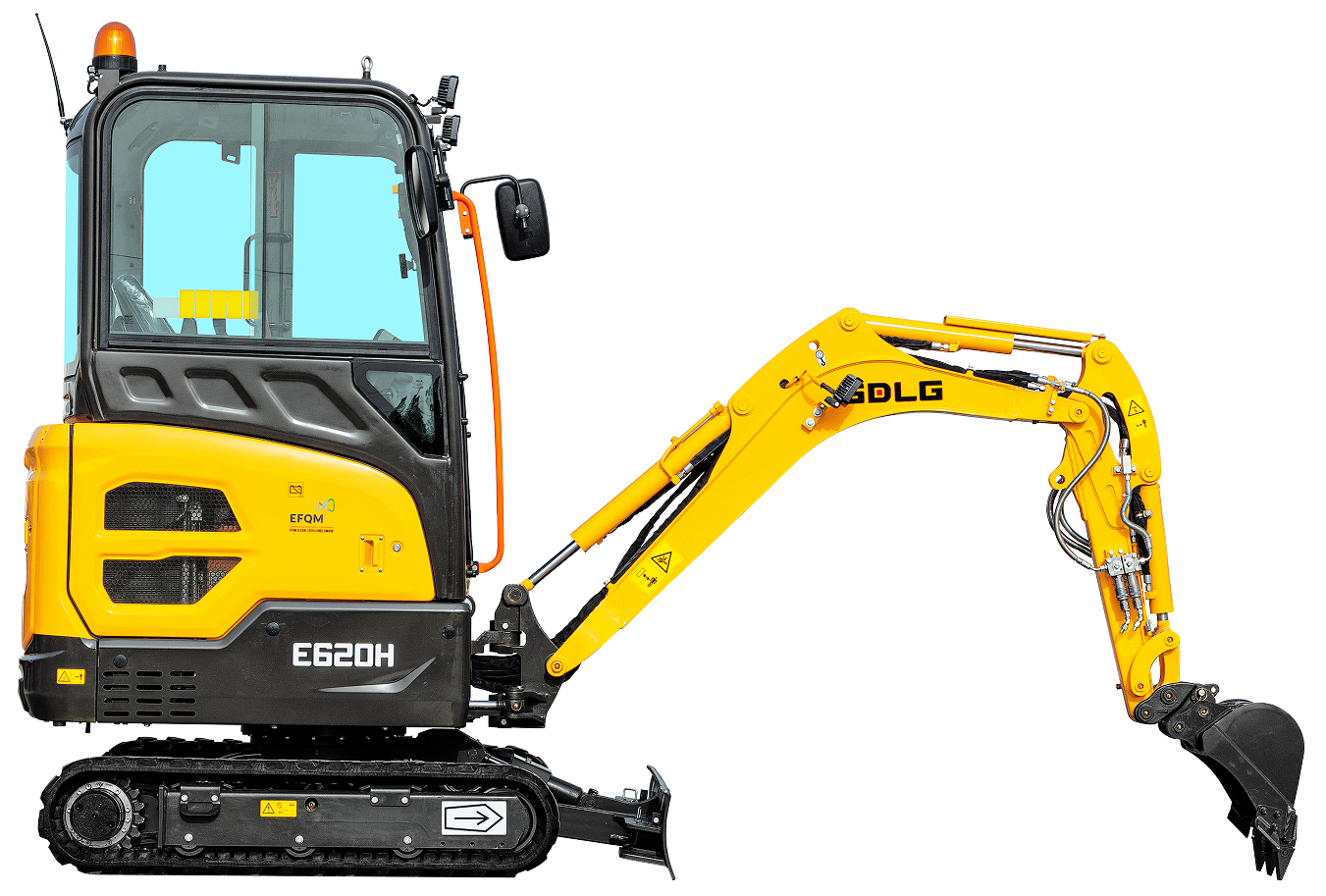

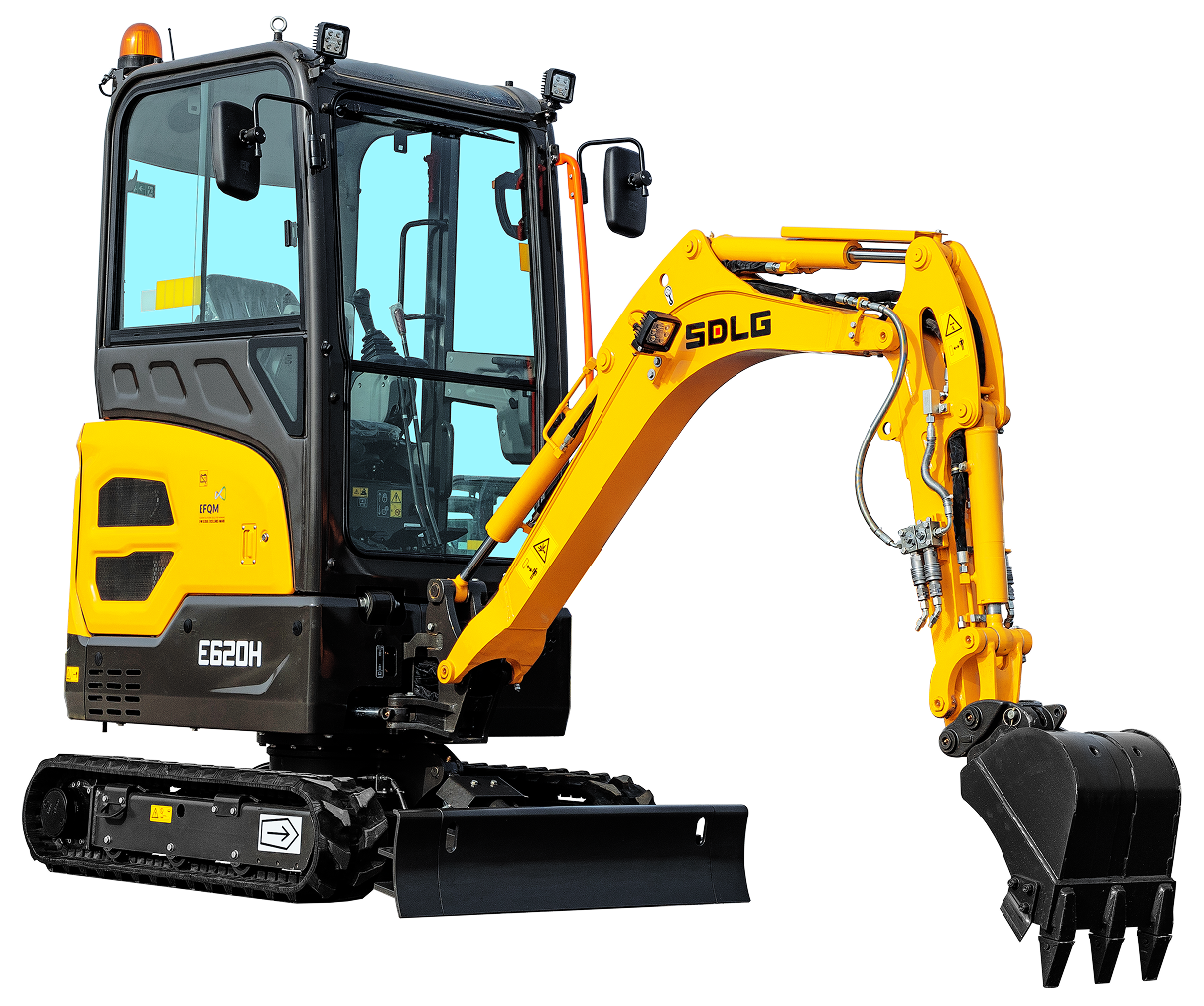

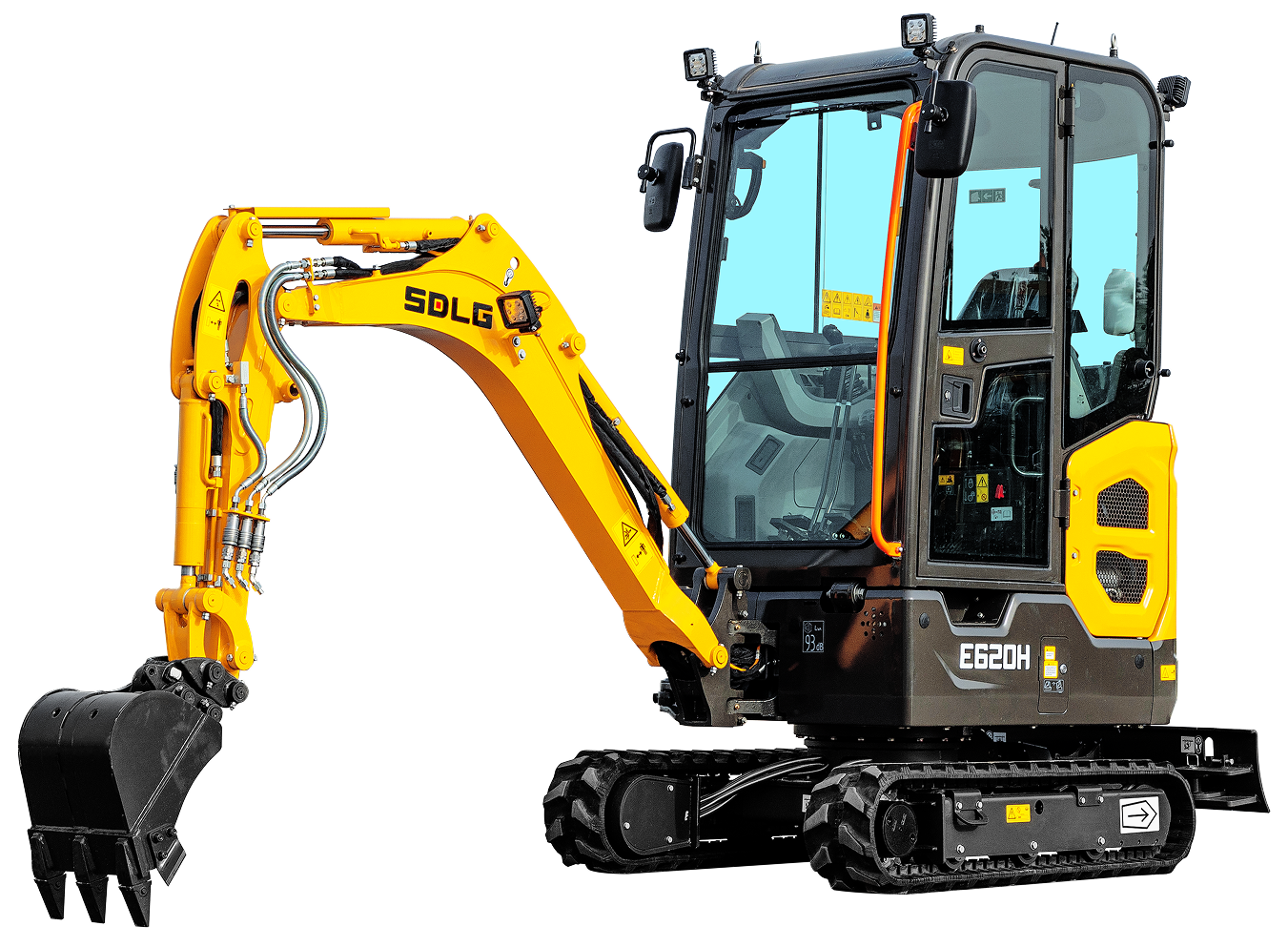

Excavator E620H

Rated power,kw (hp)

14.6(19.6)

Operating weight,kg (lbs)

2210(8472)

Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

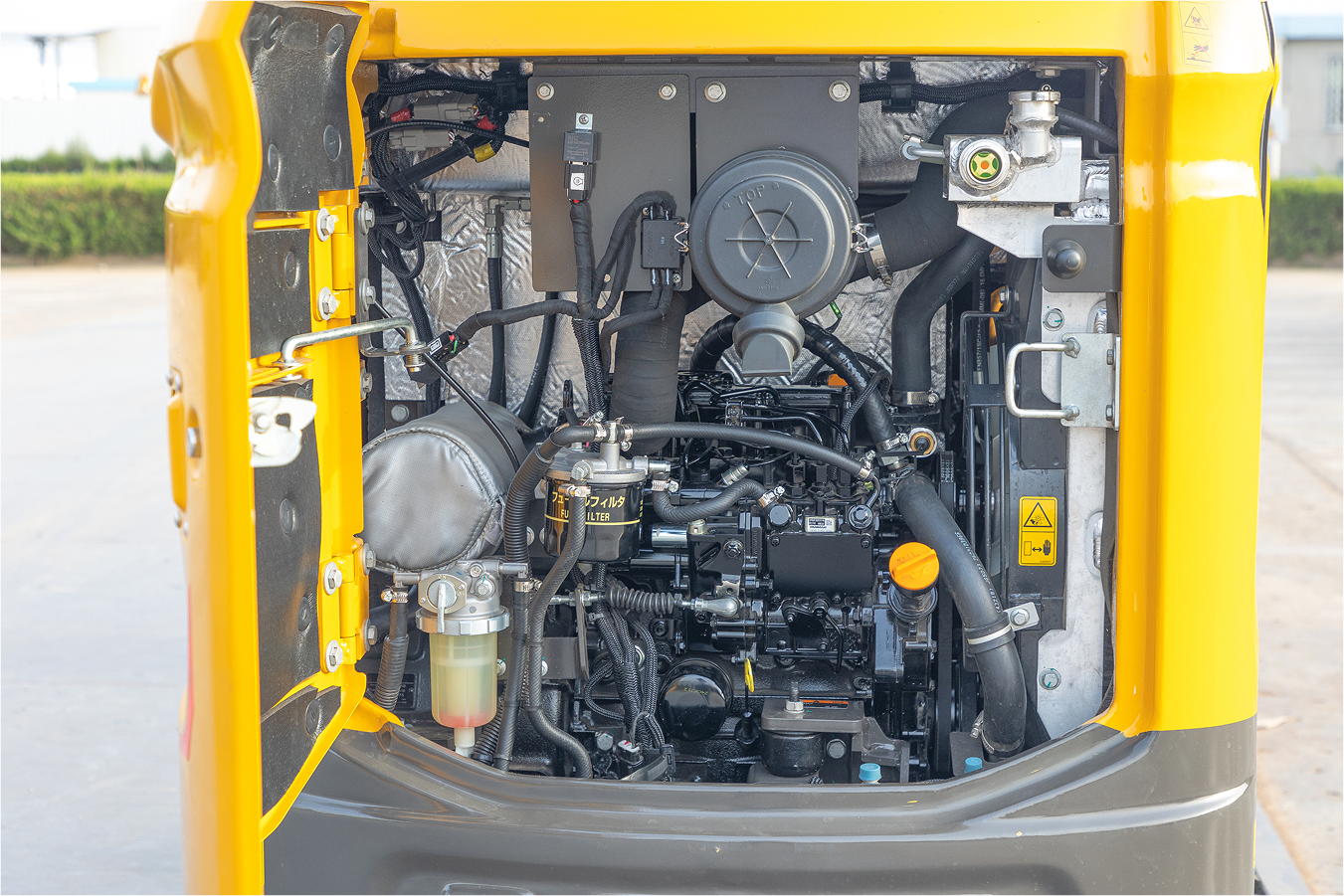

The E620H is equipped with a Yanmar engine providing ample power for all applications.

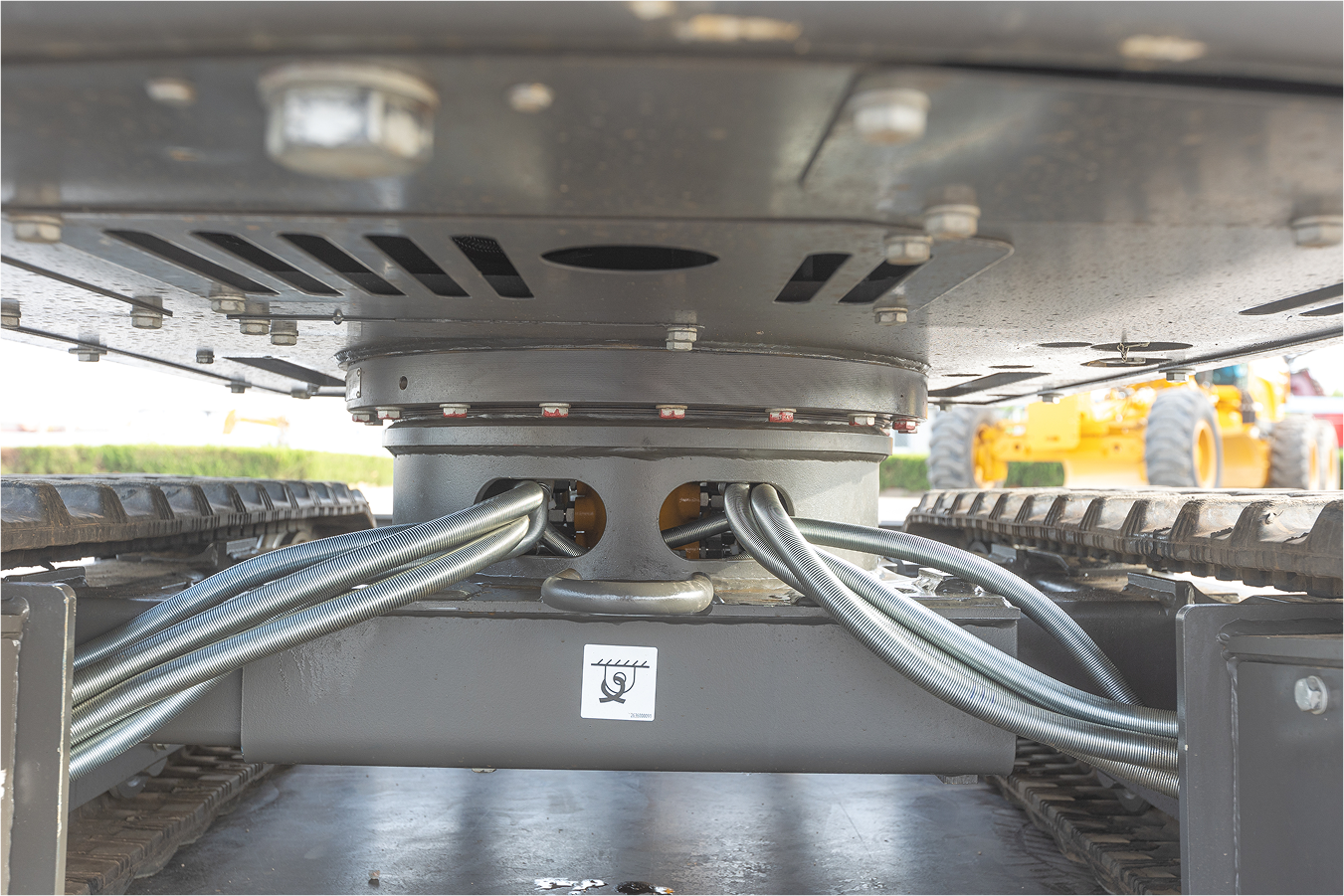

Standard units offer X1/X3 pipelines, meeting a wide range of attachments.

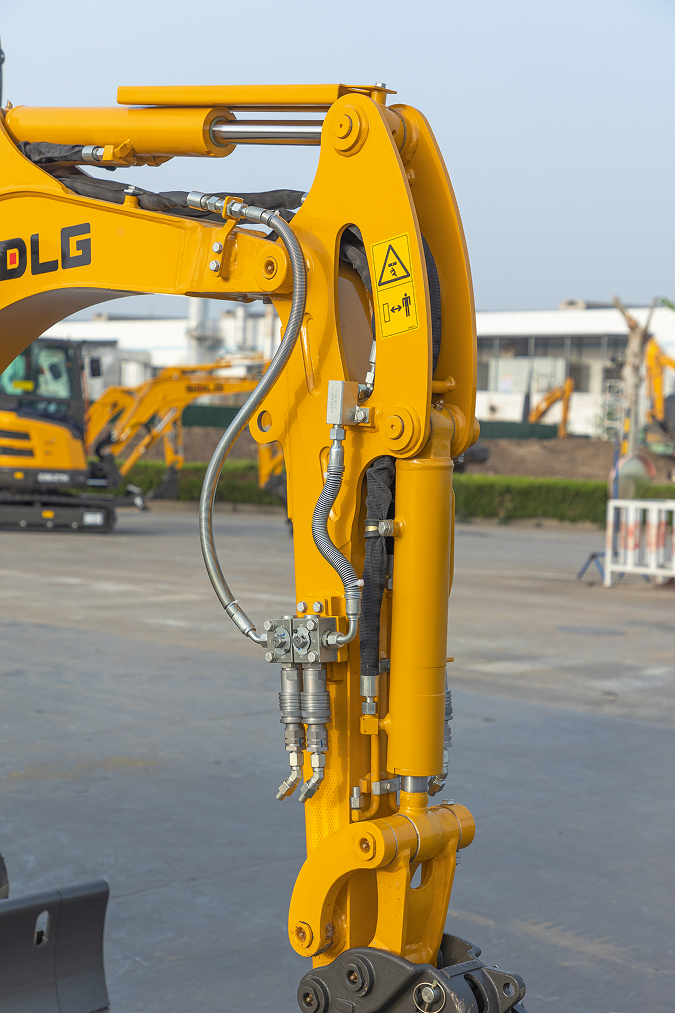

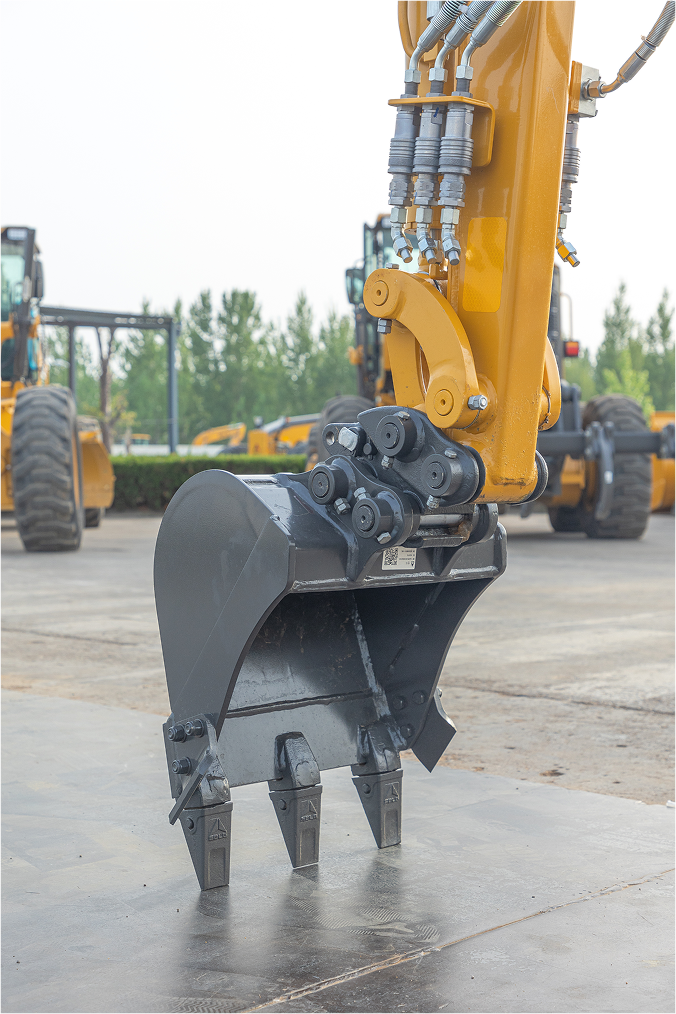

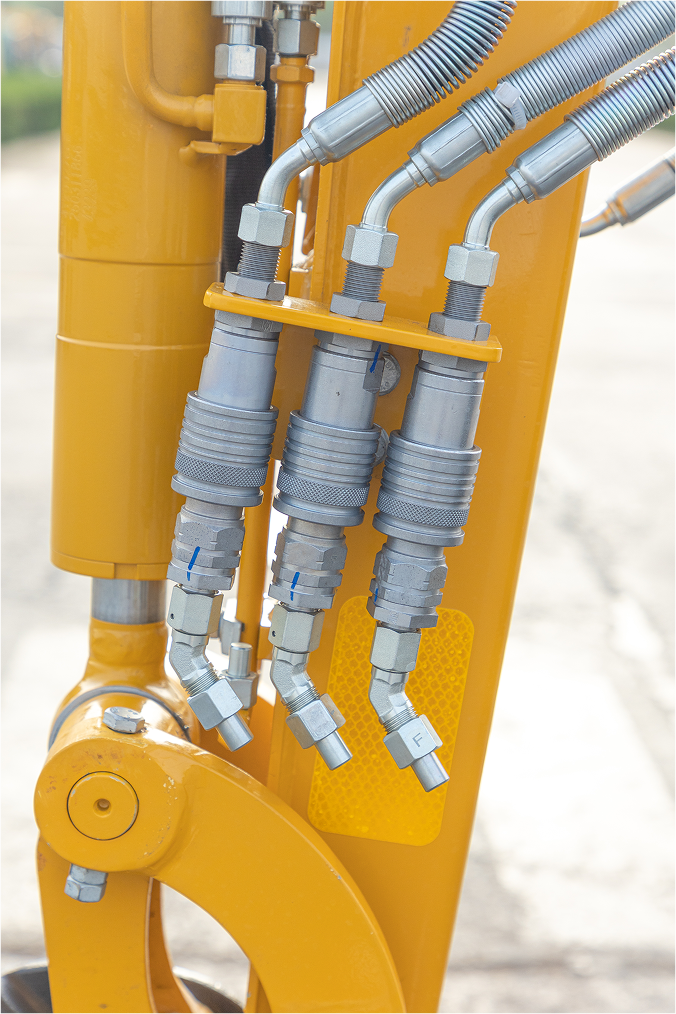

Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.

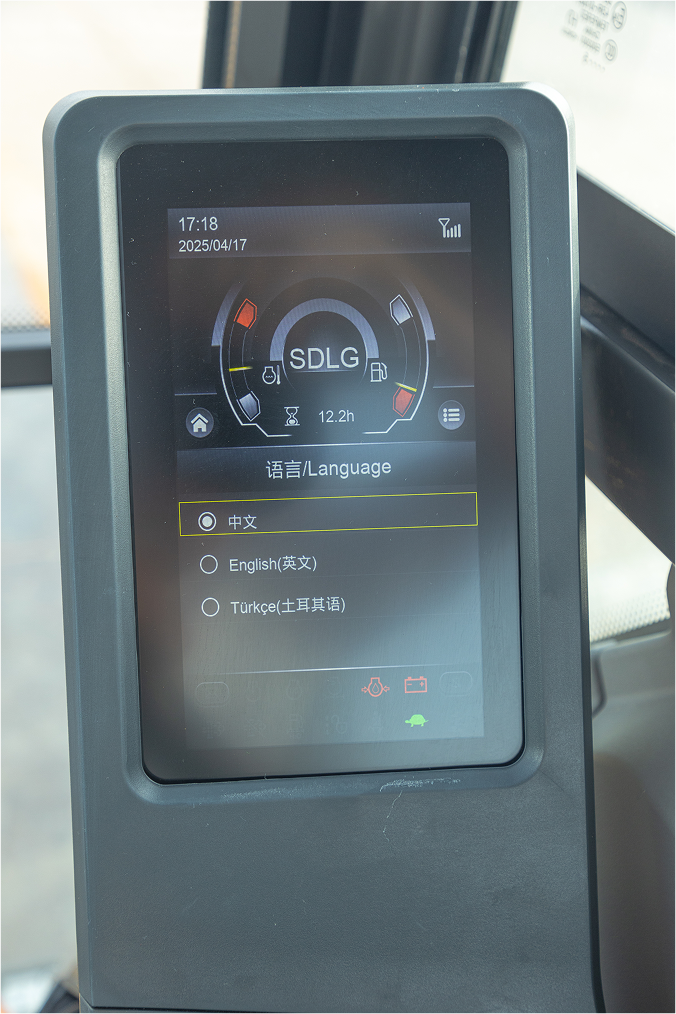

Full-color, high-resolution 7-inch screen that visually monitors the status of the unit.

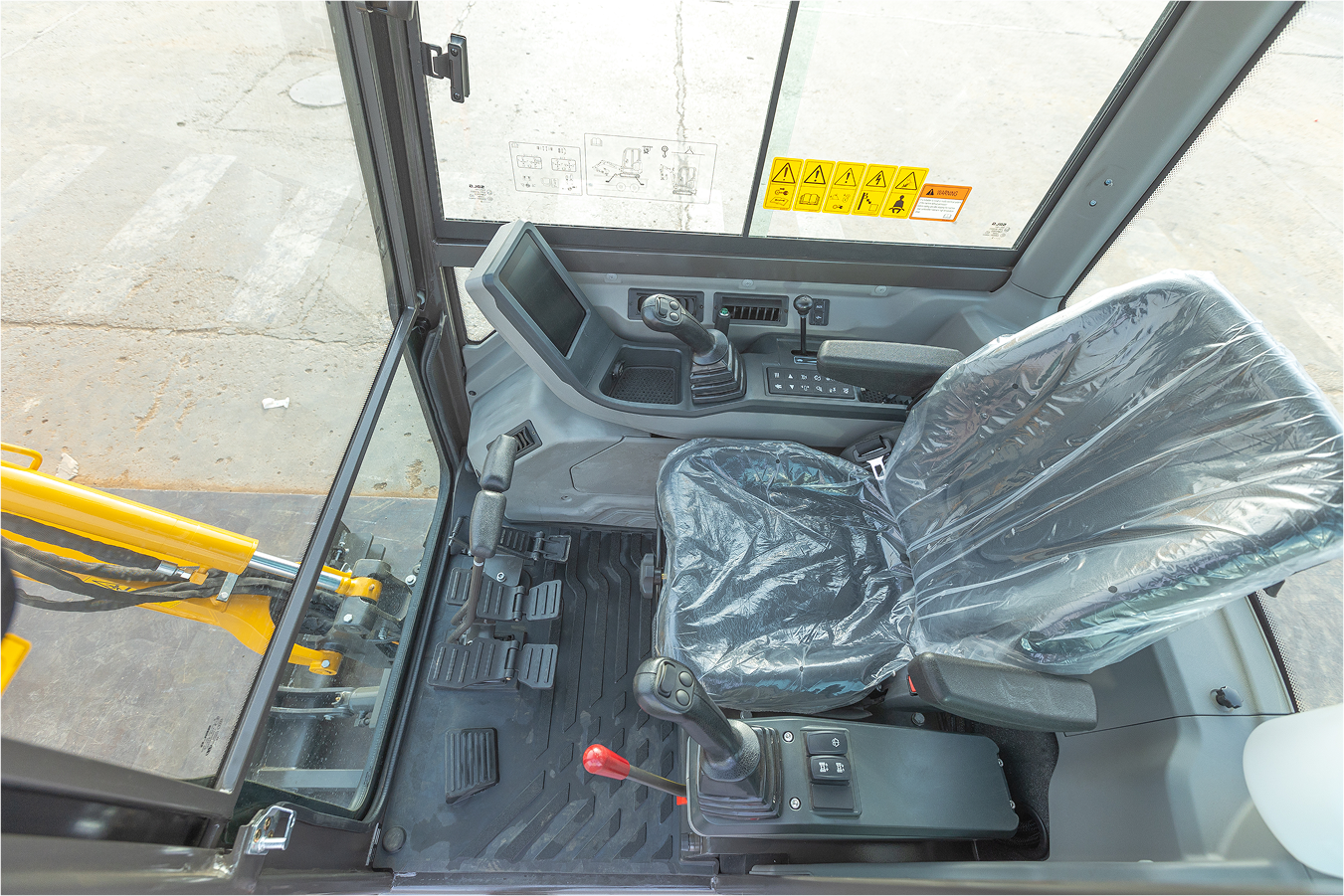

ROPS certified cab with double rearview mirrors and three LED lights.

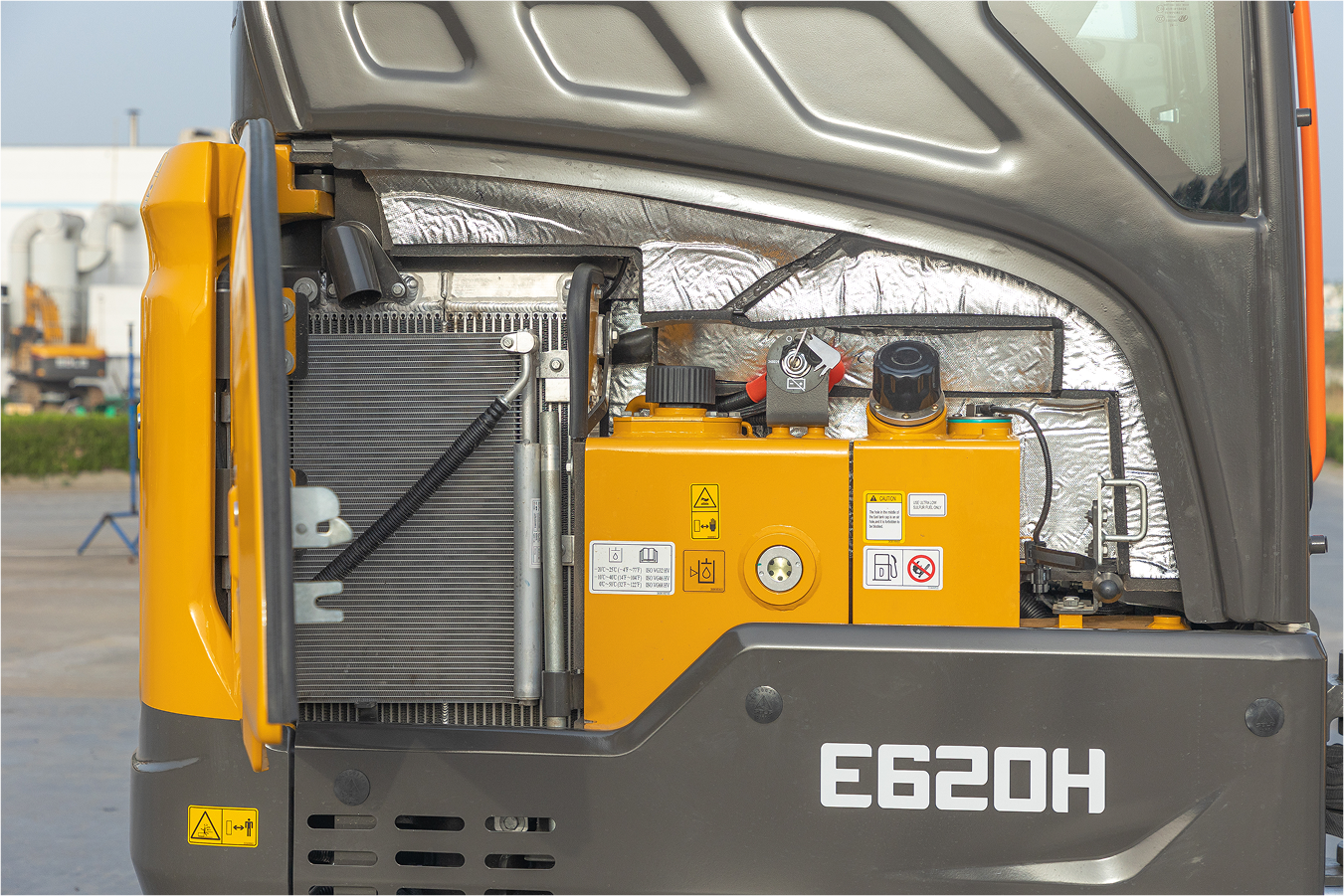

Filters are centrally located, providing easier maintenance.

Technical Parameter

Fuel tank,L (gal)	20(5.3)
Overall shipping size,mm (ft in)	3805(12'5.8")980(3'2.6")2635(8'7.7")
M Track width,mm (ft in)	230(9")
K Undercarriage length,mm (ft in)	1585(5'2.4")
J Min. front swing radius,mm (ft in)	1650(5'5")
I Tail swing radius,mm (ft in)	980(3'2.6")
G Max. vertical wall digging depth,mm (ft in)	1740(5'8.5")
F Max. digging depth (horizontal 8ft),mm (ft in)	1575(5'2")
E Max. digging depth,mm (ft in)	2305(7'6.7")
D Max. dumping height,mm (ft in)	2450(8')
C Max. cutting height,mm (ft in)	3500(11'5.8")
B Max. digging reach on ground,mm (ft in)	3900(12'9.5")
A Max. digging reach,mm (ft in)	3970(13')
Bucket capacity,m³ (yd³)	0.04(0.05)
Arm length,mm (ft in)	965(3'2")
Boom length,mm (ft in)	1830(6')
Engine model	YANMAR 3TNV80F
Ground pressure,kPa (psi)	35(5)
Blade (width*height),mm (in)	1240(48.8")*275(10.8")
Swing speed,r/min	9.2
Gradeability,°	58
Travel high speed,km/h (mi/h)	4(2.5)
Travel low speed,km/h (mi/h)	2(1.2)
Max. digging force of arm,kN (lbf)	10(2248)
Max. digging force of bucket,kN (lbf)	16.5(3709)
Main relief set pressure,bar (psi)	240(3480)
Pump capacity,L/min (gal/min)	52(11.4)
Displacement,ml (in³)	1267(77)
Rated engine speed,rpm	2400
Rated power,kw (hp)	14.6(19.6)
Operating weight,kg (lbs)	2210(8472)
