Operating weight,kg (lbs)
Rated power,kw(hp)
Utilities
Heavy infrastructure
Quarries & Aggregates

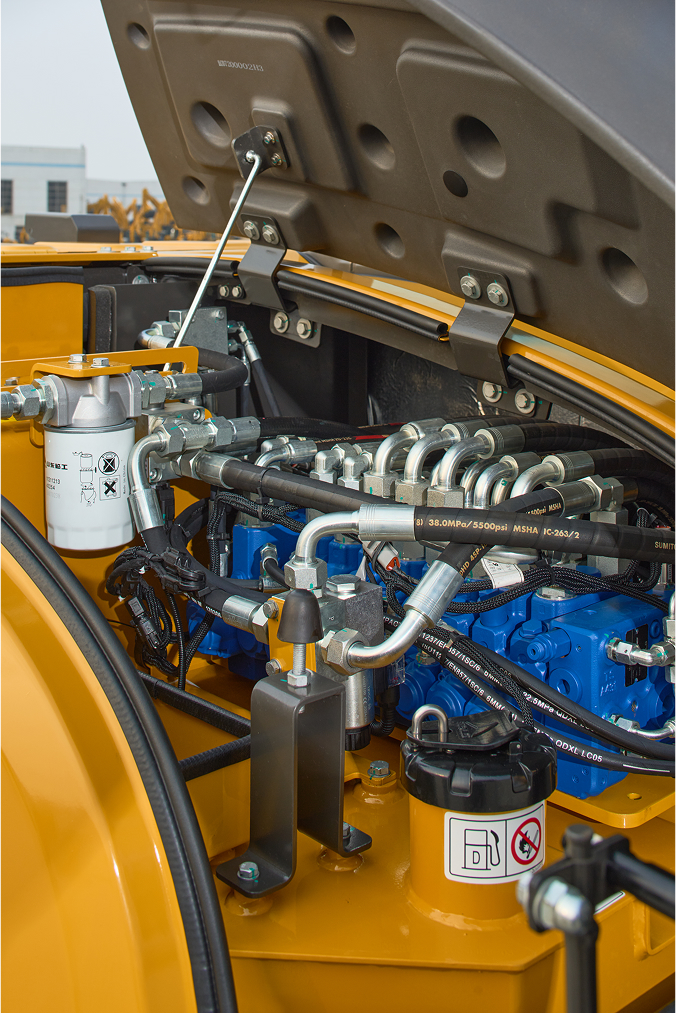

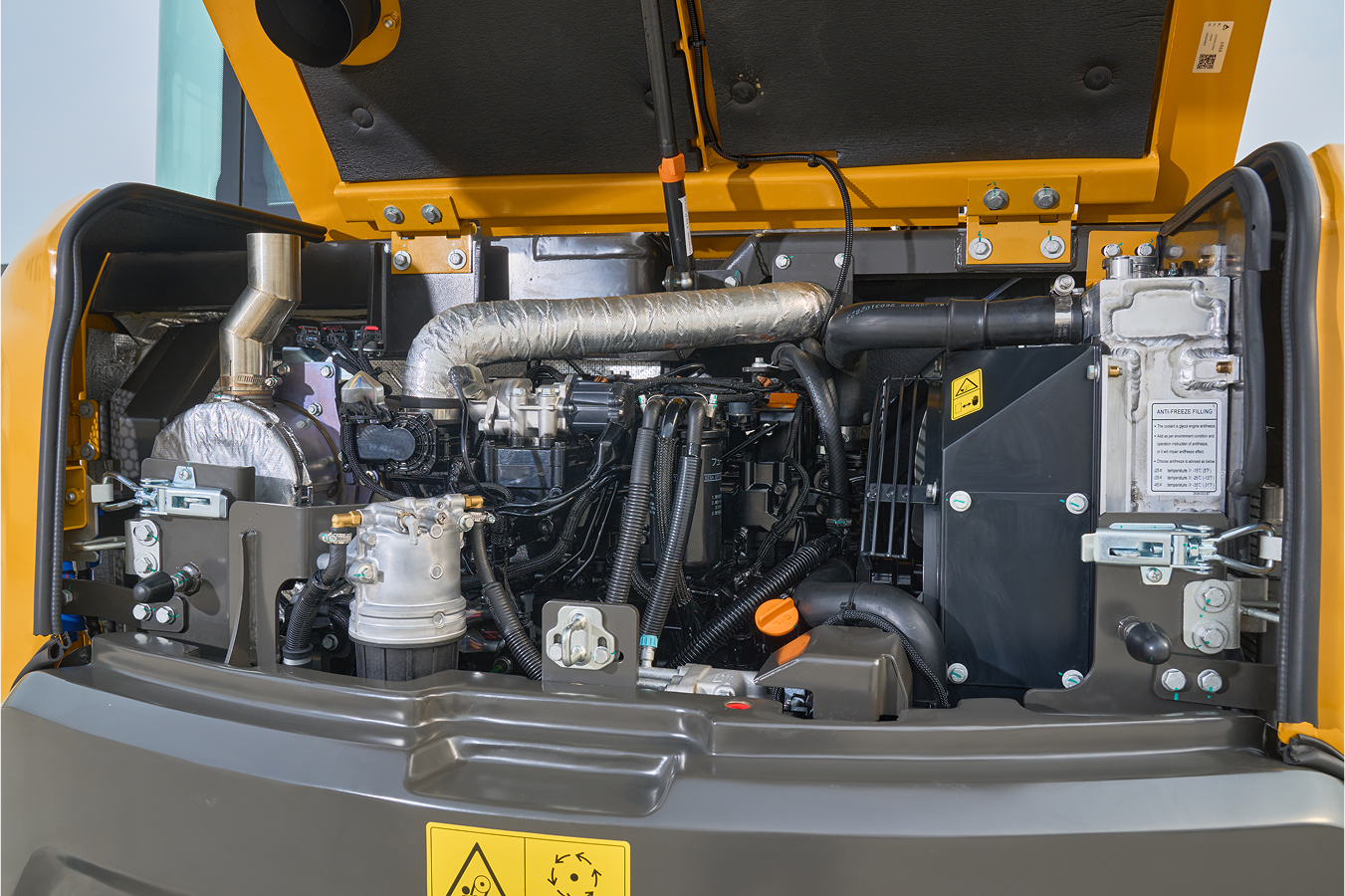

The ER680H is equipped with a Yanmar engine designed to work seamlessly with the hydraulic system, providing optimal break out force and lifting capacity.

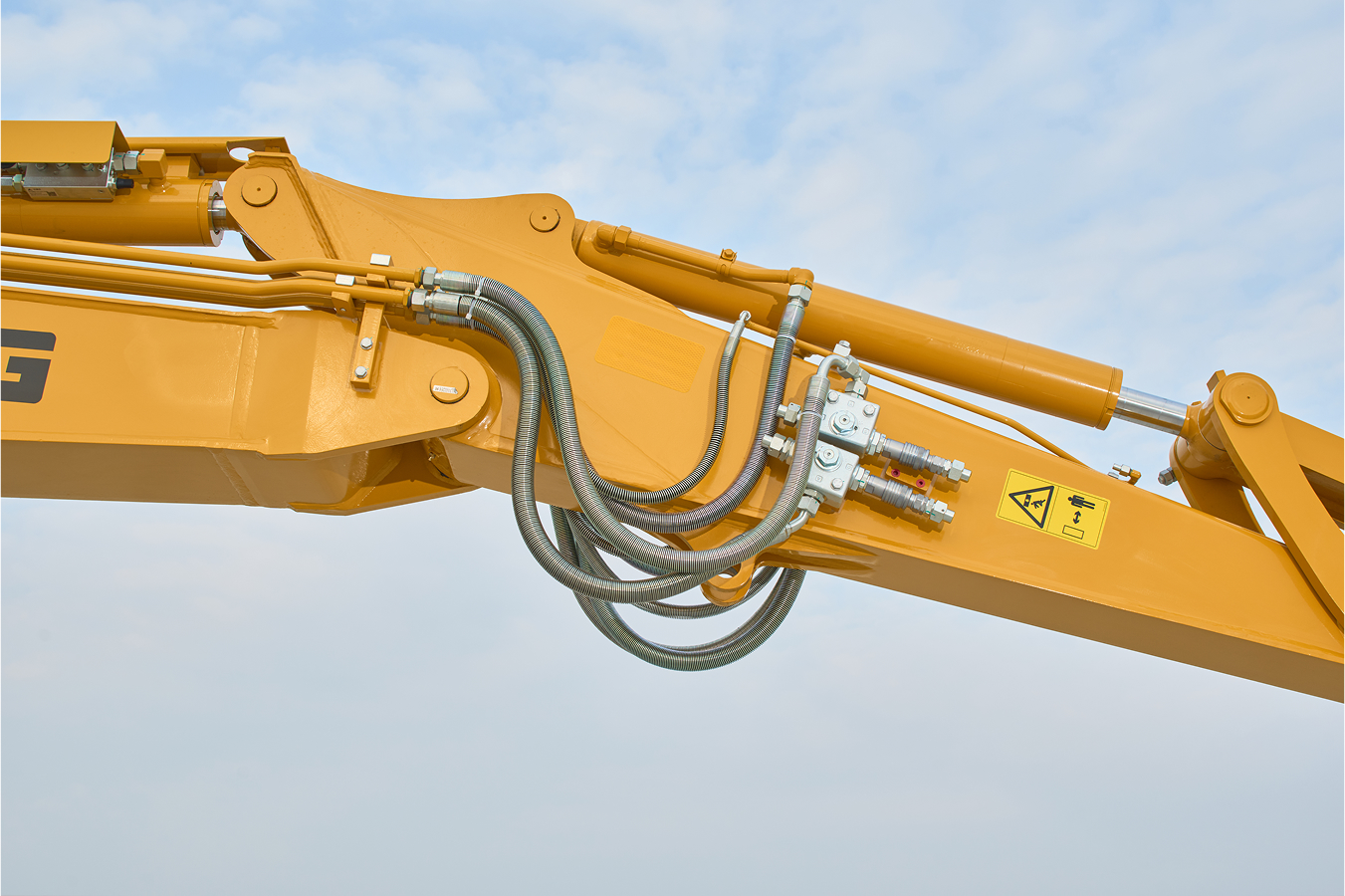

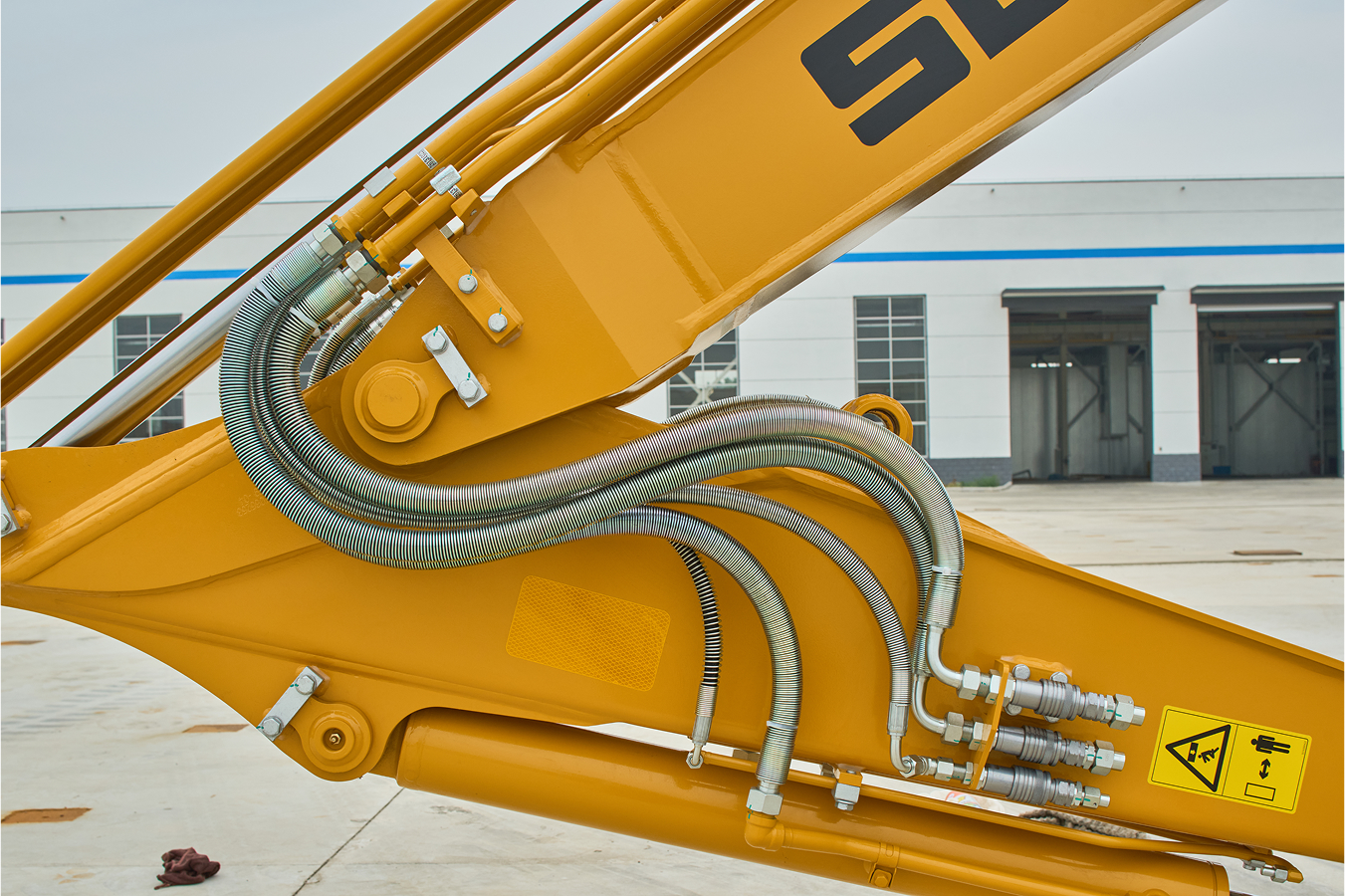

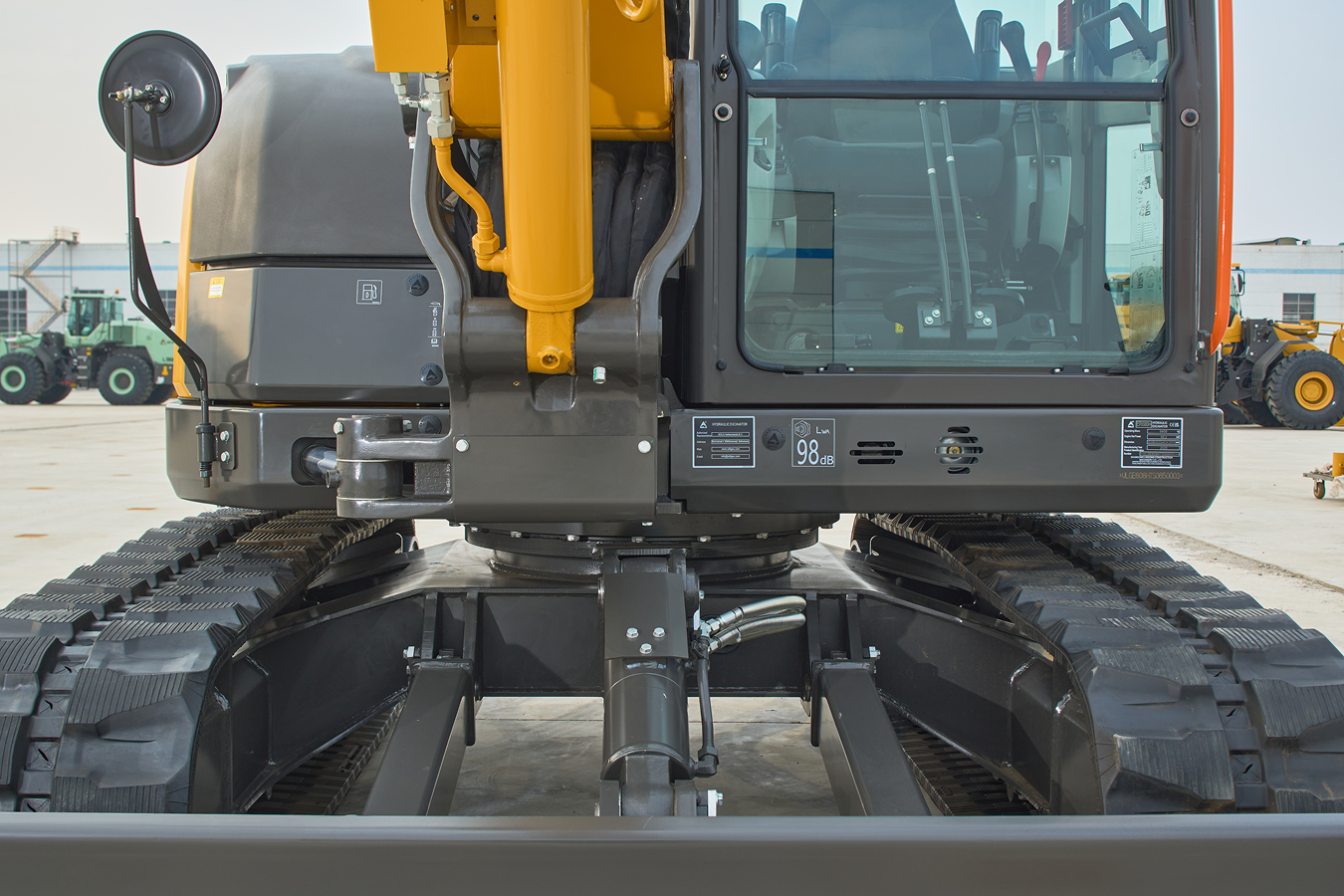

Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.

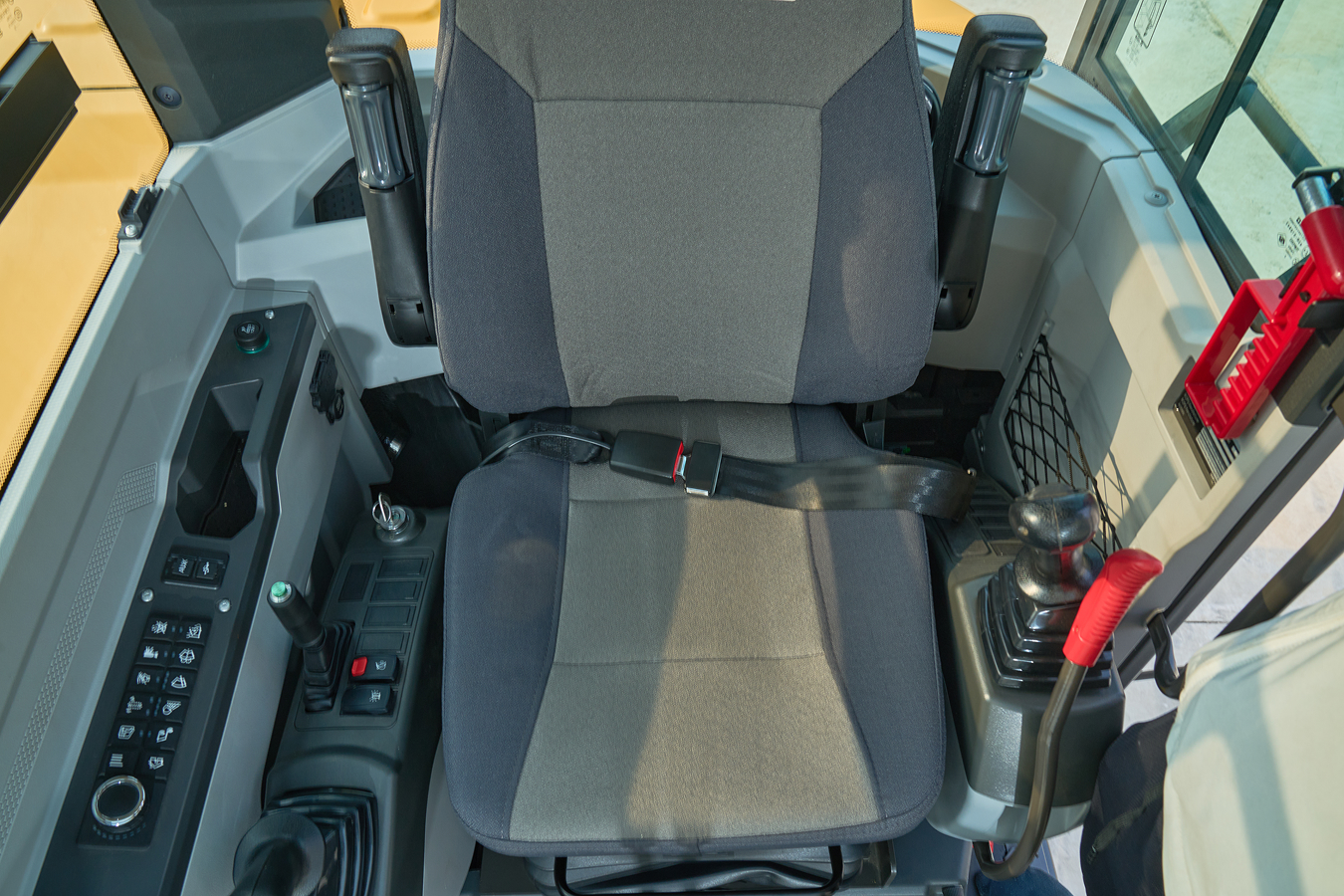

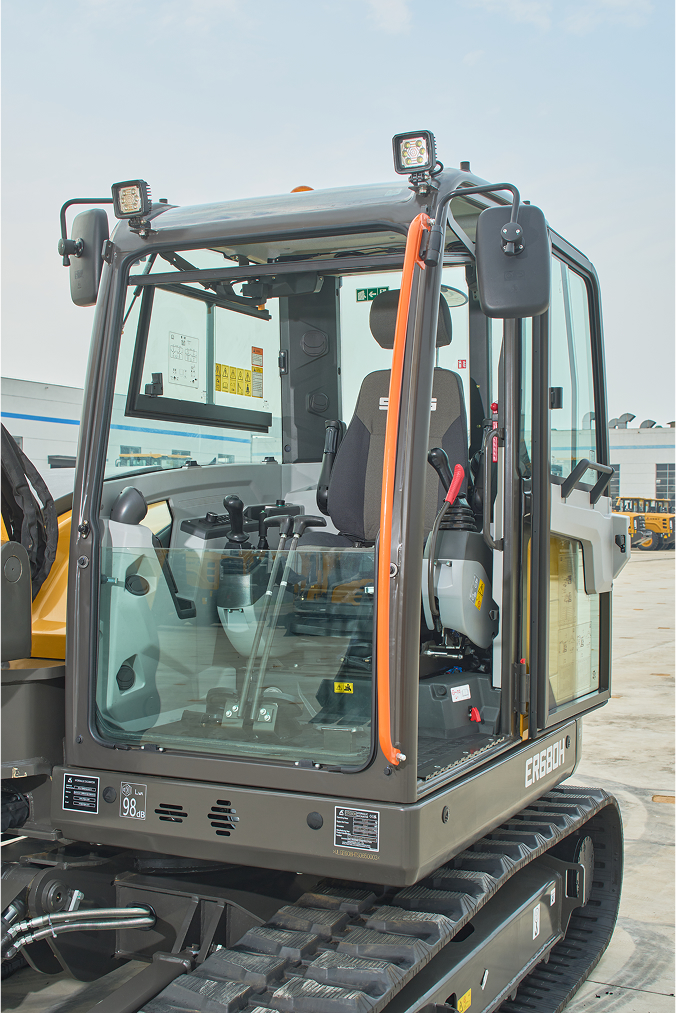

New generation ROPS cab providing a comfortable and spacious operating environment, as well as an excellent field of view improving the operating experience.
Full-color, high-resolution 7-inch screen that visually monitors the status of the unit.

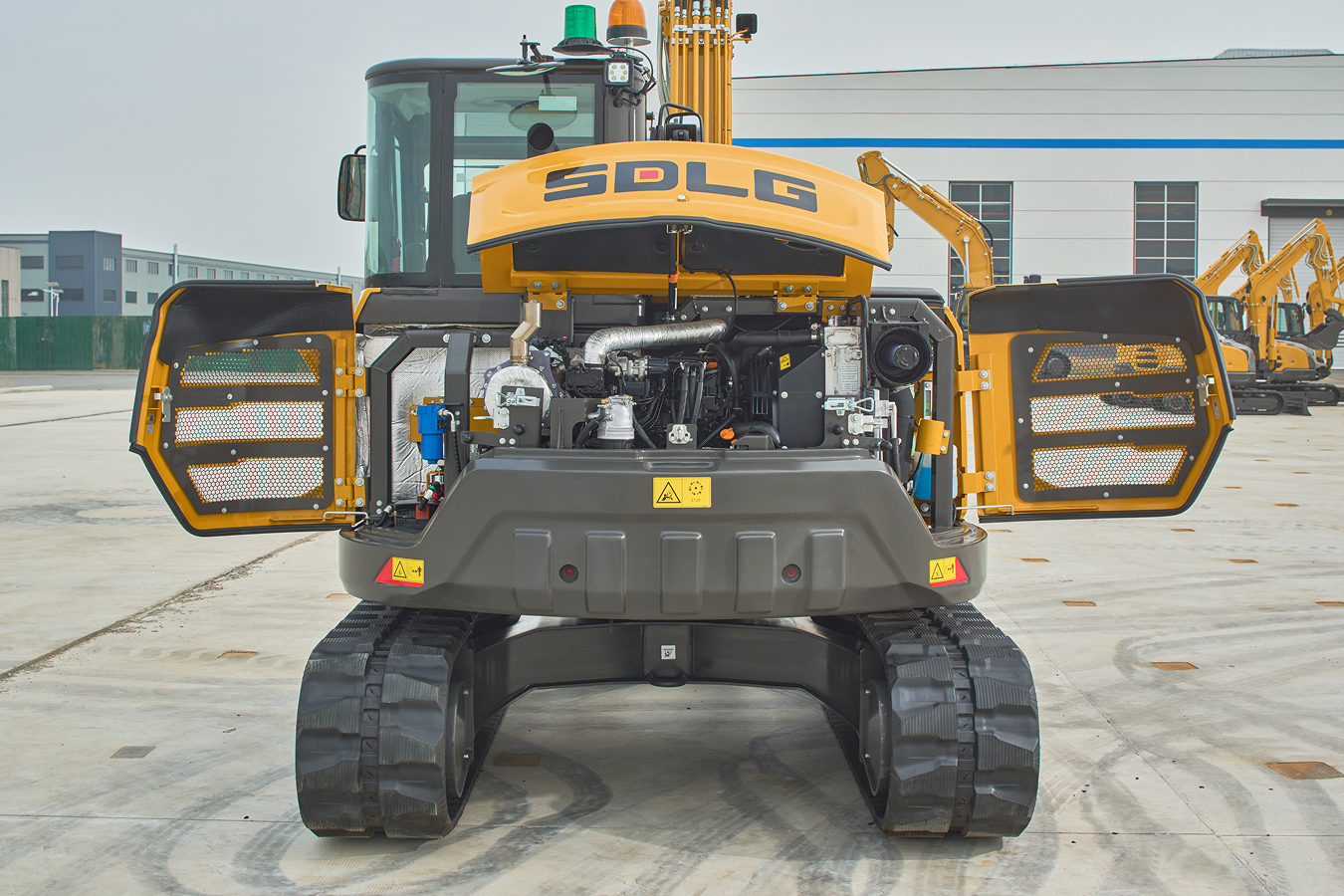

Filters are centrally located, providing easier maintenance.
| Operating weight,kg (lbs) | 8400（18518） |
| Engine model | Yanmar 4TN98C |
| Rated power,kw(hp) | 46.2（62） |
| Rated engine speed,rpm | 2200 |
| Displacement,ml(in³) | 3319（202.5） |
| Pump capacity,L/min(gal/min) | 160（42.3） |
| Main relief set pressure,bar(psi) | 260（3770） |
| Max. digging force of bucket,kN(lbf) | 63（14163） |
| Max. digging force of arm,kN(lbf) | 40（8992） |
| Travel low speed,km/h(mi/h) | 2.9（1.8） |
| Travel high speed,km/h(mi/h) | 5.4（3.4） |
| Gradeability,° | 30 |
| Swing speed,r/min | 10 |
| Blade(width*height),mm(in) | 2240（7’4.2‘’）*412（16.2‘’） |
| Ground pressure,kPa(psi) | 38.5（5.6） |
| Fuel tank,L(gal) | 115（30.4） |
| Boom length,mm(ft in) | 3500（11‘5.8‘’） |
| Arm length,mm(ft in) | 1750（5‘8.9‘’） |
| Bucket capacity,m³(yd³) | 0.28（0.37） |
| Overall shipping size,mm(ft in) | 6390（20‘11.6‘’）*2240（7‘4.2‘’）*2550（8‘4.4‘’） |
| A Max. digging reach,mm(ft in) | 6960（22‘20‘’） |
| B Max. digging reach on ground,mm(ft in) | 6775（22‘2.7‘’） |
| C Max. cutting height,mm(ft in) | 6805（22‘3.9‘’） |
| D Max. dumping height,mm(ft in) | 4785（15‘8.4‘’） |
| E Max. digging depth,mm(ft in) | 4135（13‘6.8‘’） |
| F Max. digging depth(horizontal 8ft),mm(ft in) | 3735（12‘3‘’） |
| G Max. vertical wall digging depth,mm(ft in) | 3650（11‘11.7‘’） |
| I Tail swing radius,mm(ft in) | 1470（4‘9.9‘’） |
| J Min. front swing radius,mm(ft in) | 2595（8‘6.2‘’） |
| K Undercarriage length,mm(ft in) | 2572（8‘5.3‘’） |
| M Track width,mm(ft in) | 450（1.5.7‘’） |
