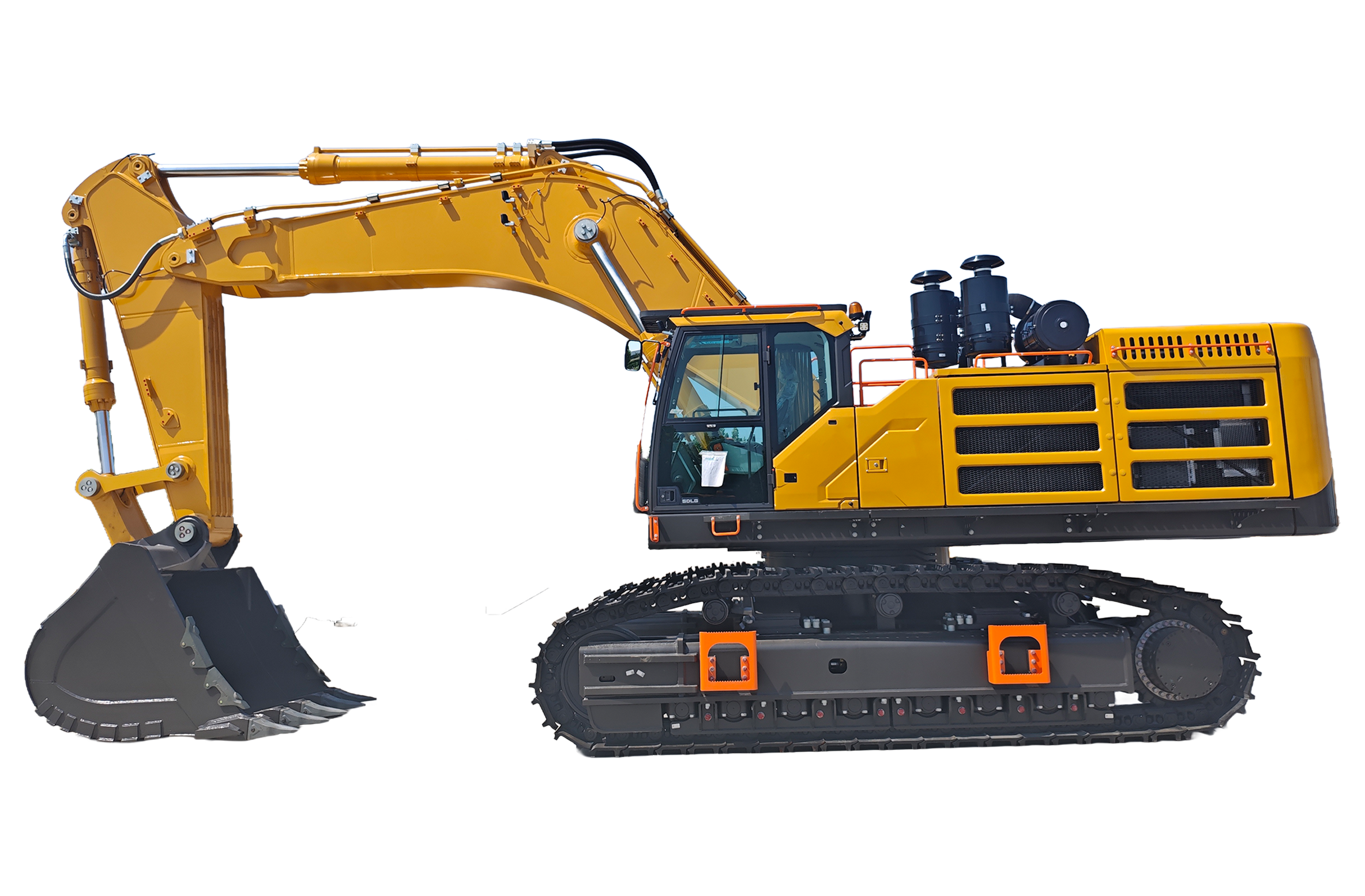

Heavy-duty structural parts for mines, solid and reliable

Heavy-duty strengthened working devices, forgings for key parts, advanced welding technology, annealing treatment, and reliable structure.

The bucket blade is made of high-strength wear-resistant steel plate, and thus can adapt to the harsh working conditions of the mine.

Optional heavy rock buckets and light soil buckets are available to adapt to different working conditions.

The chassis is designed with a 90-ton four-wheel and one-belt structure, which is reliable and durable; the track width is adjustable to meet transportation and working needs; the standard full-protection track link guard plate can effectively protect the chassis and prolong its service life.

The backflushing primary filter and the enlarged main air filter have a filtration efficiency of 99.9%, which can effectively protect the engine.

The primary filter is automatically cleaned when it stops, and can also be cleaned manually, to reduce manual operations such as frequent cleaning and air filtering.

Extra large fuel tank is provided to realize longer battery life.

Intelligent control, high-end and comfortable

This machine is equipped with high-end suspension seats, which are multi-angle adjustable and have heating function to withstand severe cold in winter, and thus are very user-friendly.

Heating and cooling storage box: Built-in air conditioner outlets are available for storage of cold drinks to relieve heat in summer and for heating food and drinking water in winter.

This machine comes standard with an 8-inch LCD color touch display, which features two-way operation via buttons and touch screen, and good selectivity; it is equipped with panoramic cameras.

Through the display, intelligent operations such as forward and reverse rotation of the task-variable cooling fan and one-button switching between forward and reverse rotation can be performed.

The right pilot console integrates multi-level switches such as page turning switch, throttle switch, high/ low speed switch, and maximum power switch, which are within easy reach and easy to control.

Reasonable layout and easy maintenance

The oil filter, air filter, and electrical centralized control box are centrally arranged. The fuses and relays of the machine are centrally arranged in the control box.

The layout diagram is printed on the back of the cover for easy maintenance.

The oil filter, main pump pressure measuring port, and fuel pump are centrally arranged in the same hood for convenient maintenance, testing, and refueling. The standard automatic centralized lubrication system makes maintenance easy and saves time and effort.

The widened traveling passages are provided on both sides for easy maintenance.
