Operating Weight (kg)
Bucket capacity (m³)
Utilities
Heavy infrastructure
Quarries & Aggregates

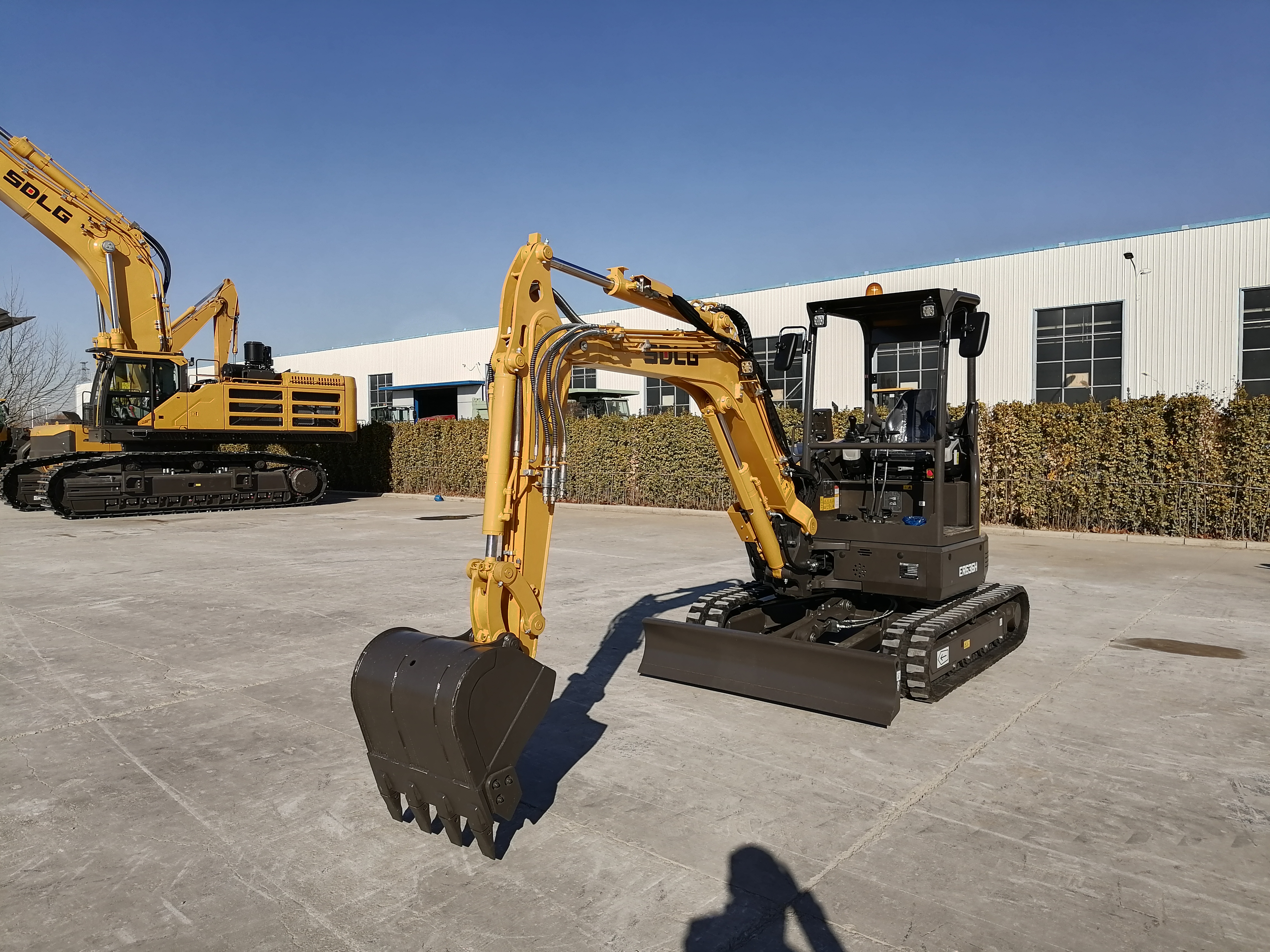

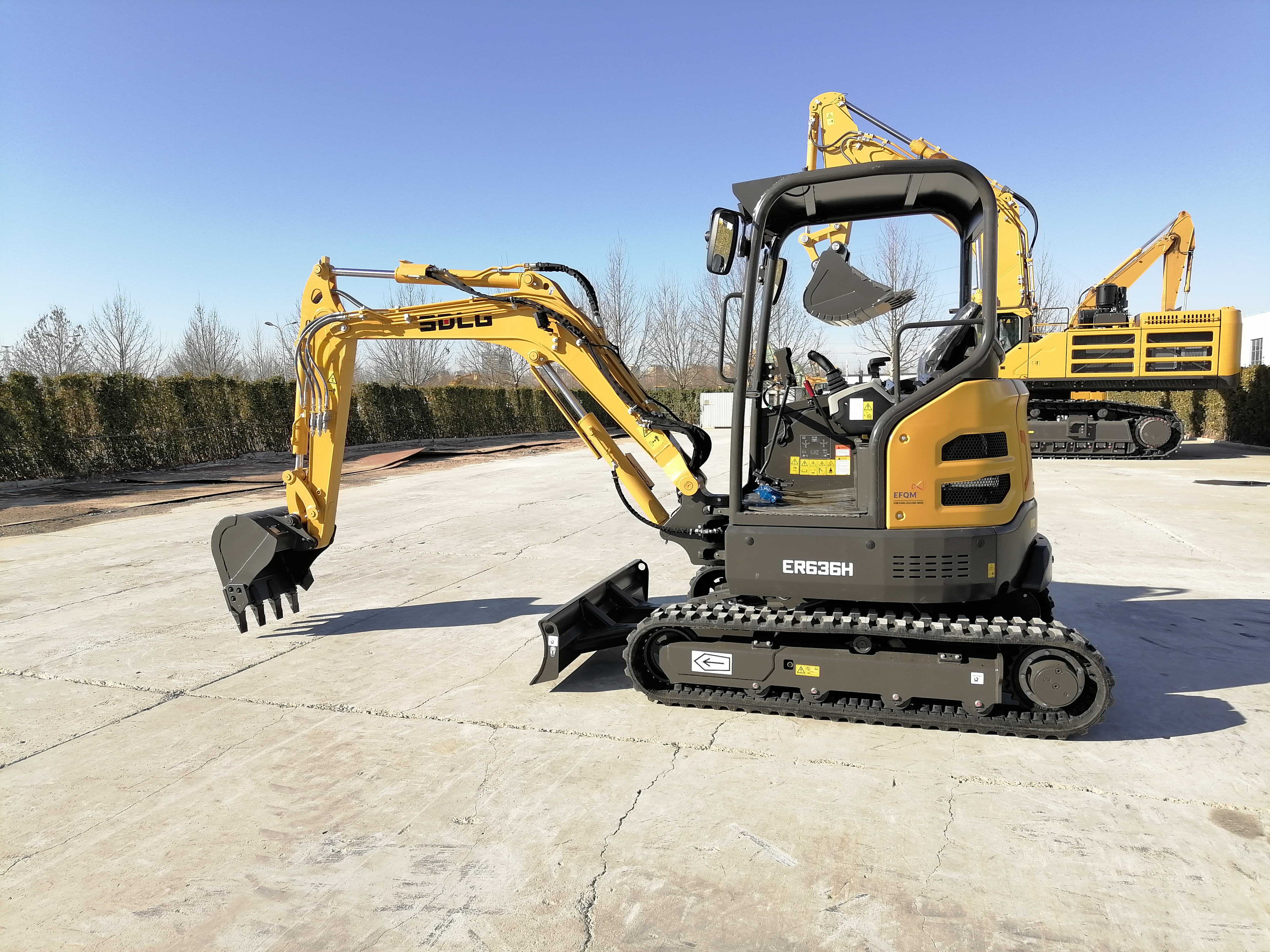

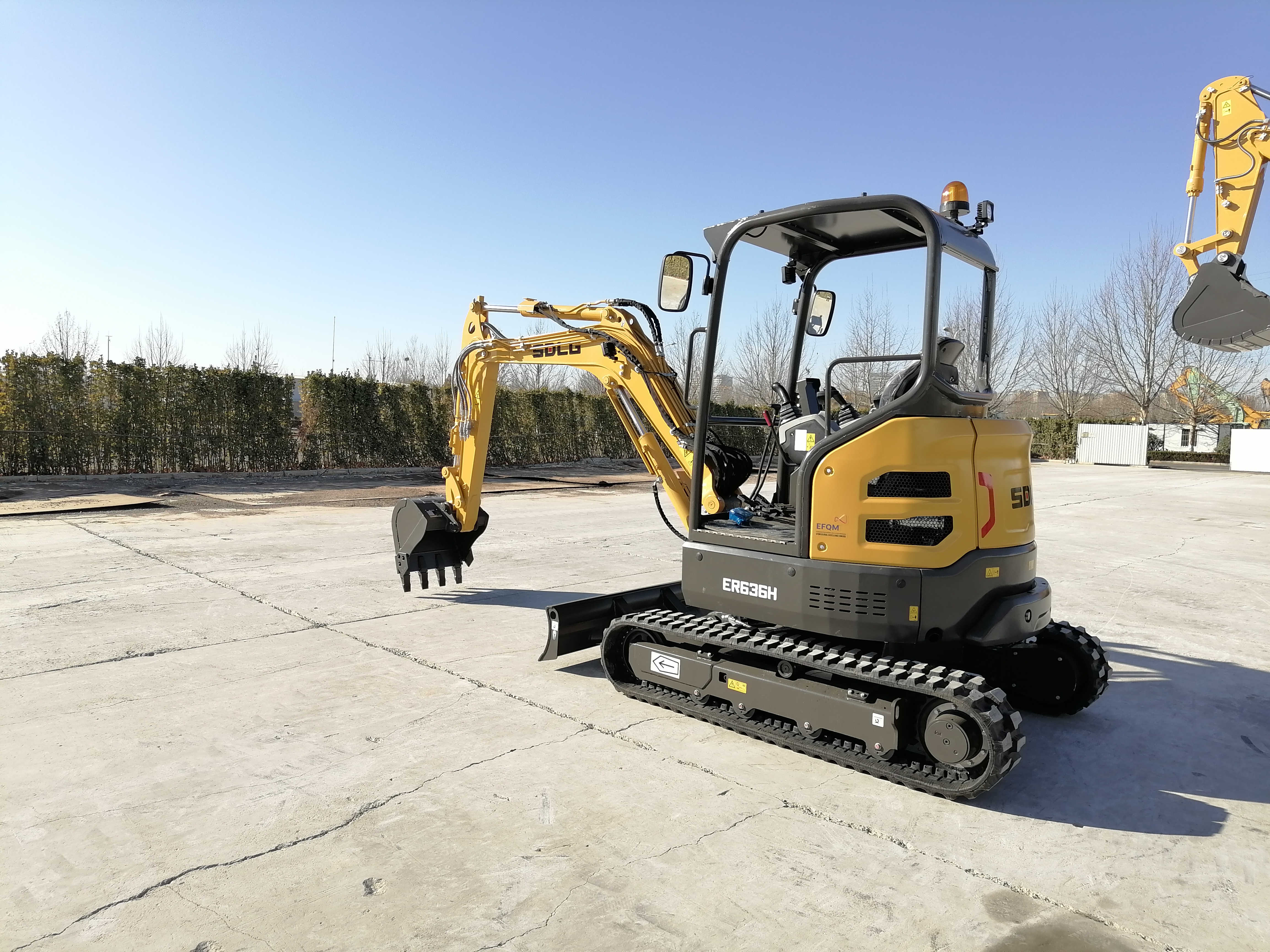

The ER636H offers a Kubota engine perfectly matched with the hydraulic system, providing optimal
break out force and lifting capacity.
Optimized large-displacement travel motor with high traction force, offers a solution for various
complex working conditions.
Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
ROPS&TOP guard certified canopy with double rearview mirrors and three LED lights.
Filters are centrally located, providing easier maintenance.
| Operating Weight (kg) | 2945kg |
| Bucket capacity (m³) | 0.076m³ |
| Bucket capacity range | 0.07-0.16 |
| Average ground pressure | 34.8mm |
| Slewing speed | 9r/min |
| Traveling speed (low/high) | 2.4/4km/h |
| Maximum digging force | 23.5/32kN |
| Altitude | 1200m |
| Wading depth | 391mm |
| Engine model/Drive Motor Model | 3TNV88-ZCSCLG |
| Engine power | 20.4KW |
| Maximum flow rate | 99L/min |
| Fuel specifications and filling amount | 33L |
| Overall length | 4850mm |
| Overall width | 1700mm |
| Overall height | 2745mm |
| Boom length | 2450mm |
| Wheel track | 1400 |
| Arm length | 1700mm |
| wheelbase | 1685mm |
| Crawler wheelbase/Wheelbase | 1685mm |
| Maximum digging radius | 5340mm |
| Maximum digging depth | 3100mm |
| Maximum discharge height | 3380mm |
| Overall length during transfer | 4850mm |
| Shovel width (with band edge) | 626mm |
| Maximum digging depth under length of bottom surface of 2.5m | 2570mm |
| Maximum digging height | 4700mm |
| Contour dimension of complete machine (transfer position) | 4850×1700×2745mm |
| Overall width of upper assembly | 1500 |
| Overall width of chassis | 1700mm |
| Rear slewing radius | 850mm |
| Ground clearance of upper assembly | 575mm |
| Overall length of crawler | 2880mm |
| Wheel track of crawler/Wheel track | 1400mm |
| Track shoe width | 300mm |
| Minimum ground clearance | 220mm |
| Overall height of working mechanism during transfer | 1620mm |
| Maximum digging radius of reference ground | 5220mm |
| Maximum vertical digging depth | 2100mm |
| Minimum front turning radius | 2275mm |
