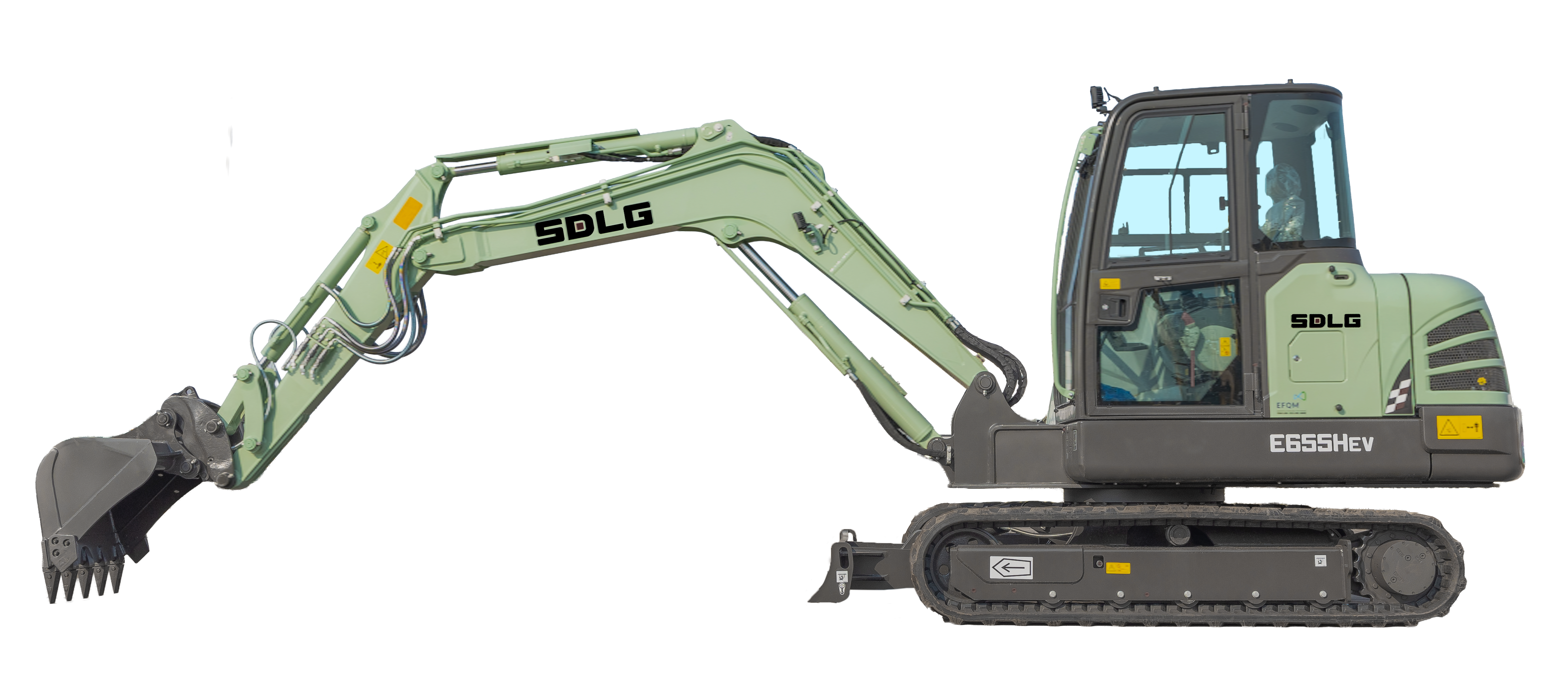

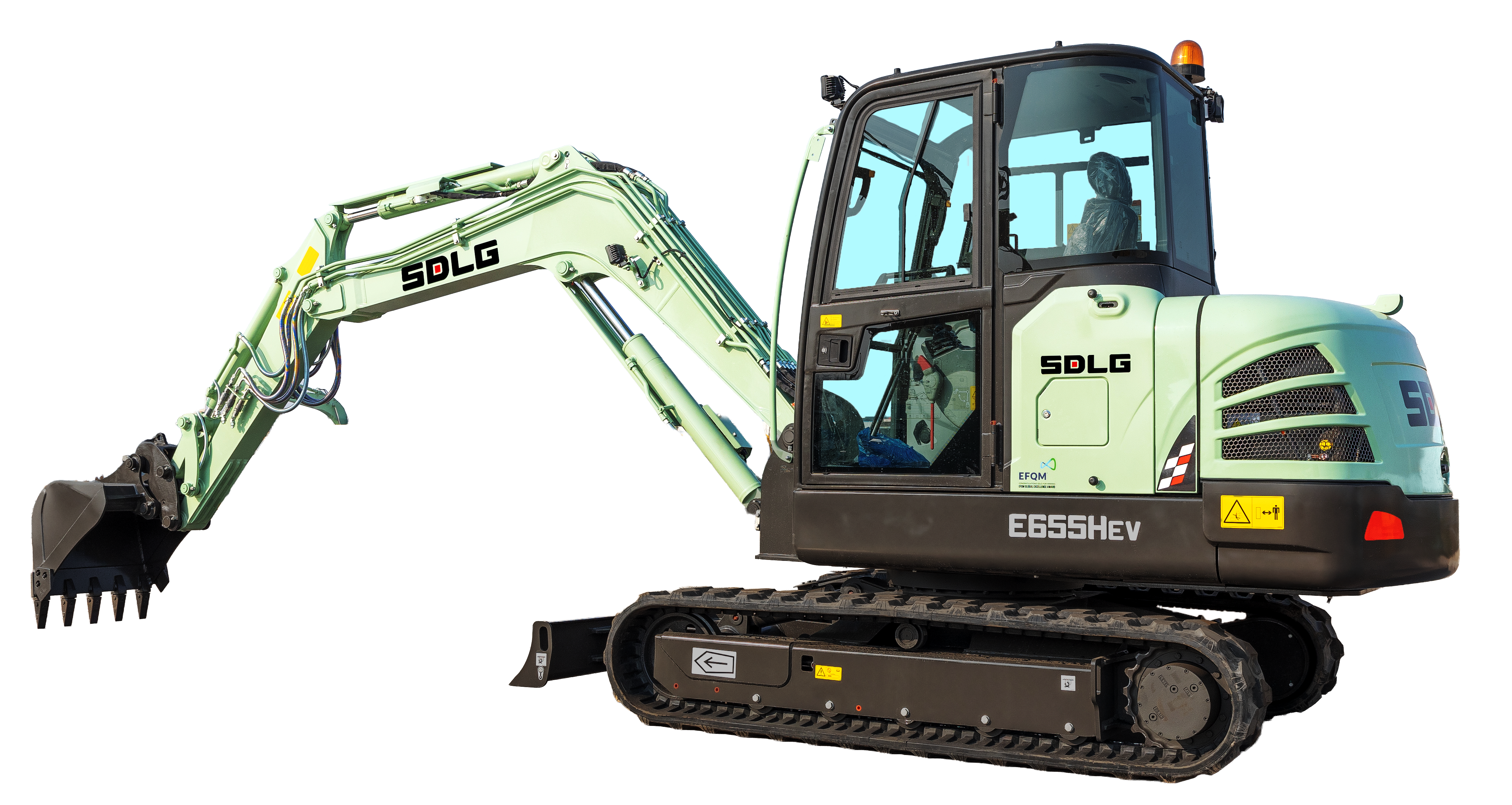

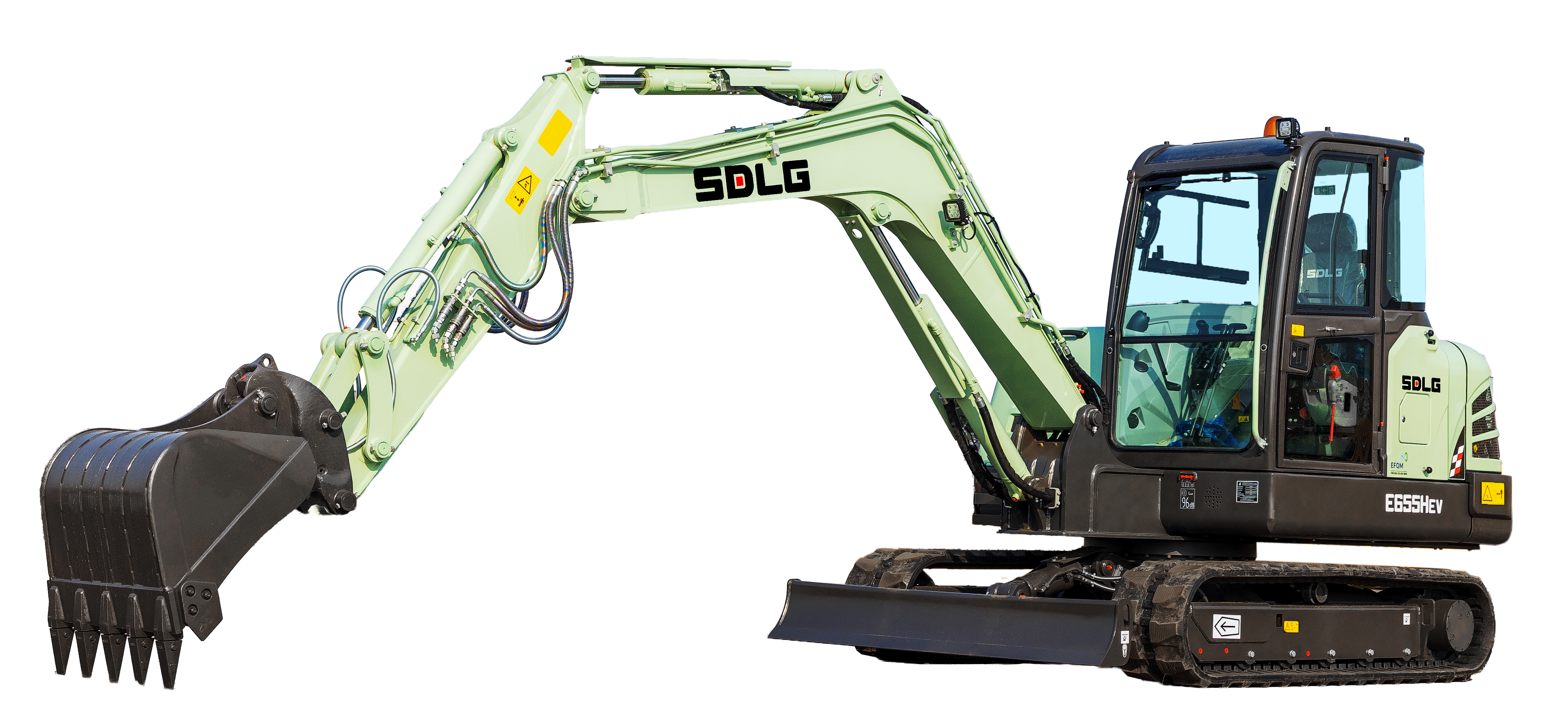

Electrified Machinery E655HEV
Operating weight(kg)
Bucket capacity(m³)
Rated power,kW (hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1.SDLG self-developed controller can realize real-time communication for multiple components, monitor the
operation status of vehicle, manage and optimize the power distribution, improve safety level and endurance.
2.The lithium iron phosphate battery with high safety performance and DC fast charging allows 1 hour charging
for 4-6 hours run time.
3.7-inch touch screen to display the battery level and power, compatible with touch and keypad, integrated with
data display of each module.
4.Intelligent heat dissipation management system, independent fan control, built-in environment, motor,
electric control temperature online monitoring system, intelligent fan speed scheduling, high efficiency and
energy saving.
5.Equipped with redundancy detection, insulation monitoring, high-voltage interlocking, charging safety
detection and other functions, IP67 high flame retardant and electrical components are also used to ensure
the electrical safety.
operation status of vehicle, manage and optimize the power distribution, improve safety level and endurance.
2.The lithium iron phosphate battery with high safety performance and DC fast charging allows 1 hour charging
for 4-6 hours run time.
3.7-inch touch screen to display the battery level and power, compatible with touch and keypad, integrated with
data display of each module.
4.Intelligent heat dissipation management system, independent fan control, built-in environment, motor,
electric control temperature online monitoring system, intelligent fan speed scheduling, high efficiency and
energy saving.
5.Equipped with redundancy detection, insulation monitoring, high-voltage interlocking, charging safety
detection and other functions, IP67 high flame retardant and electrical components are also used to ensure
the electrical safety.
Technical Parameter
| Operating weight(kg) | 6,050 (13,338) |
| Rated voltage,V | 521.64 |
| Bucket capacity(m³) | 0.21 (0.28) |
| Battery rated capacity,kWh | 90 |
| Average runtime,h | 4-6 |
| Charging hour,h | 1 |
| Pumps capacity,L/min (gal/min) | 126（33.3) |
| Main relief set pressure,bar(psi) | 215 (3,118) |
| Max. digging force of bucket,kN(lbf) | 45 (10,116) |
| Max. digging force of arm,kN(lbf) | 27.5 |
| Rated power,kW (hp) | 34 (46) |
| Travel low speed,km/h(mi/h) | 2.4(1.5) |
| Travel high speed,km/h(mi/h) | 4.8 (3) |
| Gradeability,° | 20 |
| Swing speed,r/min | 11 |
| Ground pressure,kPa(psi) | 34 (4.9) |
| Boom length,mm(ft in) | 3,030 (9' 11.3") |
| Arm length,mm(ft in) | 1,540 (5' 0.6") |
| Overall shipping size (L * W * H),mm(ft in) | 6,165 (20' 2.7")*1,980 (6' 6")*2,557(8' 4.7") |
| A Max. digging reach,mm(ft in) | 6,125 (20' 1.1") |
| B Max. digging reach on ground,mm(ft in) | 6,000 (19' 8.2") |
| C Max. cutting height,mm(ft in) | 5,818 (19'1.1") |
| D Max. dumping height,mm(ft in) | 4,095 (13' 5.2") |
| E Max. digging depth,mm(ft in) | 3,862 (12' 8") |
| F Max. digging depth (horizontal 8 ft),mm(ft in) | 3,423 (11' 2.3") |
| G Max. vertical wall digging depth,mm(ft in) | 2,725 (8' 11.3") |
| I Tail swing radius,mm(ft in) | 1,820 (5' 11.7") |
| J Min. front swing radius,mm(ft in) | 2,340 (7' 8.1") |
| K Undercarriage length,mm(ft in) | 2,500 (8' 2.4") |
| M Track width,mm(ft in) | 400(15.7") |
