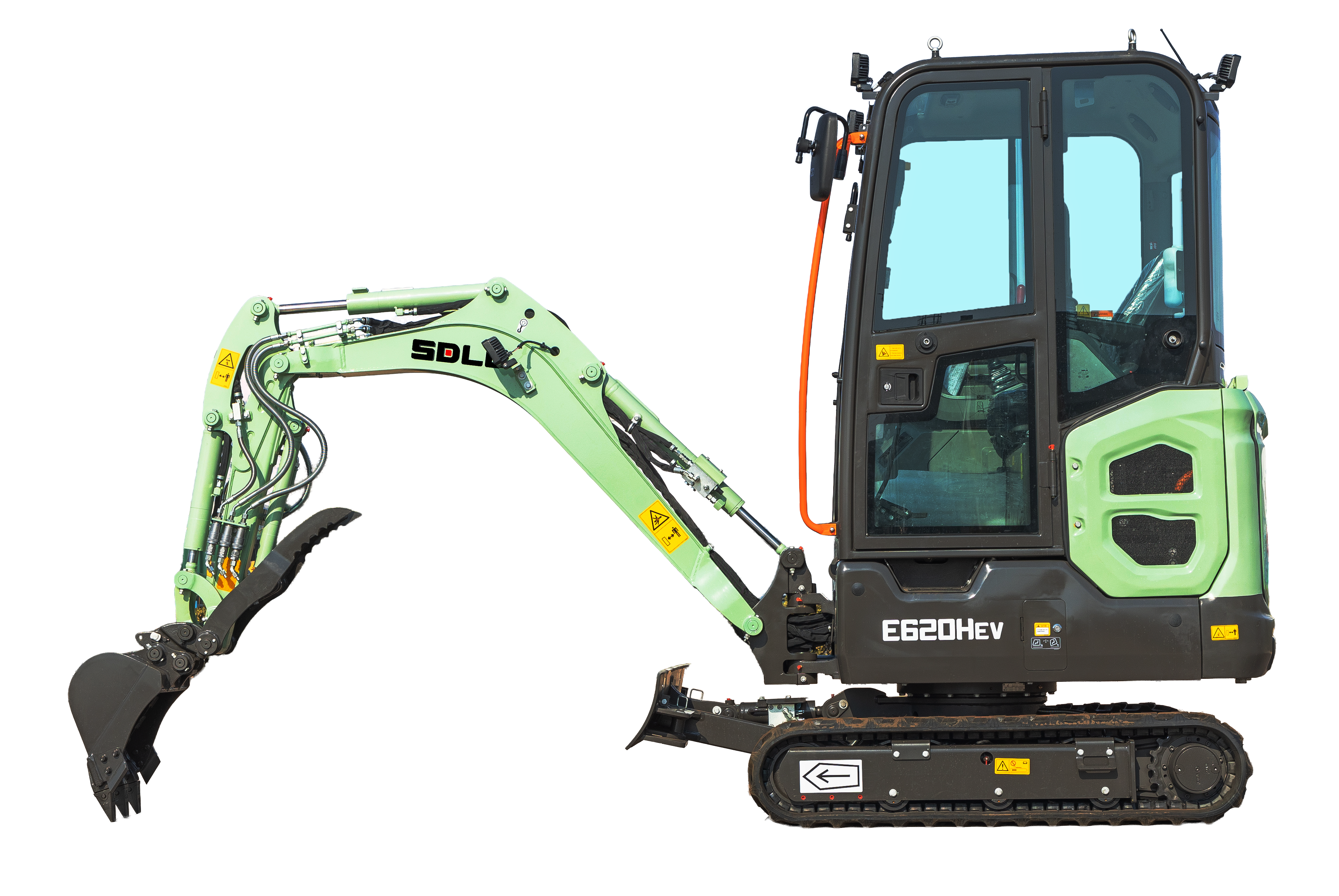

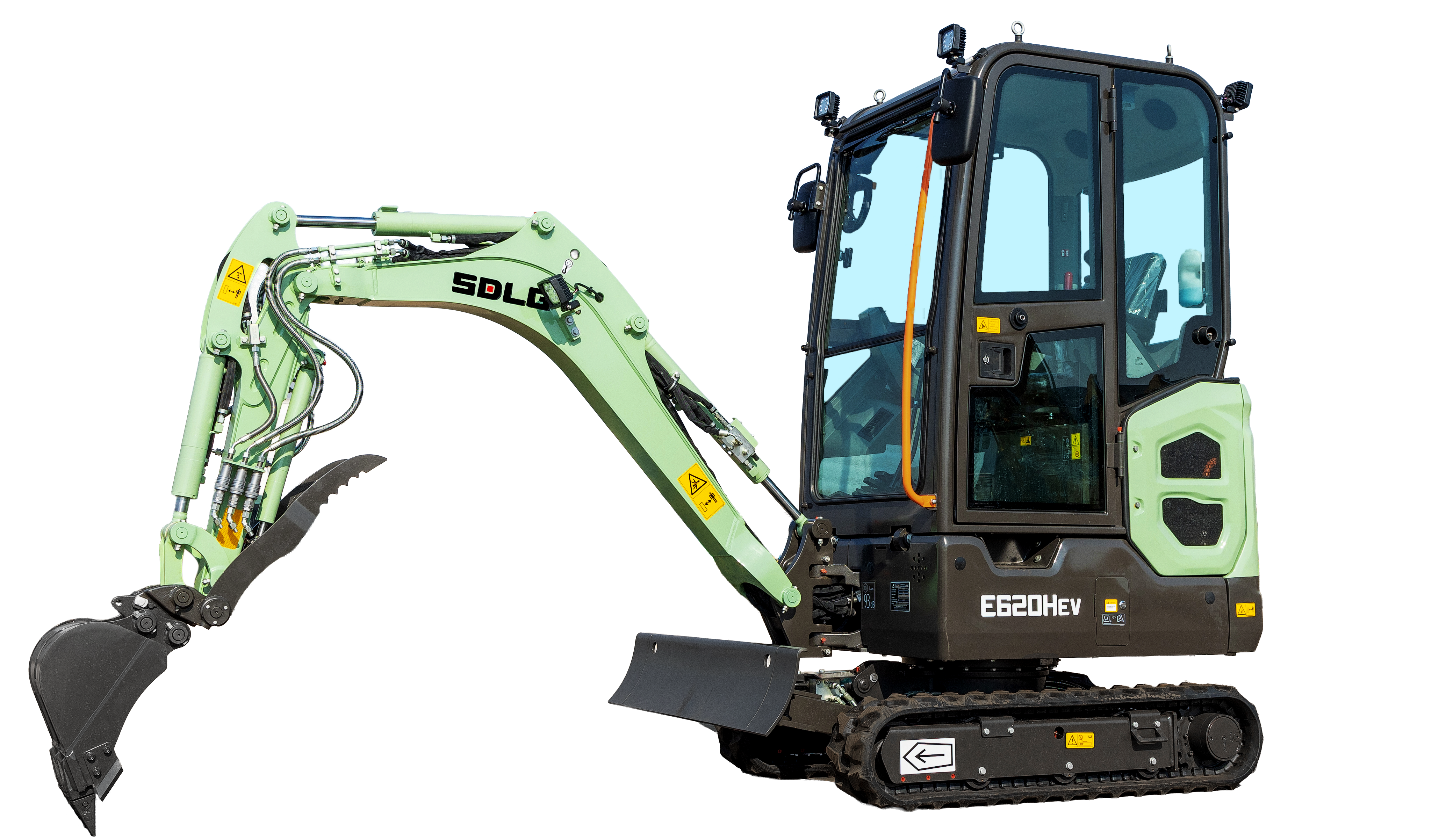

Electrified Machinery E620HEV
Operating weight(kg)
Bucket capacity(m³)
Rated power,kW (hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1.Equipped with reliable power battery packs, offering strong power, zero emissions, and low noise.
2.Maintenance-free battery allows 1hours charging for 4-6 hours run time.
3.7-inch touch screen to display the battery level and power, compatible with touch and keypad, integrated with data display of each module.
4.The independent intelligent battery water cooling unit can automatically adjust the battery temperature during charging and discharging to make the battery temperature work within the optimal temperature range.
5.The cab can be lifted with a large lifting angle to facilitate component maintenance.
6.Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
2.Maintenance-free battery allows 1hours charging for 4-6 hours run time.
3.7-inch touch screen to display the battery level and power, compatible with touch and keypad, integrated with data display of each module.
4.The independent intelligent battery water cooling unit can automatically adjust the battery temperature during charging and discharging to make the battery temperature work within the optimal temperature range.
5.The cab can be lifted with a large lifting angle to facilitate component maintenance.
6.Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
Technical Parameter
| Operating weight(kg) | 2,350 (5,181) |
| Rated voltage,V | 358.4 |
| Bucket capacity(m³) | 0.04 (0.05) |
| Battery rated capacity,kWh | 24 |
| Average runtime,h | 4-6 |
| Charging hour,h | 1 |
| Pumps capacity,L/min (gal/min) | 52 (13.8) |
| Main relief set pressure,bar(psi) | 240 (3,480) |
| Max. digging force of bucket,kN(lbf) | 16.5 (3,709) |
| Max. digging force of arm,kN(lbf) | 10 |
| Rated power,kW (hp) | 9.2 |
| Travel low speed,km/h(mi/h) | 2(1.2) |
| Travel high speed,km/h(mi/h) | 4 (2.5) |
| Gradeability,° | 25 |
| Swing speed,r/min | 9.2 |
| Ground pressure,kPa(psi) | 37 (5.4) |
| Boom length,mm(ft in) | 1,830 (6') |
| Arm length,mm(ft in) | 965 (3' 2") |
| Overall shipping size (L * W * H),mm(ft in) | 3,805 (12' 5.8")*980 (3' 2.6")*2,635 (8' 7.7") |
| A Max. digging reach,mm(ft in) | 3,975 (13' 0.5") |
| B Max. digging reach on ground,mm(ft in) | 3,915 (12' 10.1") |
| C Max. cutting height,mm(ft in) | 3,510 (11'6.2") |
| D Max. dumping height,mm(ft in) | 2,460 (8' 0.9") |
| E Max. digging depth,mm(ft in) | 2,305 (7' 6.7") |
| F Max. digging depth (horizontal 8 ft),mm(ft in) | 1,575 (5' 2") |
| G Max. vertical wall digging depth,mm(ft in) | 1,740 (5' 8.5") |
| I Tail swing radius,mm(ft in) | 980 (3' 2.6") |
| J Min. front swing radius,mm(ft in) | 1,670 (5' 5.8") |
| K Undercarriage length,mm(ft in) | 1,585 (5' 2.4") |
| M Track width,mm(ft in) | 230 (9") |
