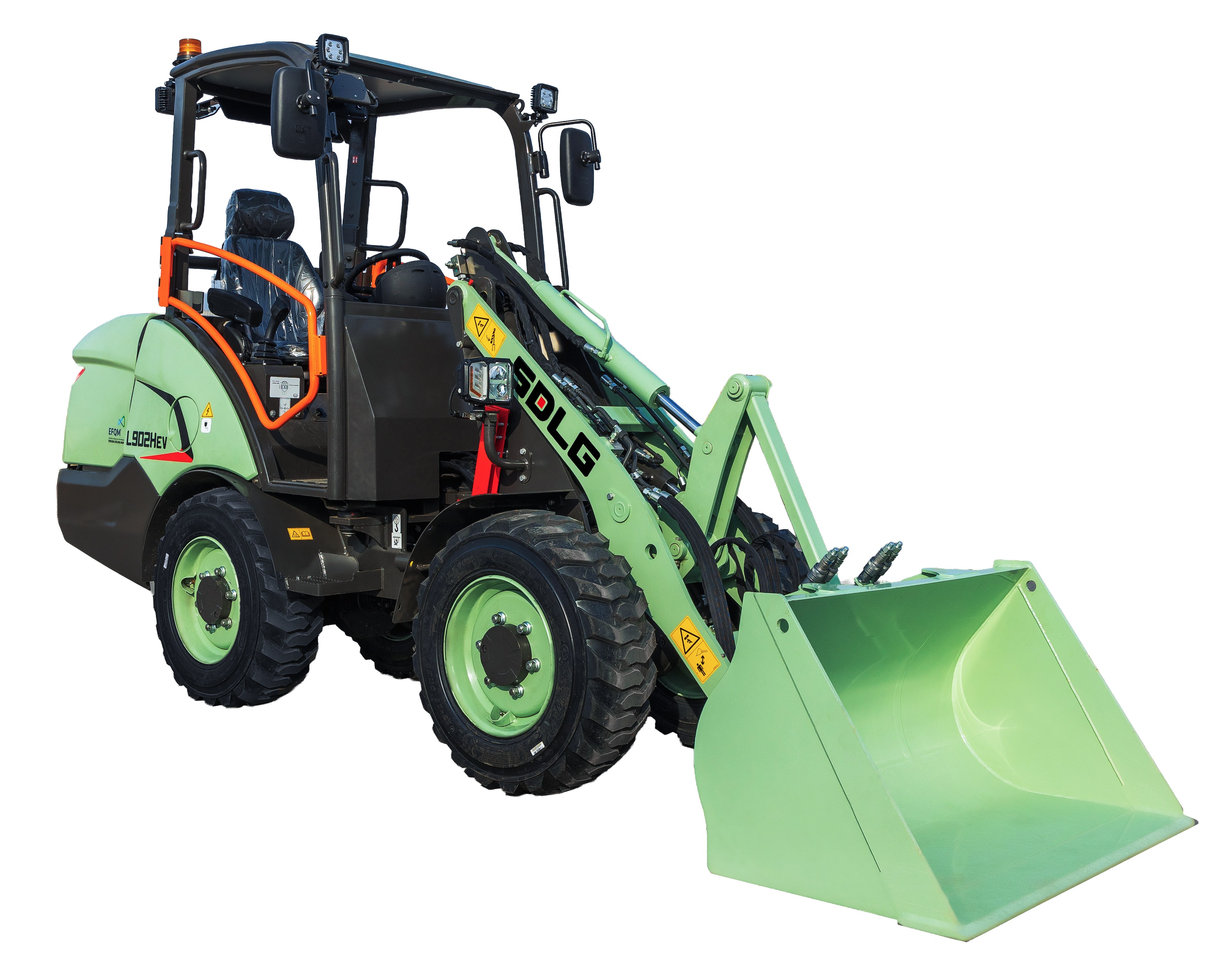

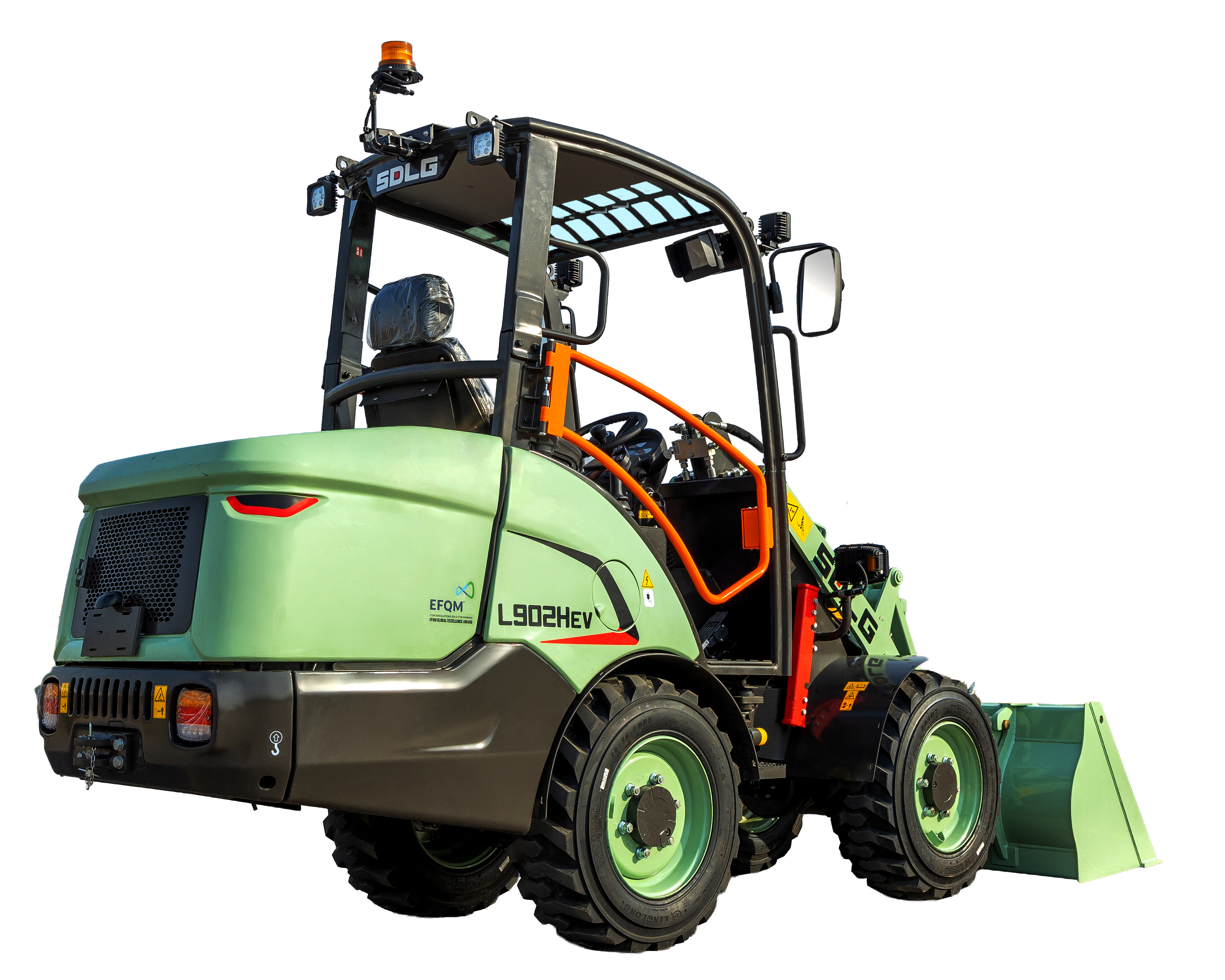

Electrified Machinery L902HEV
Standard bucket capacity,m³ (yd³)
Rated load,kg (lbs)
Operating weight,kg (lbs)
Rated power,kW(hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1.SDLG exclusive electronic control system is adopted, with reasonable performance matching, comfortable operation
and high work efficiency.
2.Equipped with 24kWh battery capacity for long work runtime and CCS2 charging port as standard, which can be
used for DC fast charging and on-board AC chargers.
3.SDLG Intelligent Temperature Management System to keep the working temperature at its optimum.
4.Equipped with an electronic control single handle, the operation is simple and convenient, efficient and comfortable.
5.Integrated keypad control, HCI; Battery level, power, etc. are displayed in real time.
and high work efficiency.
2.Equipped with 24kWh battery capacity for long work runtime and CCS2 charging port as standard, which can be
used for DC fast charging and on-board AC chargers.
3.SDLG Intelligent Temperature Management System to keep the working temperature at its optimum.
4.Equipped with an electronic control single handle, the operation is simple and convenient, efficient and comfortable.
5.Integrated keypad control, HCI; Battery level, power, etc. are displayed in real time.
Technical Parameter
| Standard bucket capacity,m³ (yd³) | 0.35 (0.46) |
| Rated load,kg (lbs) | 600 (1,323) |
| Operating weight,kg (lbs) | 2660 (5,864) |
| Battery type | LFP |
| Battery capacity,kWh | 24 |
| Voltage,V | 358.4 |
| Indicative runtime (depending on application),h | 4-6 |
| Rated power,kW(hp) | 17.2 (23) |
| Motor type | PMSM |
| Speed,km/h(mph) | 0-20(0-12.4) |
| Breakout force,kN(lbf) | 17(3,822) |
| Overall shipping size (L • W • H)，mm (ft in) | 4,410 (14' 5.6")×1,337(4'4.64")×2,282 (7' 5.8") |
| A Wheelbase ,mm (ft in) | 1,470 (4' 9.9") |
| Tire size | 10-16.5 |
| B Ground clearance ,mm (ft in) | 220 (8.6") |
| C Reach at max. height ,mm (ft in) | 365 (2.4") |
| Dumping angle ,° | 45 |
| E Height at bucket pin ,mm (ft in) | 2,728 (8' 11.4") |
| F Dumping height ,mm (ft in) | 1,910 (6' 3.2") |
| G Bucket rollback at ground level | 47 |
| I Wheel tread ,mm (ft in) | 946 (3' 1.24") |
| J Articulation angle ,° | 43 |
| K Turning radius at over bucket,mm (ft in) | 2934 |
| M Turning radius at inside of tires,mm (ft in) | 1340 |
