Standard bucket capacity ,m³ (yd³)
Operating weight,Kg (lbs)
Rated power,kW (hp)
Utilities
Heavy infrastructure
Quarries & Aggregates

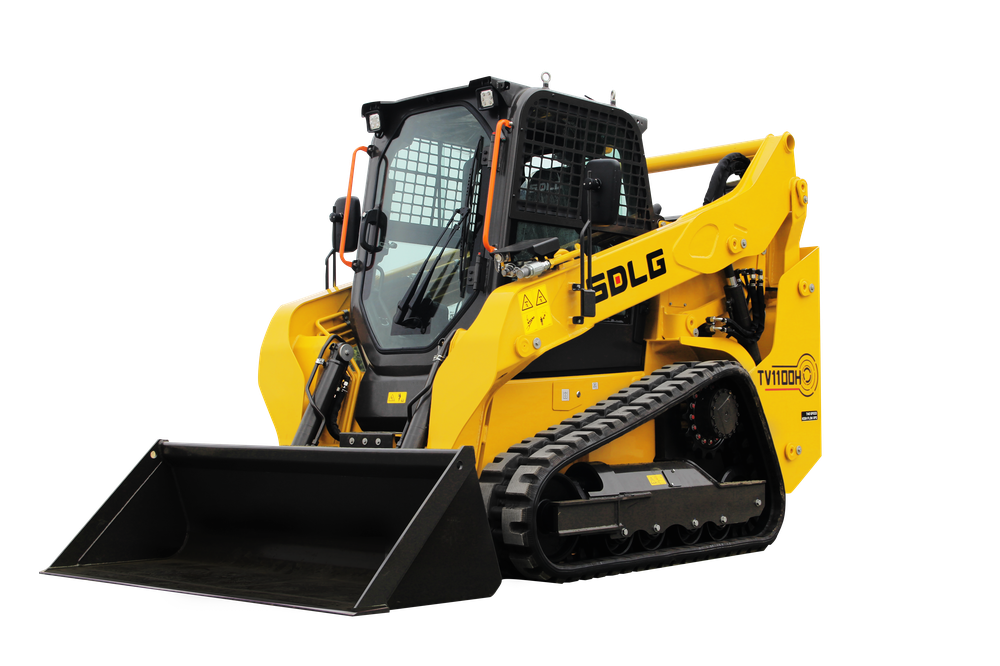

1.The TV1100H is equipped with a highly reliable Yanmar engine providing 72 horsepower for optimal working performance.
2.Within the one-piece sealed cab you will find an air suspension seat that includes heat and ventilation, keyless start, and integrated keypads, this unit also provides a full-color 7-in touch screen with an integrated rearview camera, Radio, Bluetooth, and hand-free phone providing a luxury experience.
3.Two-speed travel, ISO and H quick change button, reversing fan, and cruise control are all standard features.
4.This unit has High flow is a standard feature, it also offers the operator the ability to immediately adjust the pressure and flow on the 7” touchscreen to accommodate a wide range of attachments.
5.Daily maintenance service points can be easily achieved through the tilt-up cab and rear door.
| Standard bucket capacity ,m³ (yd³) | 0.45 (0.59) |
| Rated operating capacity-35% tipping load,Kg (lbs) | 1,180 (2,601) |
| Operating weight,Kg (lbs) | 4,550 (10,031) |
| Engine model | Yanmar 4TNV98CT |
| Rated power,kW (hp) | 53.7 (72) |
| Rated engine speed,rpm | 2500 |
| Displacement,ml (in³) | 3,300 (201.4) |
| Low speed,km/h (mi/h) | 9 (5.6) |
| High speed,km/h (mi/h) | 13. 7(8.5) |
| Breakout force ,kN (lbf) | 30 (6,744) |
| Standard flow rate,L/min (gal/min) | 75 (19.8) |
| High flow rate,L/min (gal/min) | 113 (29.9) |
| Main relief set pressure,bar (psi) | 245 (3,553) |
| Track Width,mm (in) | 400 (15.7) |
| Ground pressure,kPa (psi) | 33 (4.8) |
| Fuel tank,L (gal) | 95 (25.1) |
| A Length of track on ground,mm (ft in) | 1,435 (4'8.5") |
| B Length without bucket,mm (ft in) | 2,770 (9'1.1") |
| C Reach at max. lift and dump,mm (ft in) | 880 (2'10.6") |
| D Dump height at max. lift,mm (ft in) | 2,435 (7'11.9") |
| E Bucket hinge pin height at max. lift,mm (ft in) | 3,120 (10'2.8") |
| F Max. overall height,mm (ft in) | 3,980 (13'0.7") |
| H Height to top of cab,mm (ft in) | 2,080 (6'9.9") |
| I Departure angle，° | 29 |
| G Ground clearance,mm (ft in) | 225 (8.9") |
| L Overall length,mm (ft in) | 3,475 (11'4.8") |
| M Width without bucket,mm (ft in) | 1,785 (5'10.3") |
| N Track gauge,mm (ft in) | 1,385 (4'6.5") |
| O Turning radius from center – Coupler,mm (ft in) | 1,290 (4'2.8") |
| P Turning radius from center – Bucket,mm (ft in) | 2,100 (6'10.7) |
| W Bucket width,mm (ft in) | 1,880 (6'2") |
| X Bucket rollback angle (ground level),° | 30 |
| Y Max. dump angle，° | 40 |
| Z Rack back angle at maximum Height，° | 94 |
