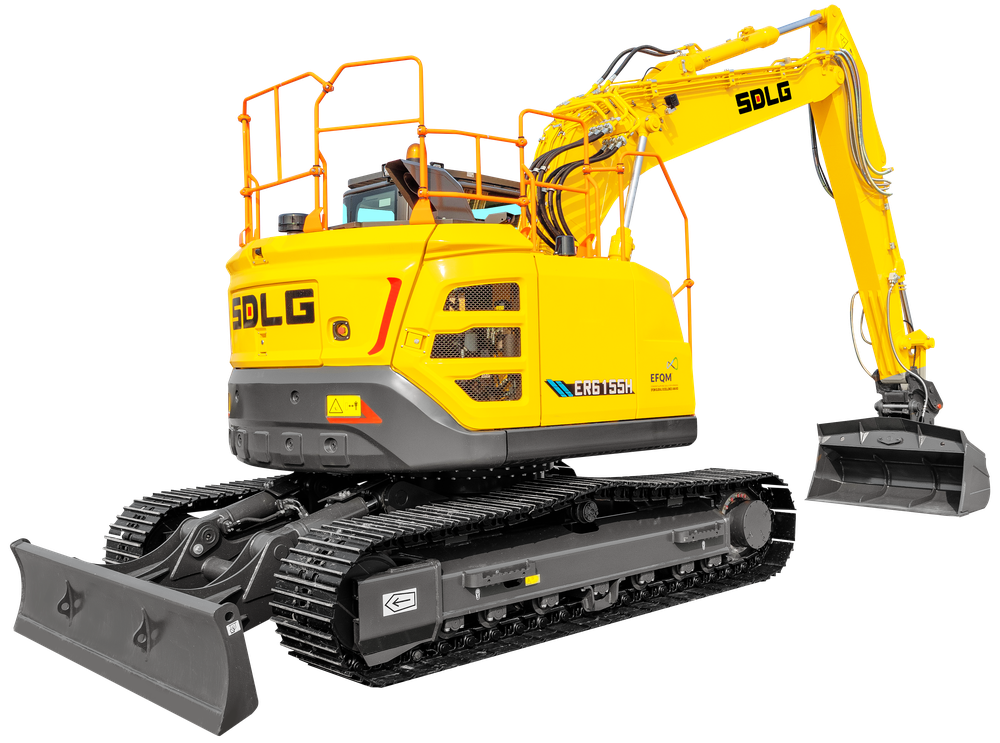

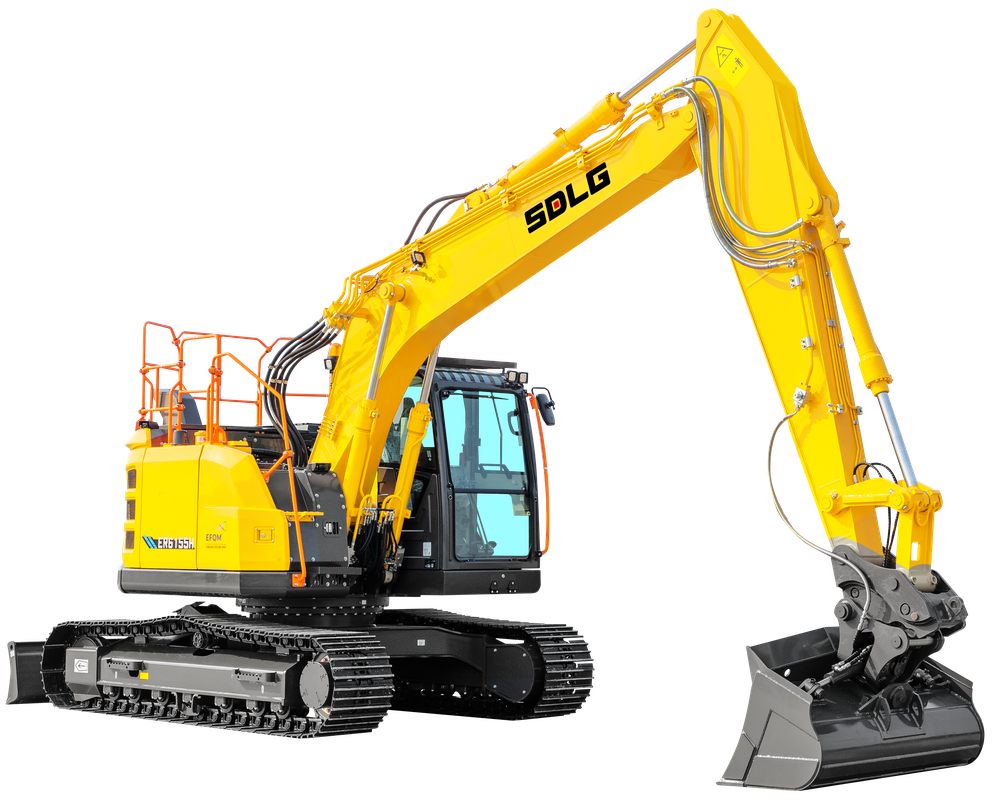

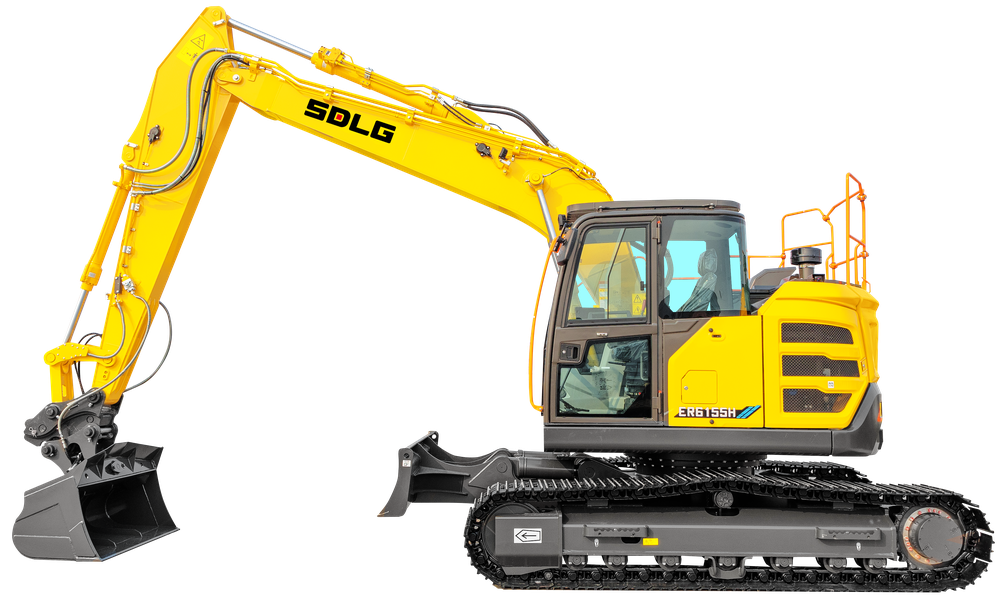

Excavator ER6155H
Operating weight,kg (lbs)
Rated power,kw (hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1.The ER6155H offers SDLG's exclusive electronic control system, which is easily customized to accommodate different applications and operating habits; offering various working modes for improving productivity and reducing fuel consumption.
2.Equipped with an anti-digging cab function and a boom tilt back speed limit function to prevent materials from spilling into the cab and ensure the cleanliness of the cab and the safety of the driver.
3.Perkins engine features passive regeneration technology, automatically removing the diesel particulates without unnecessary downtime.
4.The short swing radius allows safe and concise operation in narrow spaces.
5.Counterweight equipped with a rear side door, which is convenient for engine maintenance; DEF tank is located at a low position, and it can be filled while standing on the ground; Fuel pump is standard for easy refueling.
2.Equipped with an anti-digging cab function and a boom tilt back speed limit function to prevent materials from spilling into the cab and ensure the cleanliness of the cab and the safety of the driver.
3.Perkins engine features passive regeneration technology, automatically removing the diesel particulates without unnecessary downtime.
4.The short swing radius allows safe and concise operation in narrow spaces.
5.Counterweight equipped with a rear side door, which is convenient for engine maintenance; DEF tank is located at a low position, and it can be filled while standing on the ground; Fuel pump is standard for easy refueling.
Technical Parameter
| Operating weight,kg (lbs) | 15,200(33,510) |
| Engine model | Perkins 904J |
| Rated power,kw (hp) | 90(122) |
| Rated engine speed,rpm | 2400 |
| Displacement,ml (in³) | 3600(219.7) |
| Pump capacity,L/min (gal/min) | 2*130(2*34.3) |
| Main relief set pressure,bar (psi) | 355(5,148) |
| Max. digging force of bucket,kN (lbf) | 93.9(21,109) |
| Max. digging force of arm,kN (lbf) | 65(14,612) |
| Travel low speed,km/h (mi/h) | 3.5(2.2) |
| Travel high speed,km/h (mi/h) | 4.7(2.9) |
| Gradeability,° | 35 |
| Swing speed,r/min | 11 |
| Ground pressure,kPa (psi) | 45.3(6.6) |
| Fuel tank,L (gal) | 240(63.4) |
| Boom length,mm (ft in) | 4,600(15'1.1") |
| Arm length,mm (ft in) | 2,500(8'2.4") |
| Bucket capacity,m³ (yd³) | 0.55(0.72) |
| Overall shipping size,mm (ft in) | 7,480(24'6.5")*2,500(8'2.4")*2,745(9') |
| A Max. digging reach,mm (ft in) | 8,430(27'7.9") |
| B Max. digging reach on ground,mm (ft in) | 8,280(27'2") |
| C Max. cutting height,mm (ft in) | 9,055(29'8.5") |
| D Max. dumping height,mm (ft in) | 6,585(21'7.3") |
| E Max. digging depth,mm (ft in) | 5,190(17'0.3") |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 4,970(16'3.7") |
| G Max. vertical wall digging depth,mm (ft in) | 4,610(15'1.5") |
| I Tail swing radius,mm (ft in) | 1,490(4'20.7") |
| J Min. front swing radius,mm (ft in) | 2,240(7'4.2") |
| K Undercarriage length,mm (ft in) | 3,740(12'3.2") |
| M Track width,mm (ft in) | 500(1'7.7") |
