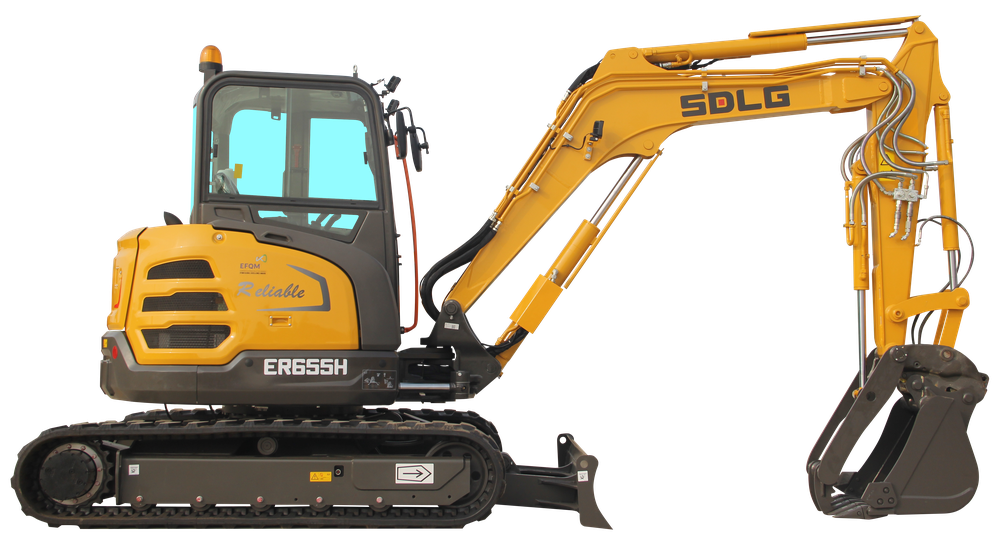

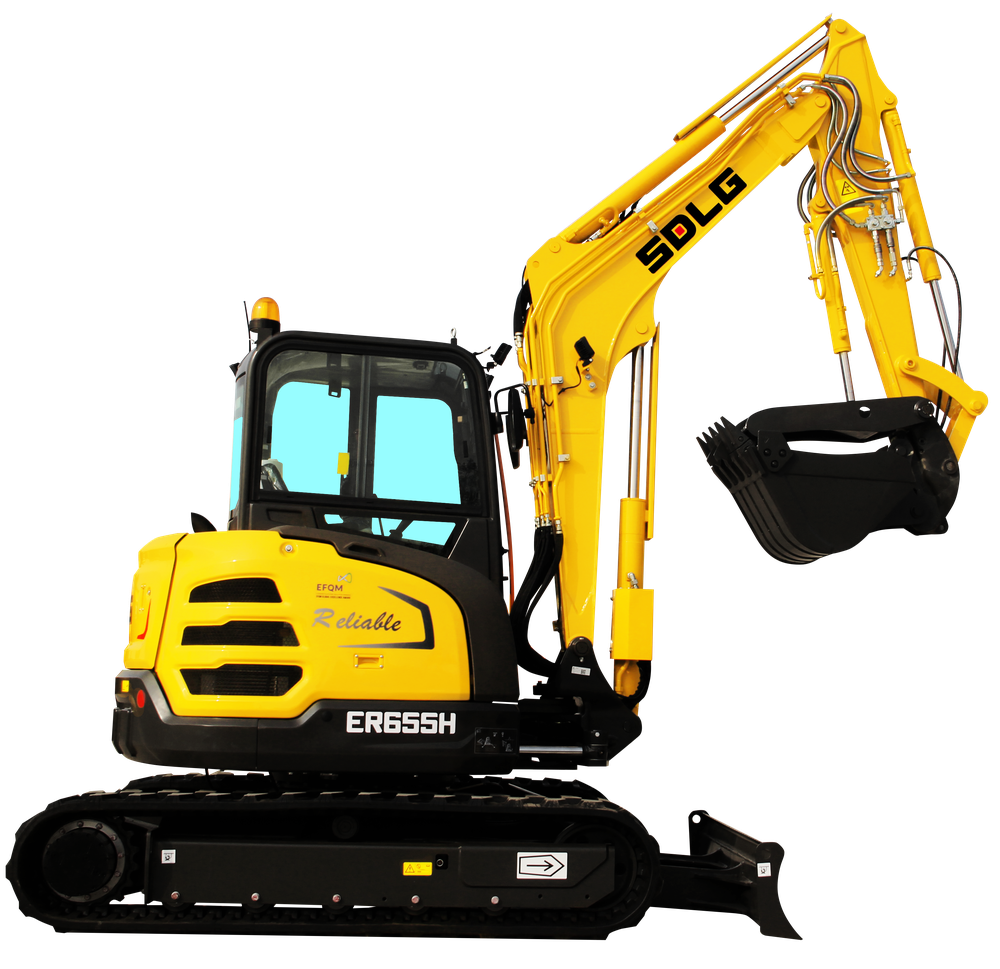

Excavator ER655H
Operating weight,kg (lbs)
Rated power,kw (hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1. The ER655H is equipped with a Yanmar engine designed to work seamlessly with the hydraulic
system, providing optimal break out force and lifting capacity.
2. Enhanced stability created by a reinforced X frame and an oversized track gauge.
3. New generation ROPS&TOP guard providing a comfortable and spacious operating environment, as
well as an excellent field of view improving the operating experience.
4. Standard unit offers a 12V outlet, USB port, radio, Bluetooth, and hands-free phone.
5. Thumb and hydraulic quick coupler are standard offering on this model.
6. Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
system, providing optimal break out force and lifting capacity.
2. Enhanced stability created by a reinforced X frame and an oversized track gauge.
3. New generation ROPS&TOP guard providing a comfortable and spacious operating environment, as
well as an excellent field of view improving the operating experience.
4. Standard unit offers a 12V outlet, USB port, radio, Bluetooth, and hands-free phone.
5. Thumb and hydraulic quick coupler are standard offering on this model.
6. Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
Technical Parameter
| Operating weight,kg (lbs) | 5,900(13,007) |
| Engine model | Yanmar 4TNV86CT |
| Rated power,kw (hp) | 35.5 (48) |
| Rated engine speed,rpm | 2400 |
| Displacement,ml (in³) | 2,091(127.6) |
| Pump capacity,L/min (gal/min) | 151.2(39.9) |
| Main relief set pressure,bar (psi) | 263(3814.5) |
| Travel low speed,km/h (mi/h) | 2.2(1.4) |
| Travel high speed,km/h (mi/h) | 4.4(2.7) |
| Gradeability,° | 30 |
| Max. digging force of bucket,kN (lbf) | 45(10,116) |
| Max. digging force of arm,kN (lbf) | 27.5(6,182) |
| Swing speed,r/min | 10 |
| Blade (width*height),mm (in) | 1,980(78")*380(15") |
| Ground pressure,kPa (psi) | 33.4(4.8) |
| Fuel tank,L (gal) | 65(17.2) |
| Boom length,mm (ft in) | 2,800(9'2") |
| Arm length,mm (ft in) | 1,540(5'0.6") |
| Bucket capacity,m³ (yd³) | 0.18(0.24) |
| A Max. digging reach,mm (ft in) | 6,043(19'10") |
| B Max. digging reach on ground,mm (ft in) | 5,910(19'5") |
| C Max. cutting height,mm (ft in) | 5,608(18'5") |
| D Max. dumping height,mm (ft in) | 3,876(12'8") |
| E Max. digging depth,mm (ft in) | 3,492(11'5") |
| F Max. digging depth (horizontal 8ft),mm (ft in) | 3,090(10'2") |
| G Max. vertical wall digging depth,mm (ft in) | 2,633(8'8") |
| H Overall shipping height,mm (ft in) | 2,545(8'4") |
| I Tail swing radius,mm (ft in) | 1,090(3'7") |
| J Min. front swing radius,mm (ft in) | 2,637(8'8") |
| K Undercarriage length,mm (ft in) | 2,500(8'2") |
| L Overall shipping length,mm (ft in) | 5,485(18') |
| M Track width,mm (ft in) | 400(1'4") |
| W Overall shipping width,mm (ft in) | 1,980(6'6") |
