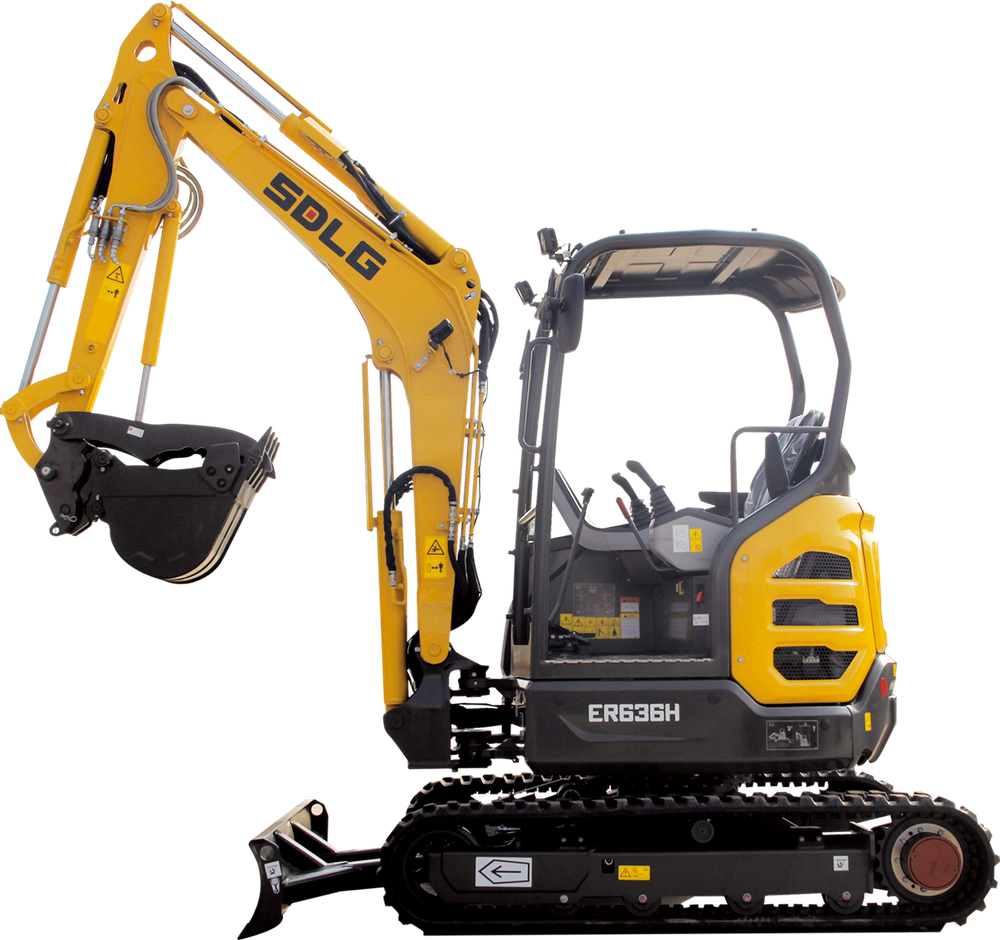

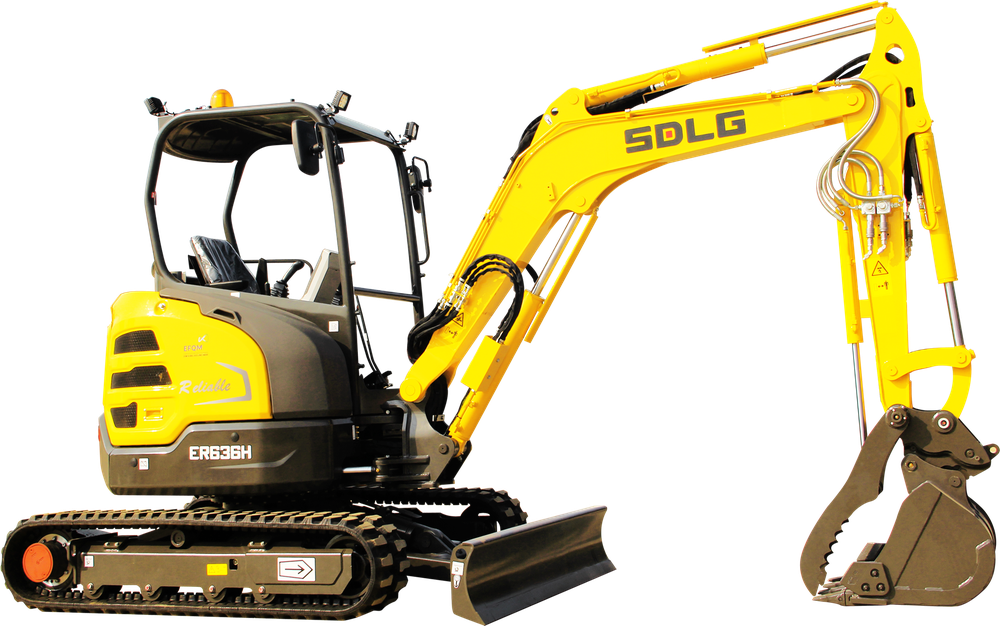

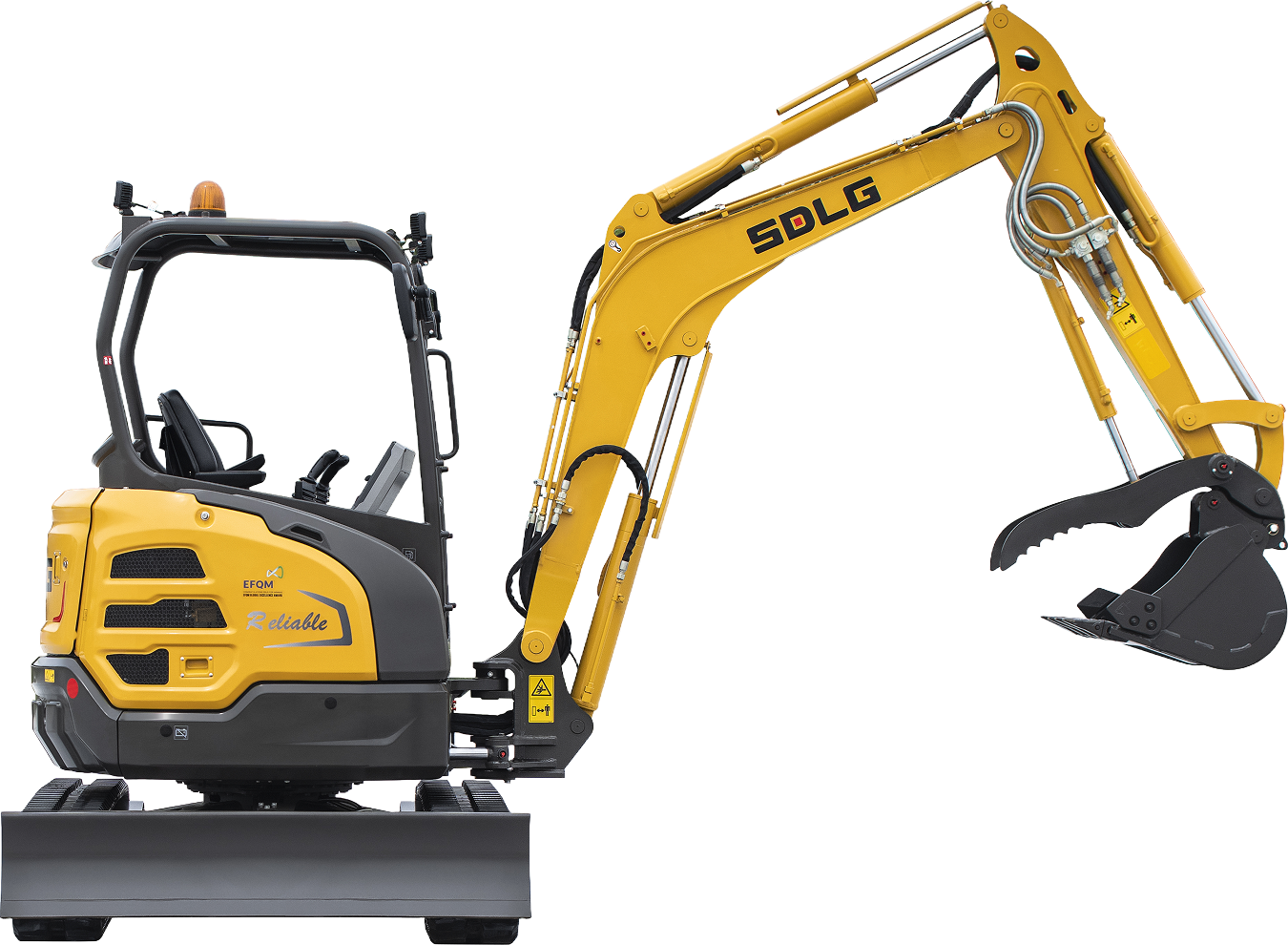

Excavator ER636H
Operating weight,kg (lbs)
Rated power,kw(hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features

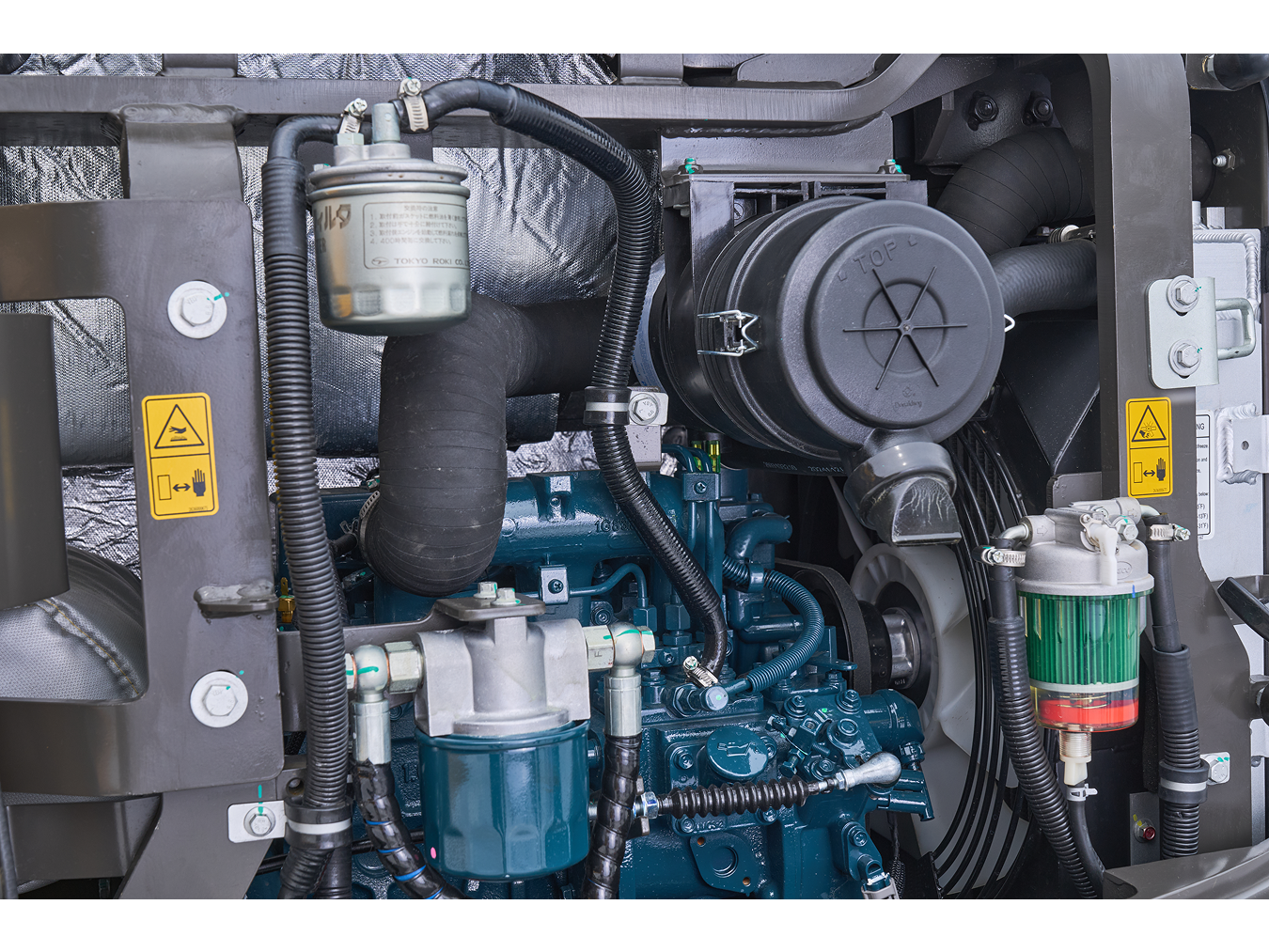

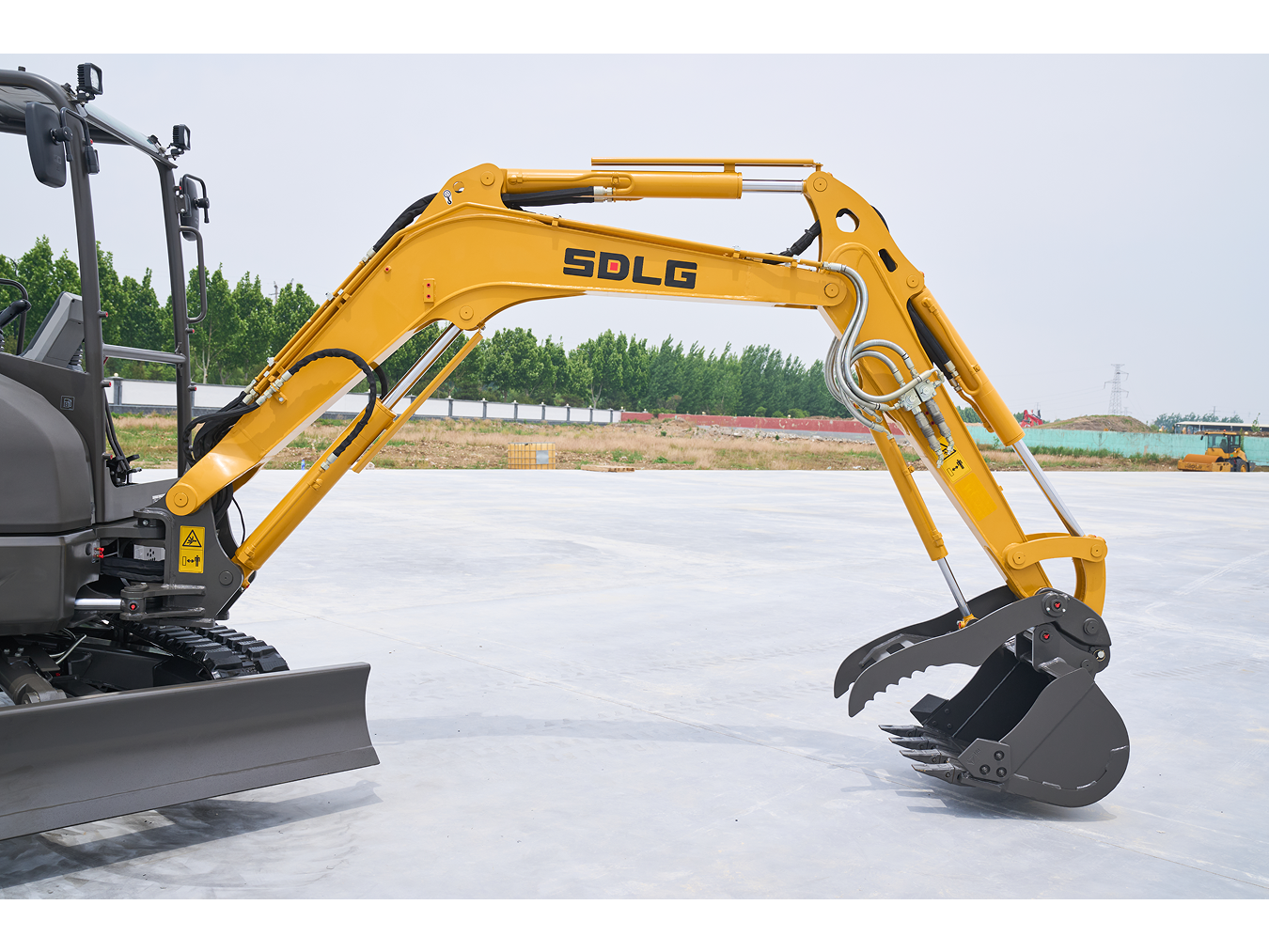

1. The ER636H offers a Kubota engine perfectly matched with the hydraulic system, providing optimal
break out force and lifting capacity.

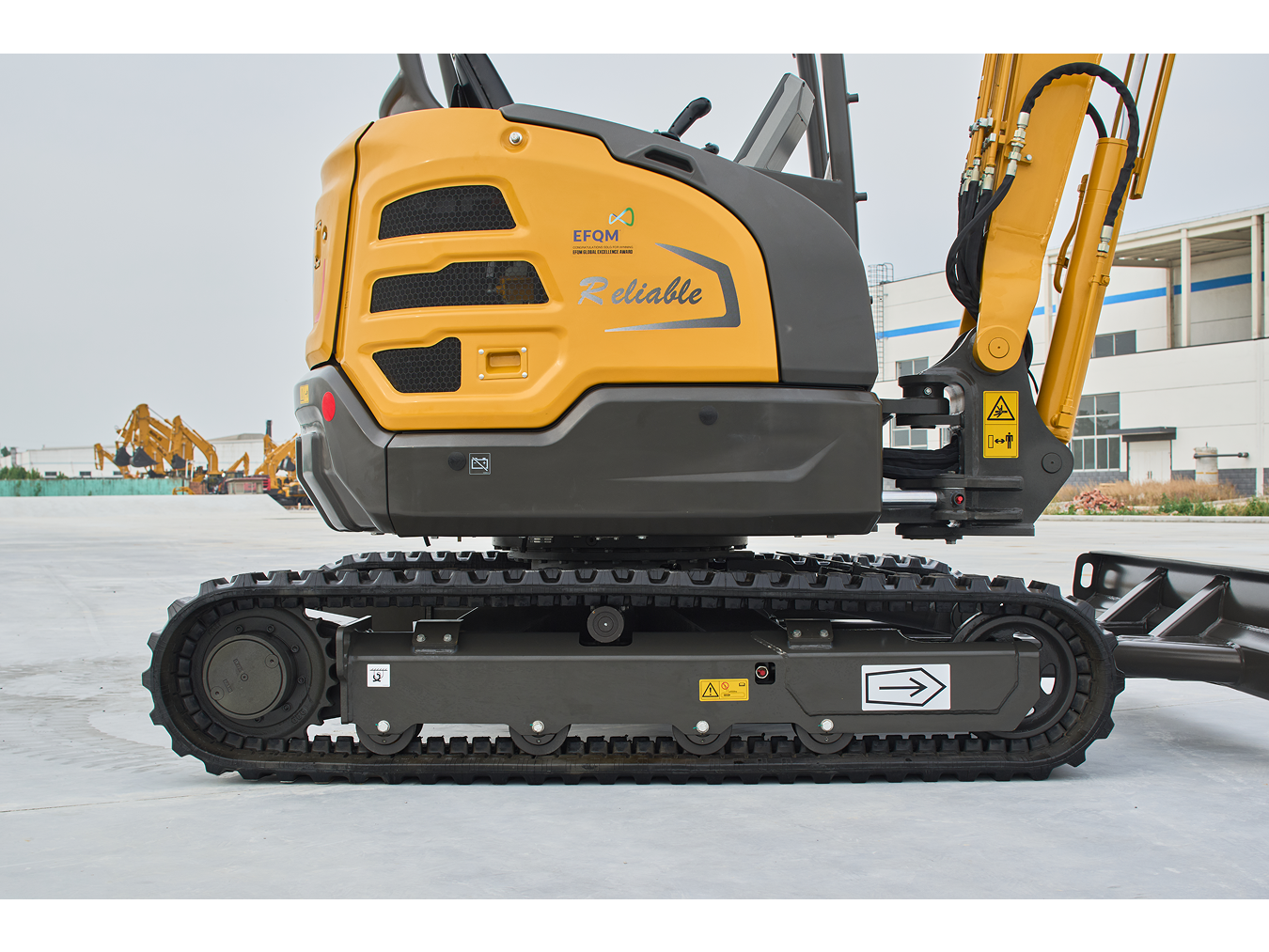

2. Optimized large-displacement travel motor with high traction force, offers a solution for various
complex working conditions.
3. Standard units offer X1/X3 pipelines, meeting a wide range of attachments.

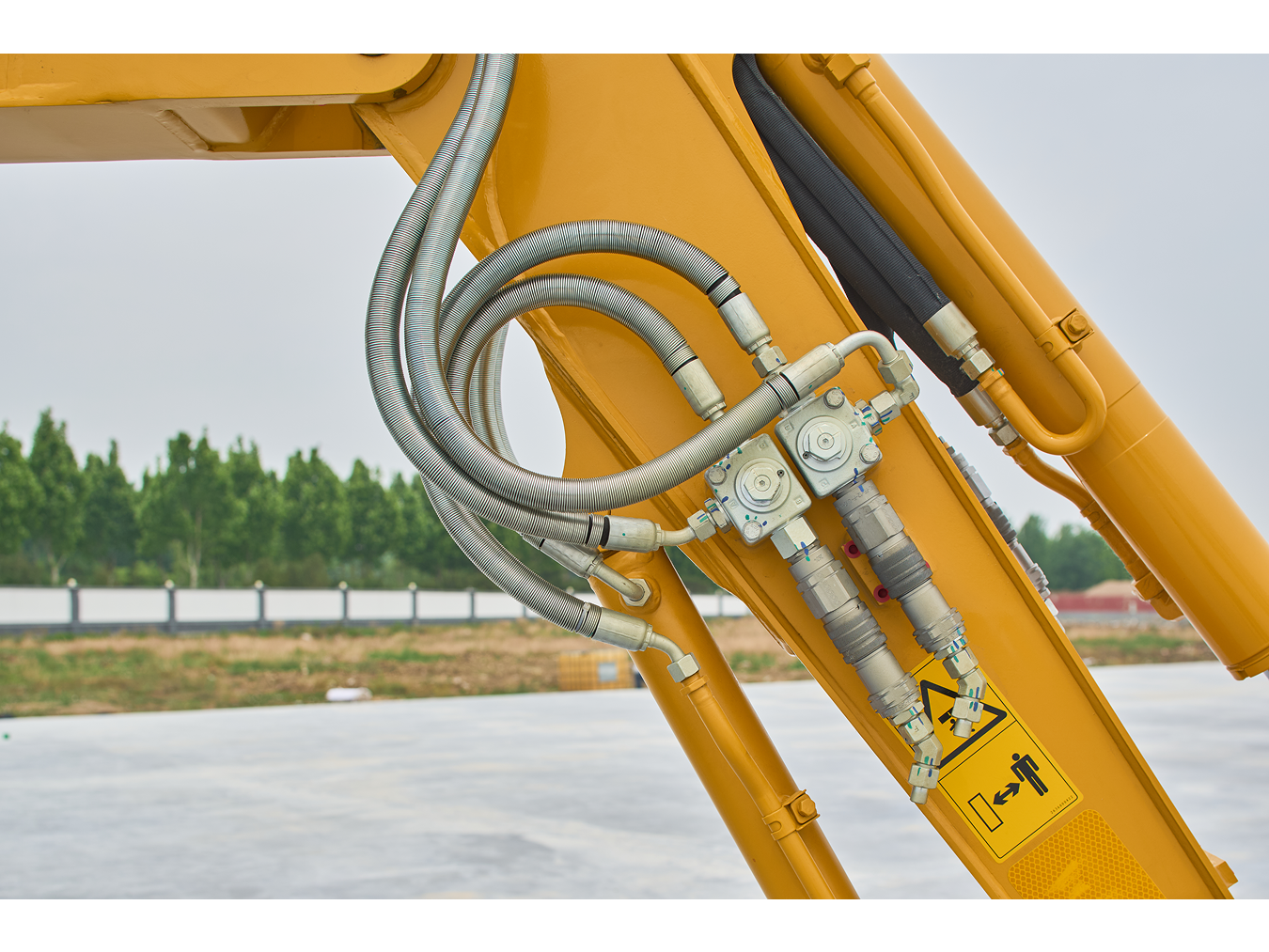

4. Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.

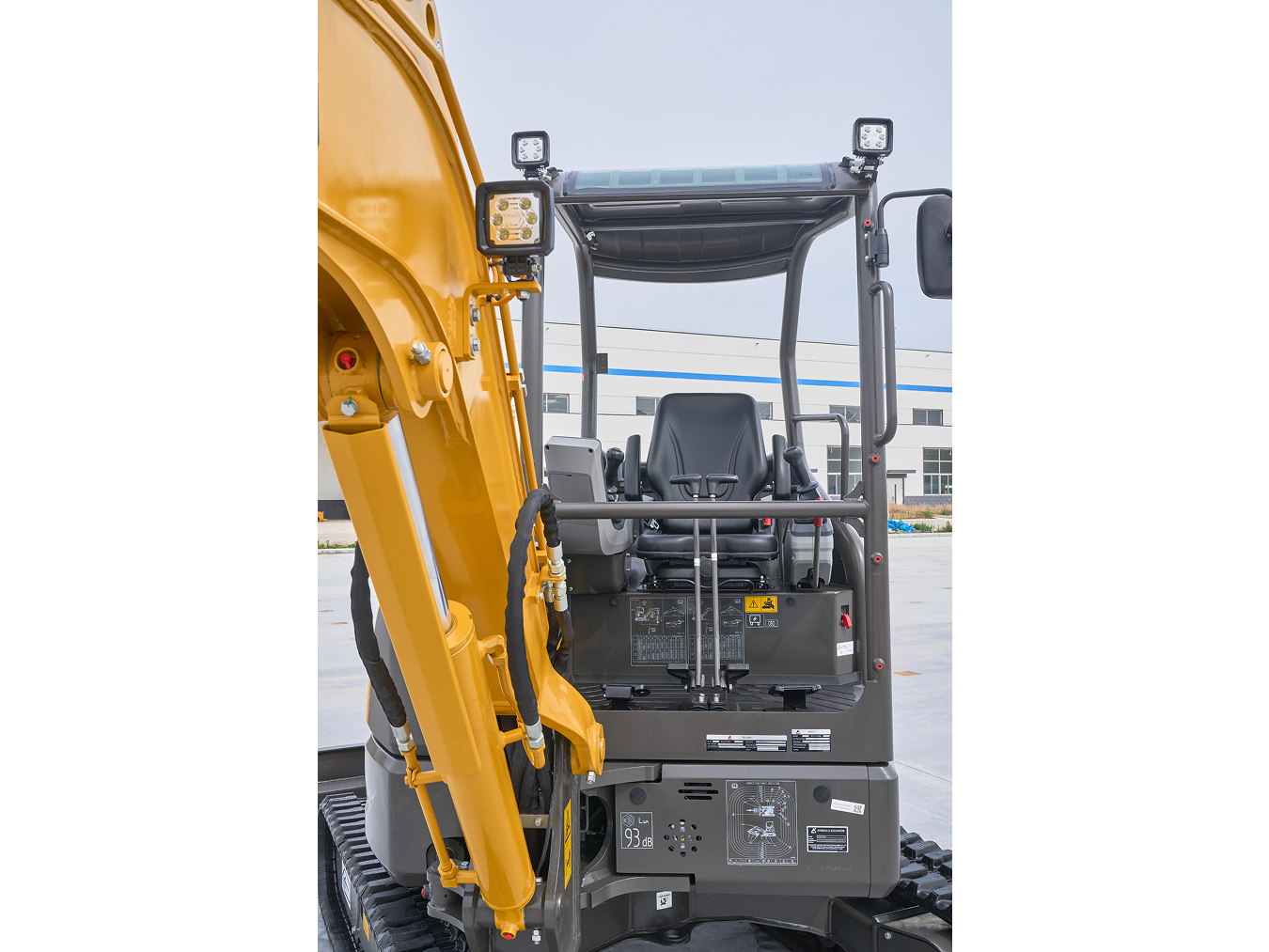

5. ROPS&TOP guard certified canopy with double rearview mirrors and three LED lights.

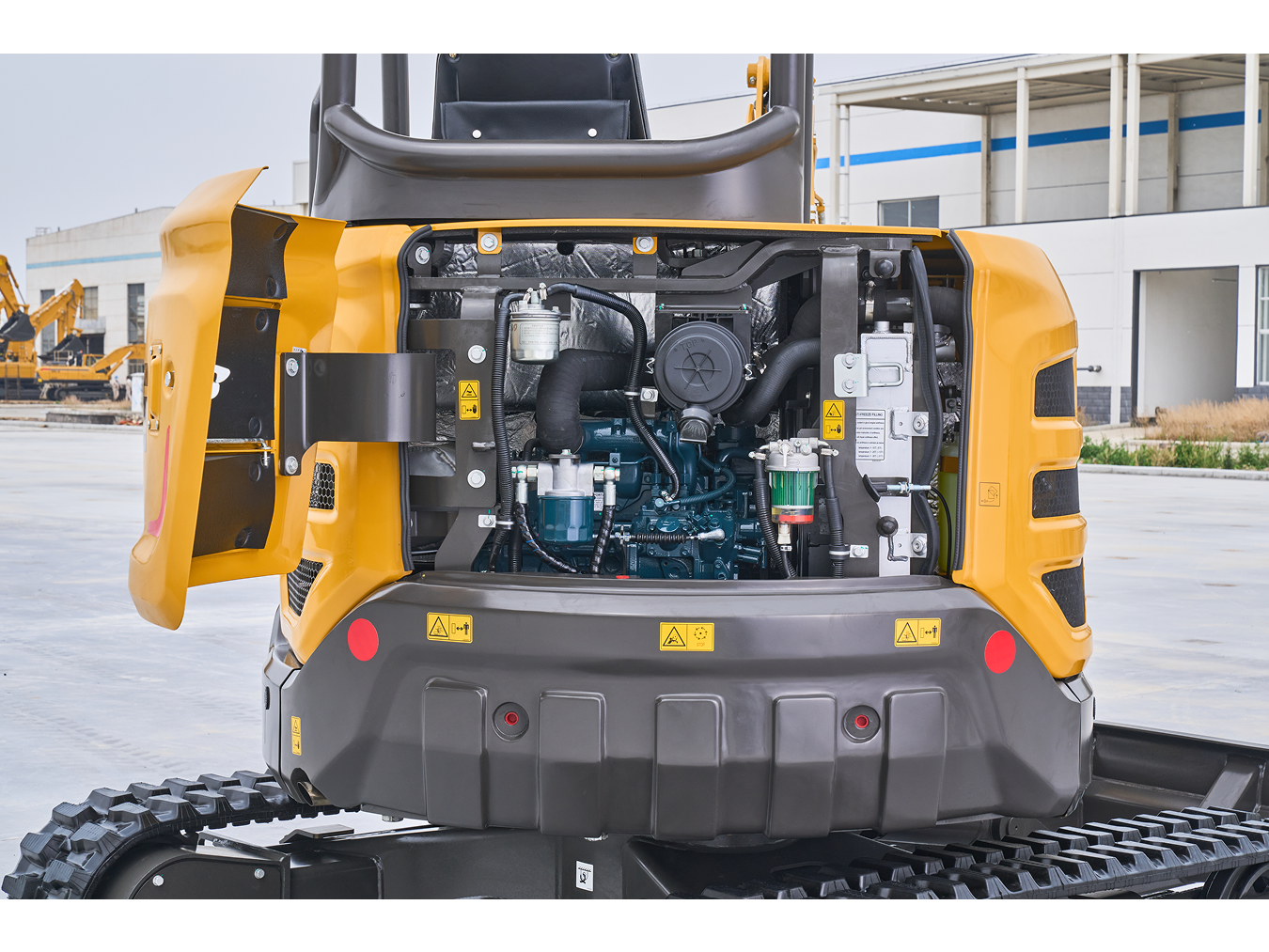

6. Filters are centrally located, providing easier maintenance.
break out force and lifting capacity.
2. Optimized large-displacement travel motor with high traction force, offers a solution for various
complex working conditions.
3. Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
4. Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
5. ROPS&TOP guard certified canopy with double rearview mirrors and three LED lights.
6. Filters are centrally located, providing easier maintenance.
Technical Parameter
| Operating weight,kg (lbs) | 3,800(8,377) |
| Engine model | Kubota D1703 |
| Rated power,kw(hp) | 18.2(24.4) |
| Rated engine speed,rpm | 2200 |
| Displacement,ml(in³) | 1,647(100.5) |
| Pump capacity,L/min(gal/min) | 88(23.3) |
| Main relief set pressure,bar(psi) | 240(3,480) |
| Max. digging force of bucket,kN(lbf) | 32(7,194) |
| Max. digging force of arm,kN(lbf) | 23.5(5,283) |
| Travel low speed,km/h(mi/h) | 2.1(1.3) |
| Travel high speed,km/h(mi/h) | 3.7(2.3) |
| Gradeability,° | 30 |
| Swing speed,r/min | 9 |
| Blade(width*height),mm(in) | 1700(66.9'')*350(14'') |
| Ground pressure,kPa(psi) | 33.5(4.9) |
| Fuel tank,L(gal) | 45(11.9) |
| Boom length,mm(ft in) | 2,450(8'0.5'') |
| Arm length,mm(ft in) | 1,400(4'7.1'') |
| Bucket capacity,m³(yd³) | 0.12(0.16) |
| A Max. digging reach,mm(ft in) | 5,355(17'6.8") |
| B Max. digging reach on ground,mm(ft in) | 5,240(17'2.3") |
| C Max. cutting height,mm(ft in) | 4,660(15'3.5") |
| D Max. dumping height,mm(ft in) | 3,340(10'11.5") |
| E Max. digging depth,mm(ft in) | 3,110(10'2.4") |
| F Max. digging depth (horizontal 8ft),mm(ft in) | 2,610(8'6.8") |
| G Max. vertical wall digging depth,mm(ft in) | 2,140(7'0.3") |
| H Overall shipping height,mm(ft in) | 2,545(8'4.2'') |
| I Tail swing radius,mm(ft in) | 860(2'9.9'') |
| J Min. front swing radius,mm(ft in) | 2,340(7'8.1") |
| K Undercarriage length,mm(ft in) | 2150(7'0.6'') |
| L Overall shipping length,mm(ft in) | 4,890(16'0.5'') |
| M Track width,mm(ft in) | 300(11.8'') |
| W Overall shipping width,mm(ft in) | 1,700(5'6.9'') |
