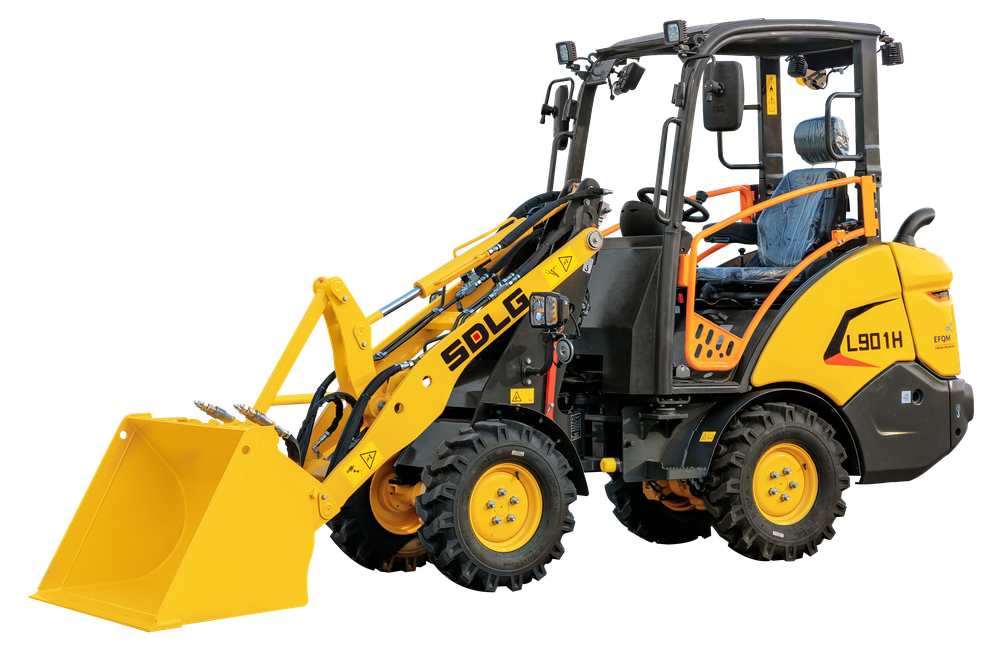

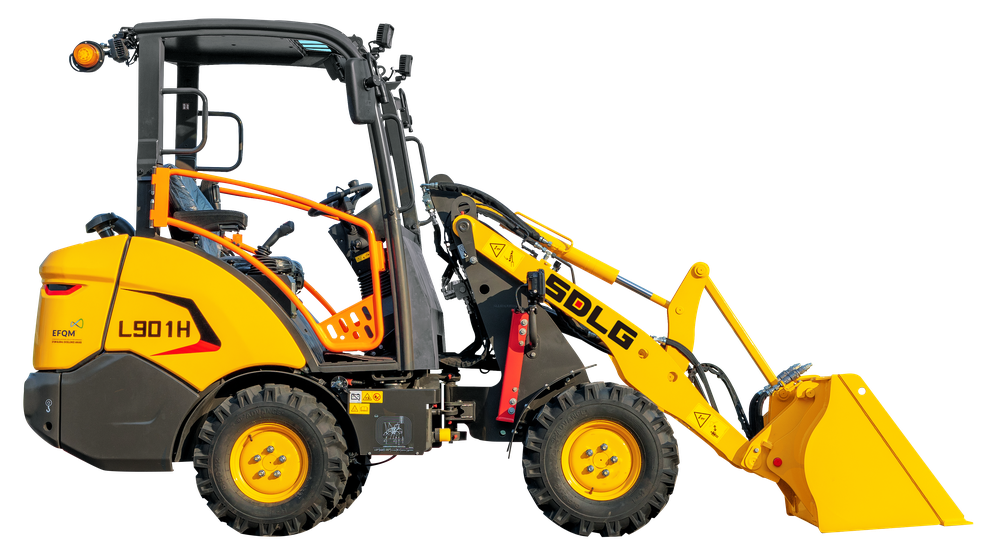

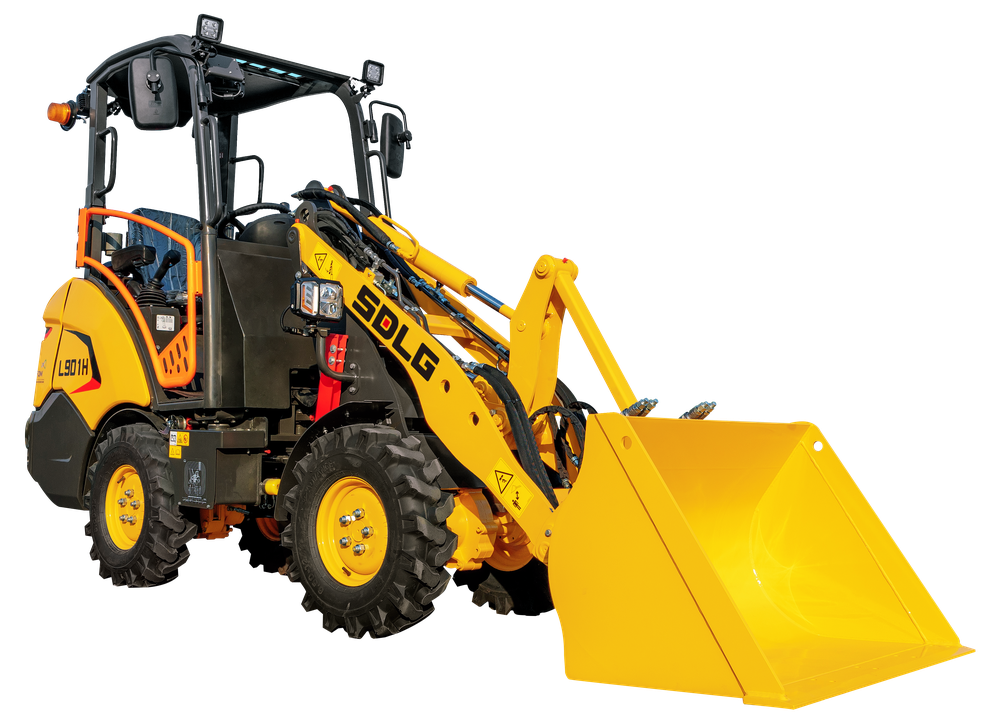

Wheel Loader L901H
Standard bucket capacity,m³(yd³)
Rated load,kg(lbs)
Operating weight ,kg (lbs)
Rated power,kW(hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1.The SDLG-exclusive technology for great traction, which drive form can be switched from series to parallel.
2.Utilizing a large displacement engine allows the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.
3.The operator can easily adjust the engine speed at any time by simply pulling the throttle lever to accommodate any working condition.
4.ROPS&FOPS certified canopy.
2.Utilizing a large displacement engine allows the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.
3.The operator can easily adjust the engine speed at any time by simply pulling the throttle lever to accommodate any working condition.
4.ROPS&FOPS certified canopy.
Technical Parameter
| Standard bucket capacity,m³(yd³) | 0.25 (0.33) |
| Rated load,kg(lbs) | 400 (882) |
| Operating weight ,kg (lbs) | 1,950(4,299) |
| Max.breakout force,kN(lbf ) | 12 (2,698) |
| Engine mode | Kubota D1703 |
| Rated power,kW(hp) | 18.2 (24.4)/2,200 |
| Engine displacement,ml (in³） | 1674 (102) |
| Speed at Fl/Rl,km/h (mph) | 0~6 (0~3.7) |
| Transmission type | HST |
| Speed at F2/R2,km/h (mph) | 0~12 (0~7.5) |
| Overall shipping size (L•W•H)，mm(ft in) | 4015 (13'2")*1,000(3'3.4")*2203 (7'2.7") |
| Tire size | 6.5-12 |
| A Wheelbase,mm(ft in) | 1,370(4'5.9") |
| Fuel tank,L(gal) | 25 (6.6) |
| B Ground clearance,mm(ft in) | 165 (6.5") |
| C Reach at max.height,mm(ft in) | 468 (1'6.4") |
| D Dumping angle,° | 45 |
| E Height at bucket pin,mm(ft in) | 2,592(8'6") |
| F Dumping height,mm(ft in) | 1,820(5'11.7") |
| G Bucket rollback at ground level,° | 50 |
| I Wheel tread,mm(ft in) | 685(2'3.0") |
| J Articulation angle,° | 45 |
| K Turning radius at over bucket,mm (ft in) | 2,590(8'6") |
| M Turning radius at inside of tires,mm(ft in) | 1247（4'1.1") |
