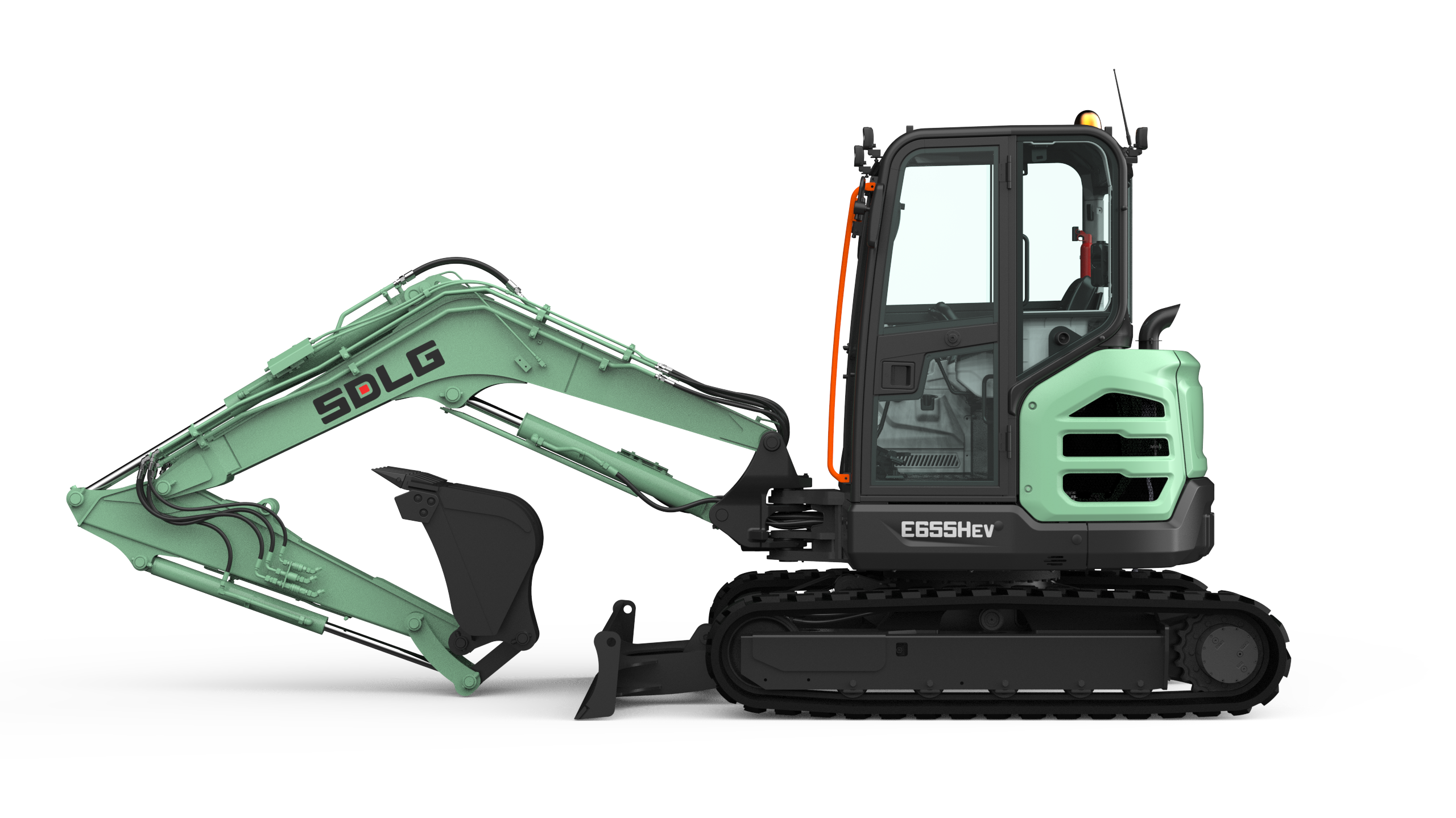

Electric Product E655HEV

Bucket Capacity (m³)

0.21

Operating Weight (kg)

6350
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

1. The controller independently developed by SDLG enables real-time communication between multiple components, monitors the machine's operating status, manages and optimizes power distribution, thereby improving safety and operational autonomy.

2. The lithium iron phosphate battery features high safety and fast DC charging, allowing 1 hour of charging for 4–6 hours of operation.

3. A 7-inch touch screen displays battery level and power, supports both touch and keypad input, and integrates data visualization for each module.

4. An intelligent heat dissipation management system with independent fan control, an integrated water pump, and an electronically controlled online temperature monitoring system intelligently adjusts fan speed for high efficiency and energy savings.

5. Equipped with redundancy detection, insulation monitoring, high-voltage interlocking, charging safety detection, and other functions. High-flame-resistant electrical components compliant with the IP67 standard are also used to ensure electrical safety.

Technical Parameter
Battery Endurance Life (h) /
Charging Time (h) 1
Maximum Digging Height(mm) 5608
Maximum Digging Depth (mm) 3492
Maximum Digging Radius (mm) 5940
Rated Motor Power (KW) 34 (46)
Battery Voltage (V) 521
Battery Capacity(kWh) 90
Length×Width×Height (mm) 5920*1980*2557
Bucket Capacity (m³) 0.21
Operating Weight (kg) 6350
