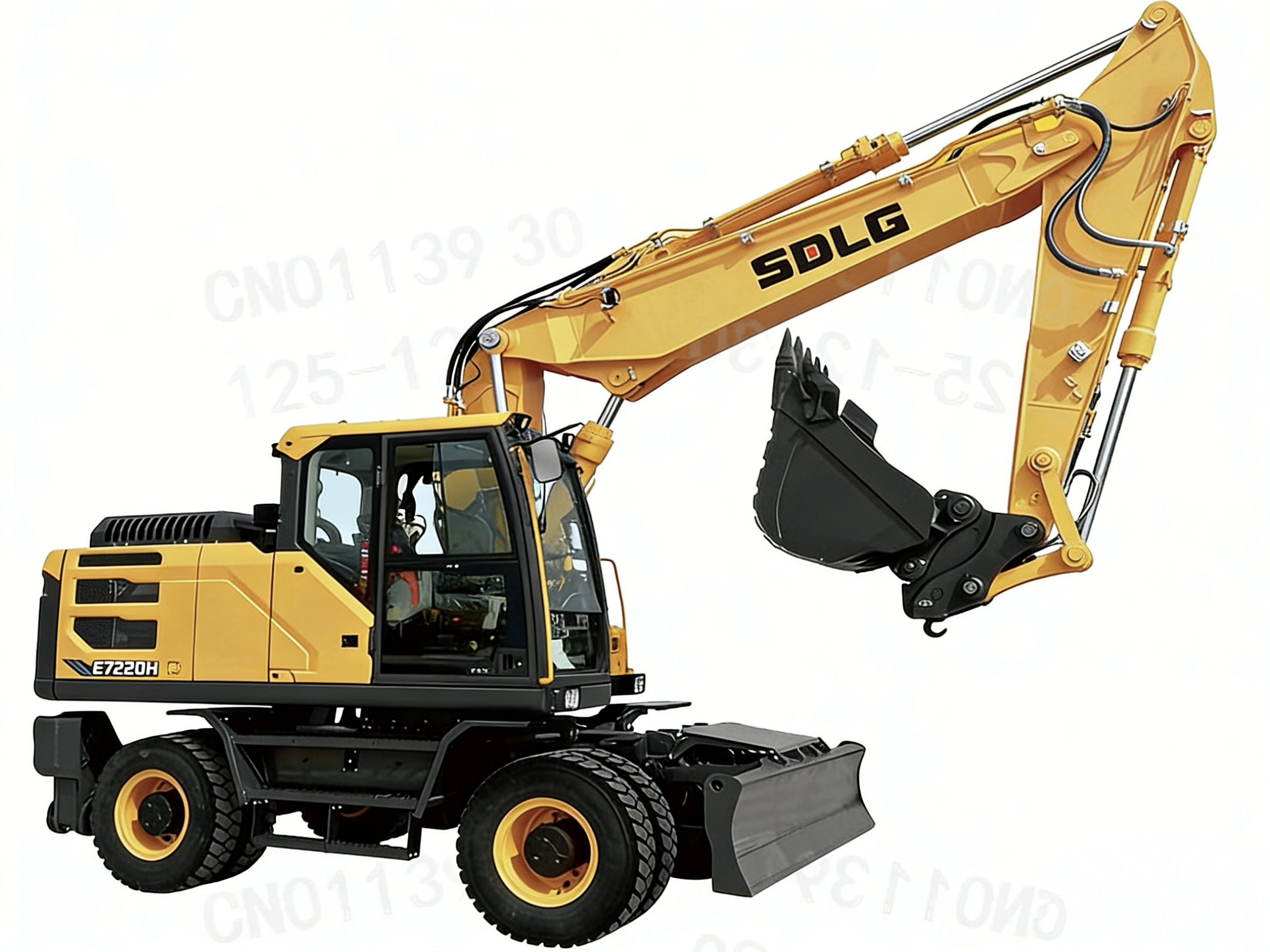

Excavator E7220H

Operating Weight (kg)

23300

Bucket capacity (m³)

0.95

Rated power (kW)

123
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

E7220H is a one new comprehensive wheeled excavator launched by SDLG, it adopts new H series appearance, with durable power system, good fuel adaptability; Equipped with high efficient electronic control hydraulic system, has quick action response, flexible compound action, high efficiency; High-end H series cab, smooth operation, comfortable driving, which makes it in clearing, gravel, urban construction and other comprehensive operating conditions have very excellent performance.

Technical Parameter
Fuel tank capacity (L) 380
Max. digging height (mm) 10050
Max. digging depth (mm) 6050
Max. digging radius (mm) 9800
Traveling speed (km/h) 3/36.5
Swing speed (r/min) 11
Emission Standard GB 20891-2007
9490×2510×3420
Operating Weight (kg) 23300
Bucket capacity (m³) 0.95
Rated power (kW) 123
Engine model BF6M2012-17T2
