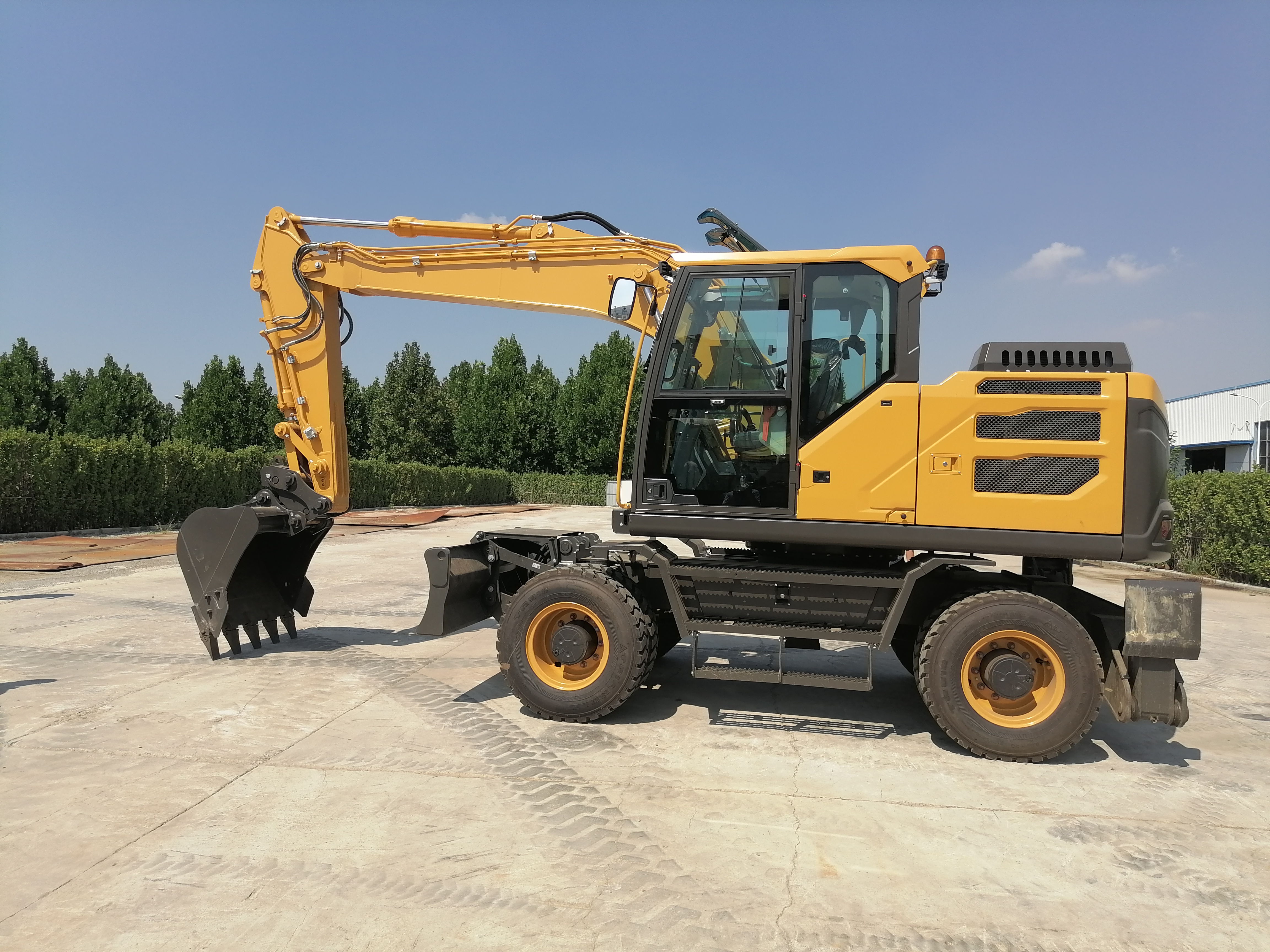

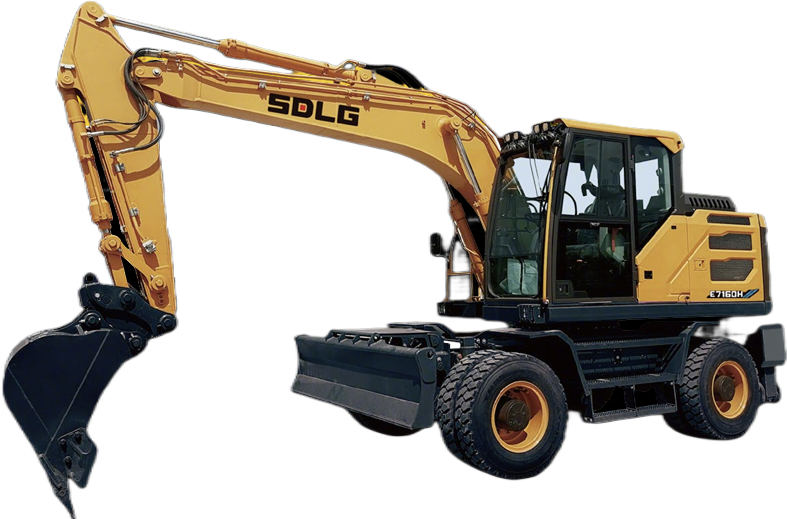

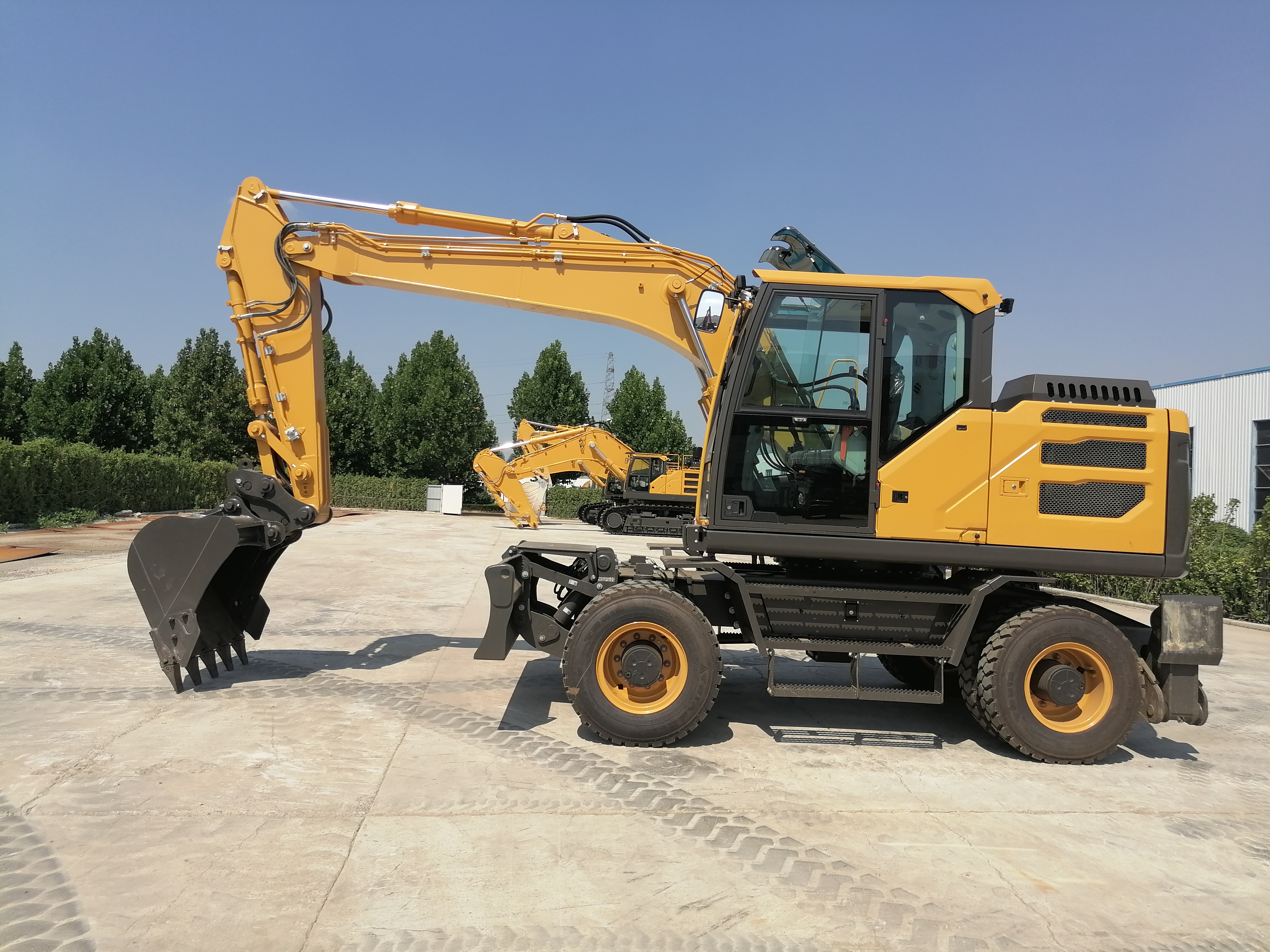

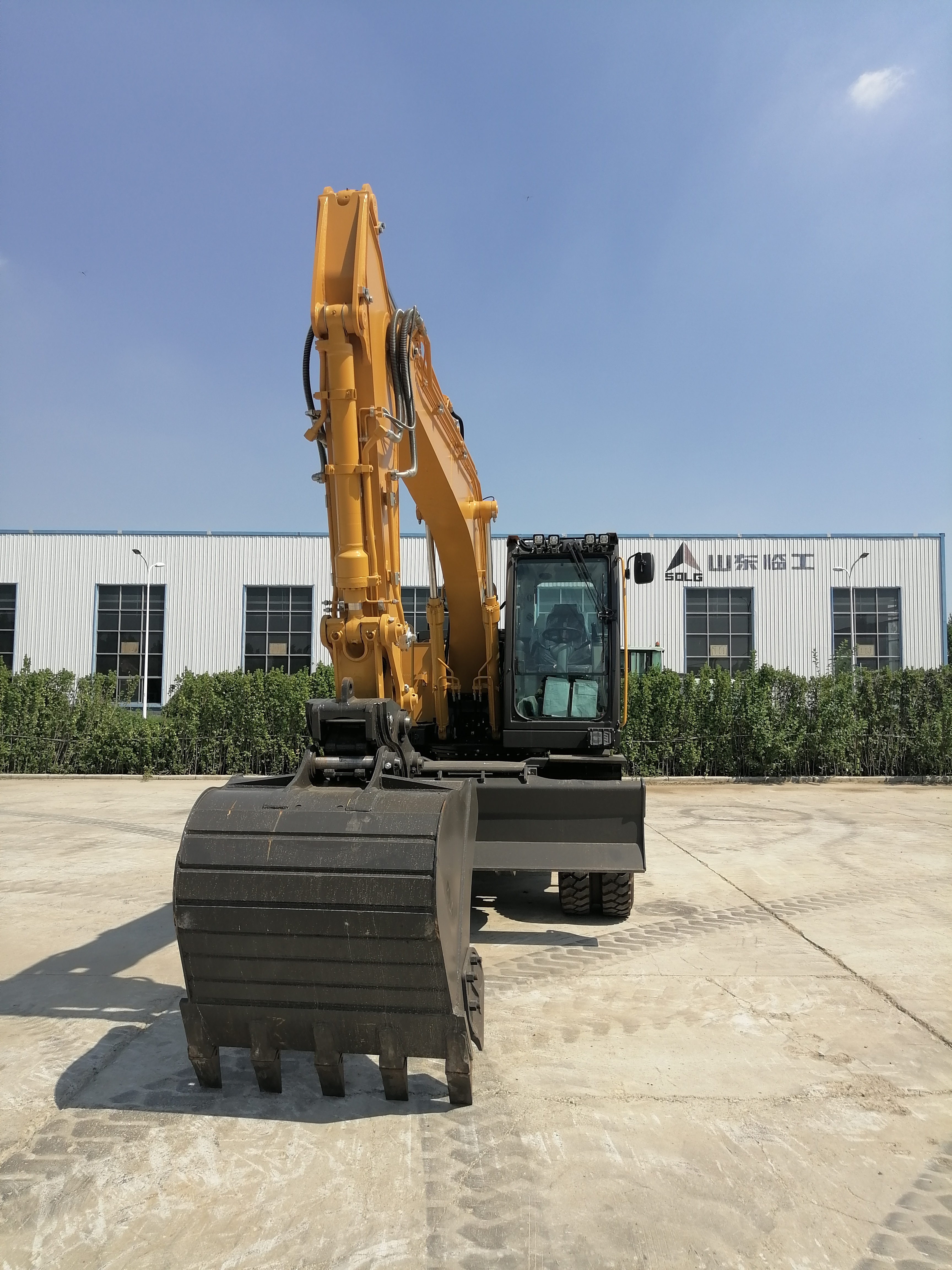

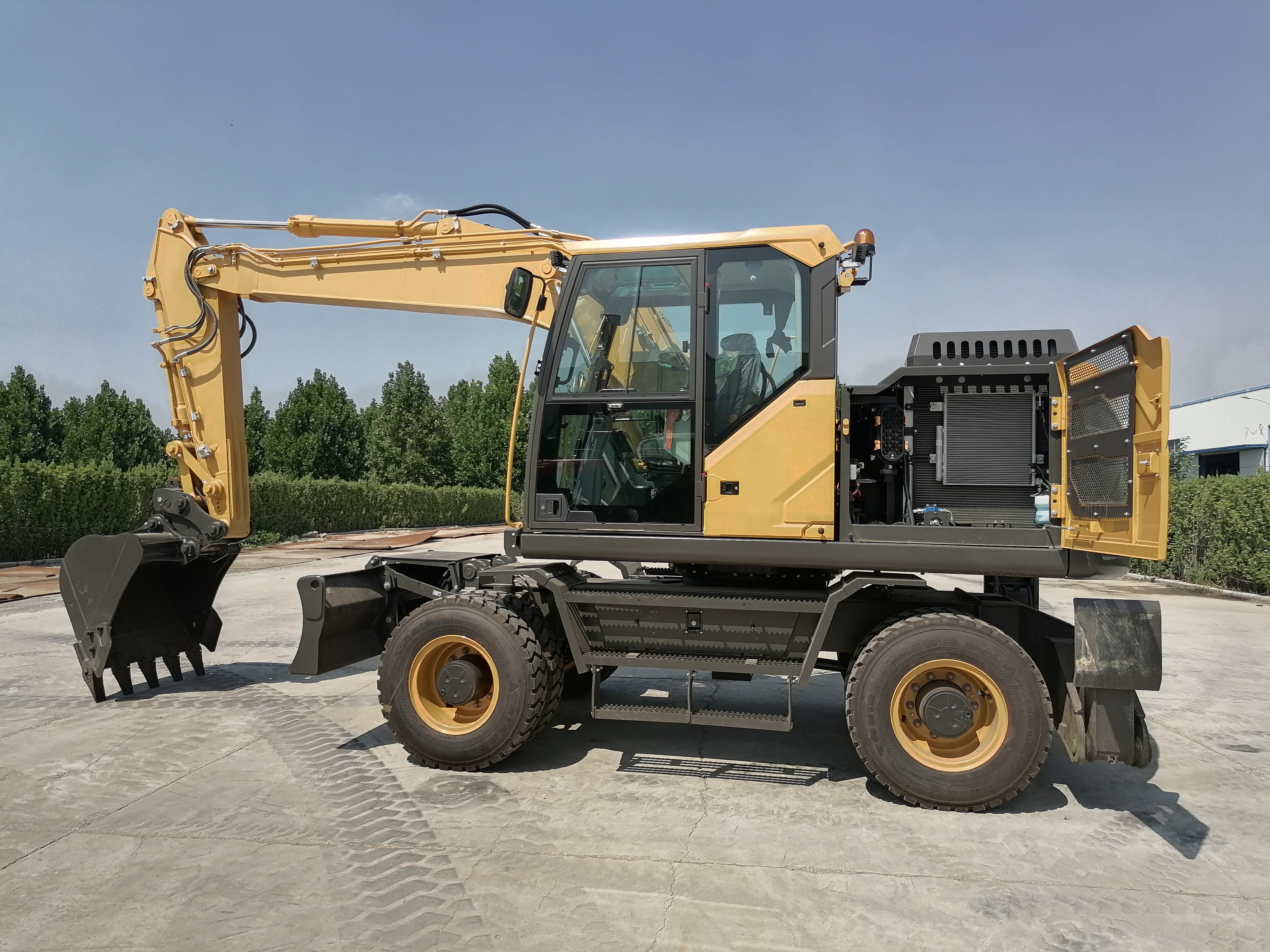

E7160H is a one new comprehensive wheeled excavator launched by SDLG, it adopts new H series appearance, with durable power system, good fuel adaptability; Equipped with high efficient electronic control hydraulic system, has quick action response, flexible compound action, high efficiency;, High-end H series cab, smooth operation, comfortable
driving, which makes it in clearing, gravel, urban construction and other comprehensive operating conditions have very excellent performance.
| Fuel tank capacity (L) | 290 |
| Max. digging height (mm) | 8840 |
| Max. digging depth (mm) | 4995 |
| Max. digging radius (mm) | 8210 |
| Traveling speed (km/h) | 3.6/37.5 |
| Swing speed (r/min) | 12.2 |
| Emission Standard | GB 20891-2007 |
| Operating Weight (kg) | 16400 |
| Bucket capacity (m³) | 0.6 |
| Rated power (kW) | 123 |
| Engine model | BF6M2012-17T2 |
