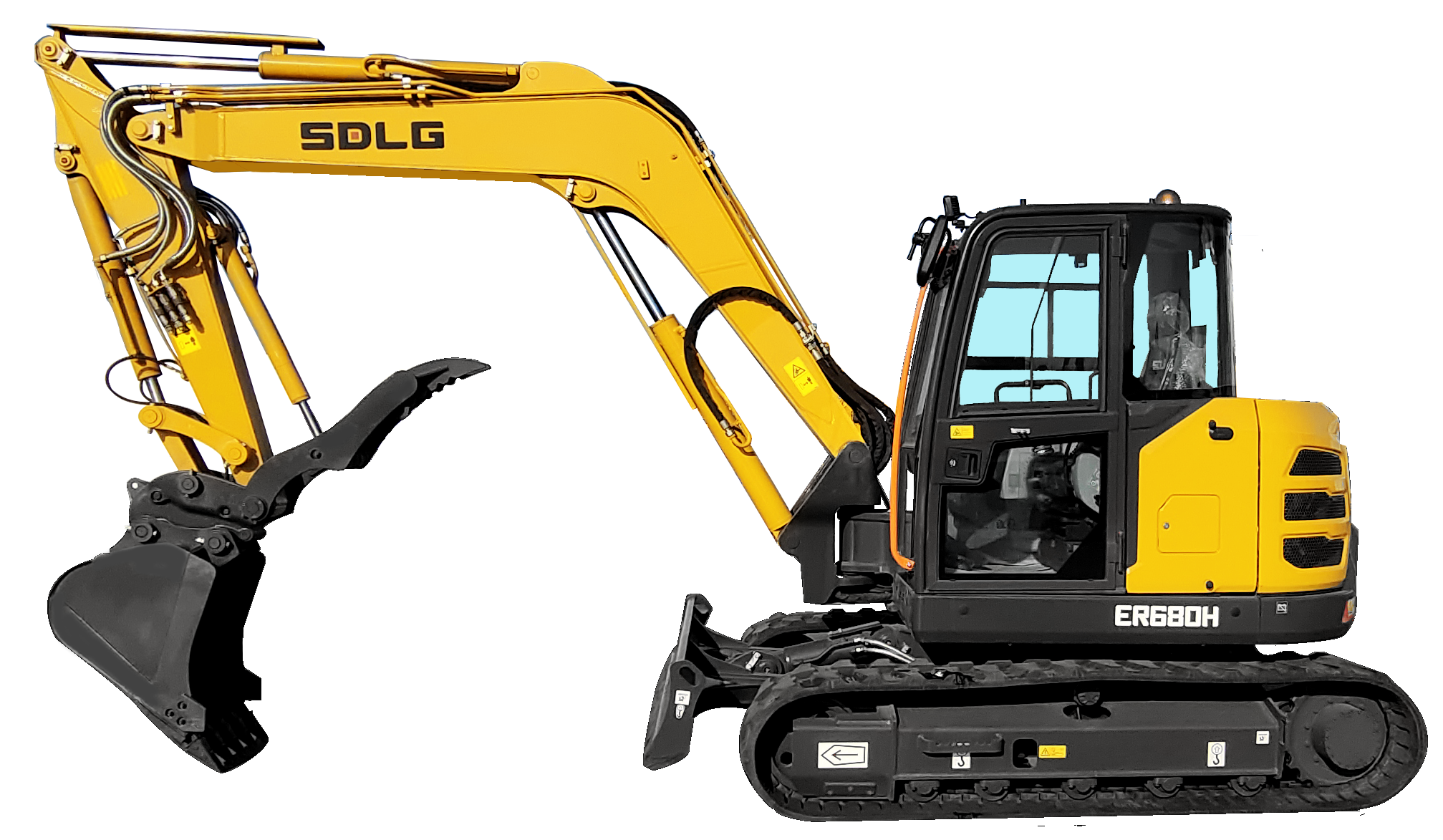

Excavator ER680H

Operating Weight (kg)

8400

Bucket capacity (m³)

0.28

Rated power (kW)

46.2
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

The ER680H is equipped with a Yanmar engine designed to work in perfect synergy with the hydraulic system, delivering optimal breakout force and lifting capacity.

The auxiliary piping with 5 quick couplers allows for fast and efficient attachment changes.

The next-generation ROPS cab offers a comfortable and spacious operating environment, as well as excellent visibility that enhances the user experience.

A 7-inch high-resolution color screen enables visual monitoring of the machine's status.

The centrally positioned filters facilitate easy maintenance.

Technical Parameter
Fuel tank capacity (L) 115L
Max. digging height (mm) 6805
Max. digging depth (mm) 4135
Max. digging radius (mm) 6960
Traveling speed (km/h) 2.9/5.4
Swing speed (r/min) 10
Emission Standard T4f/Stage Ⅴ
6390×2240×2550
Operating Weight (kg) 8400
Bucket capacity (m³) 0.28
Rated power (kW) 46.2
Engine model 4TN98C-1SLGC
