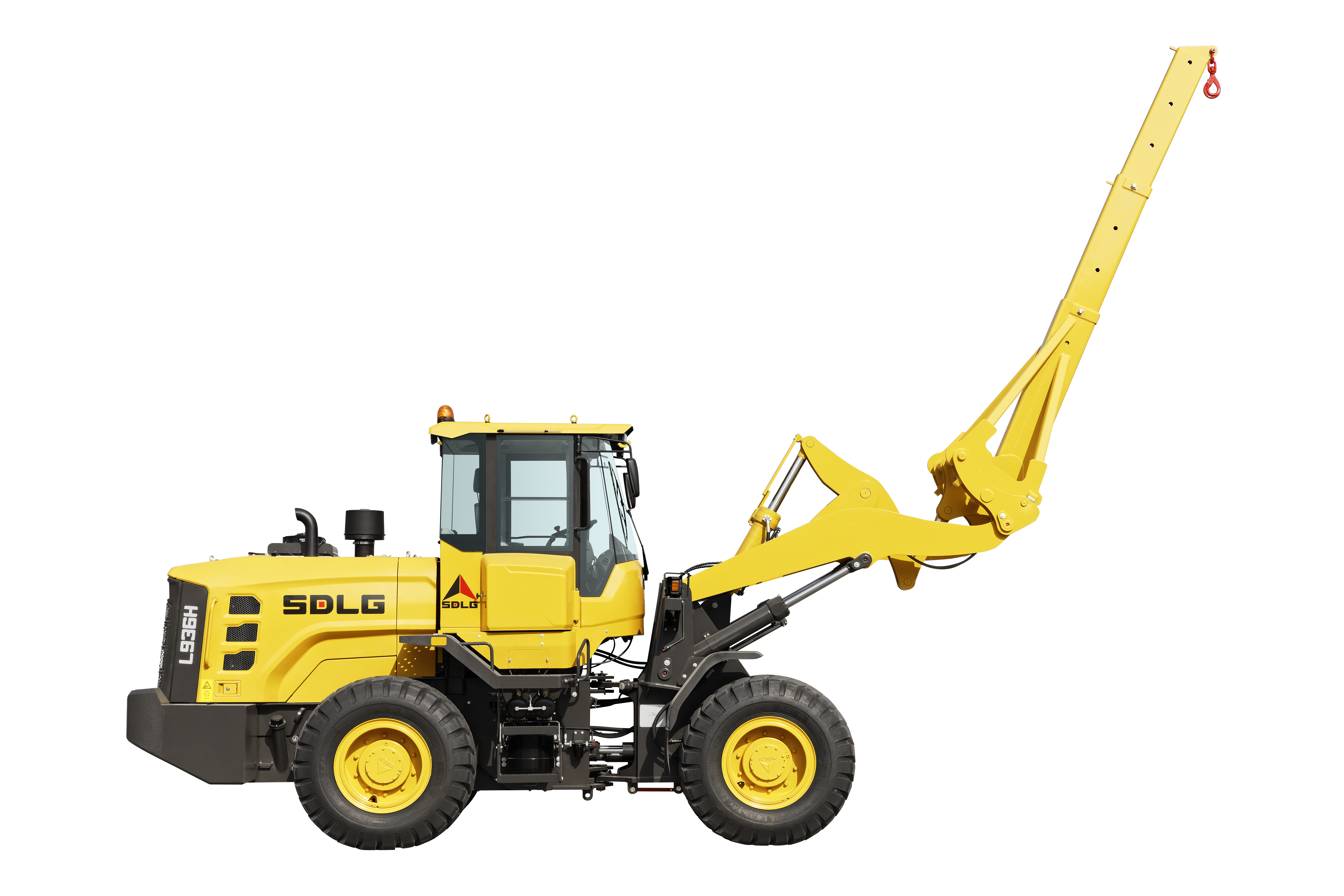

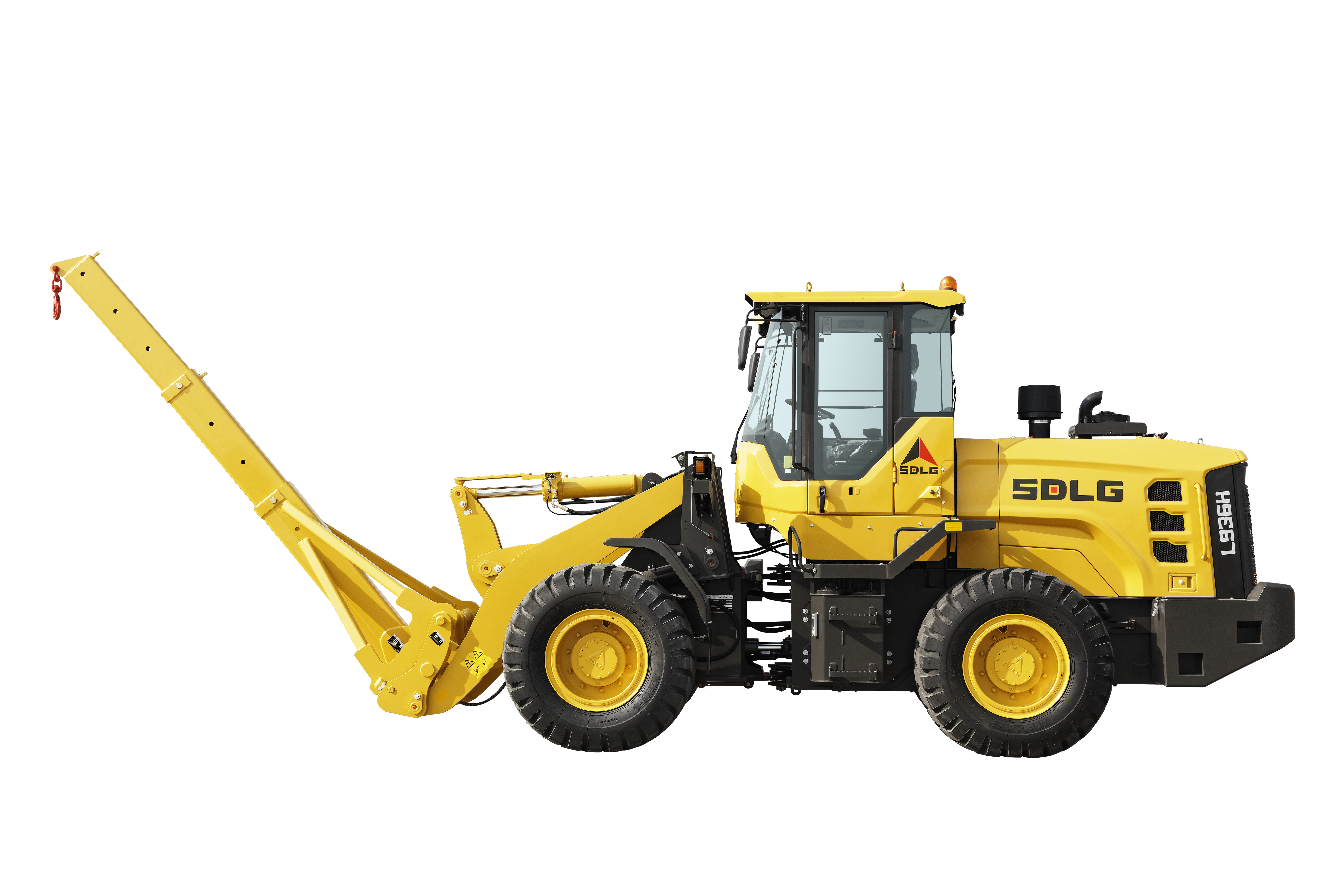

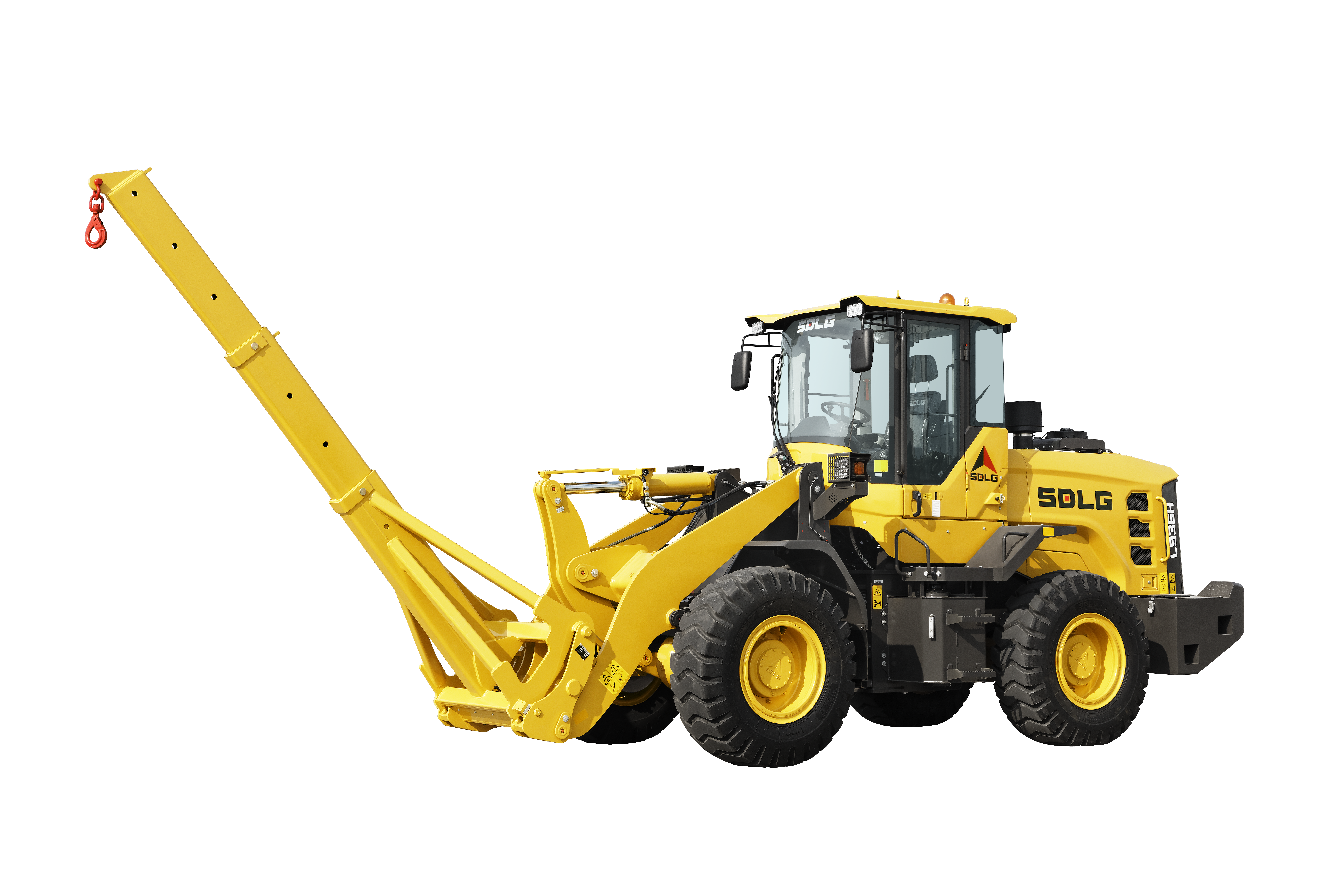

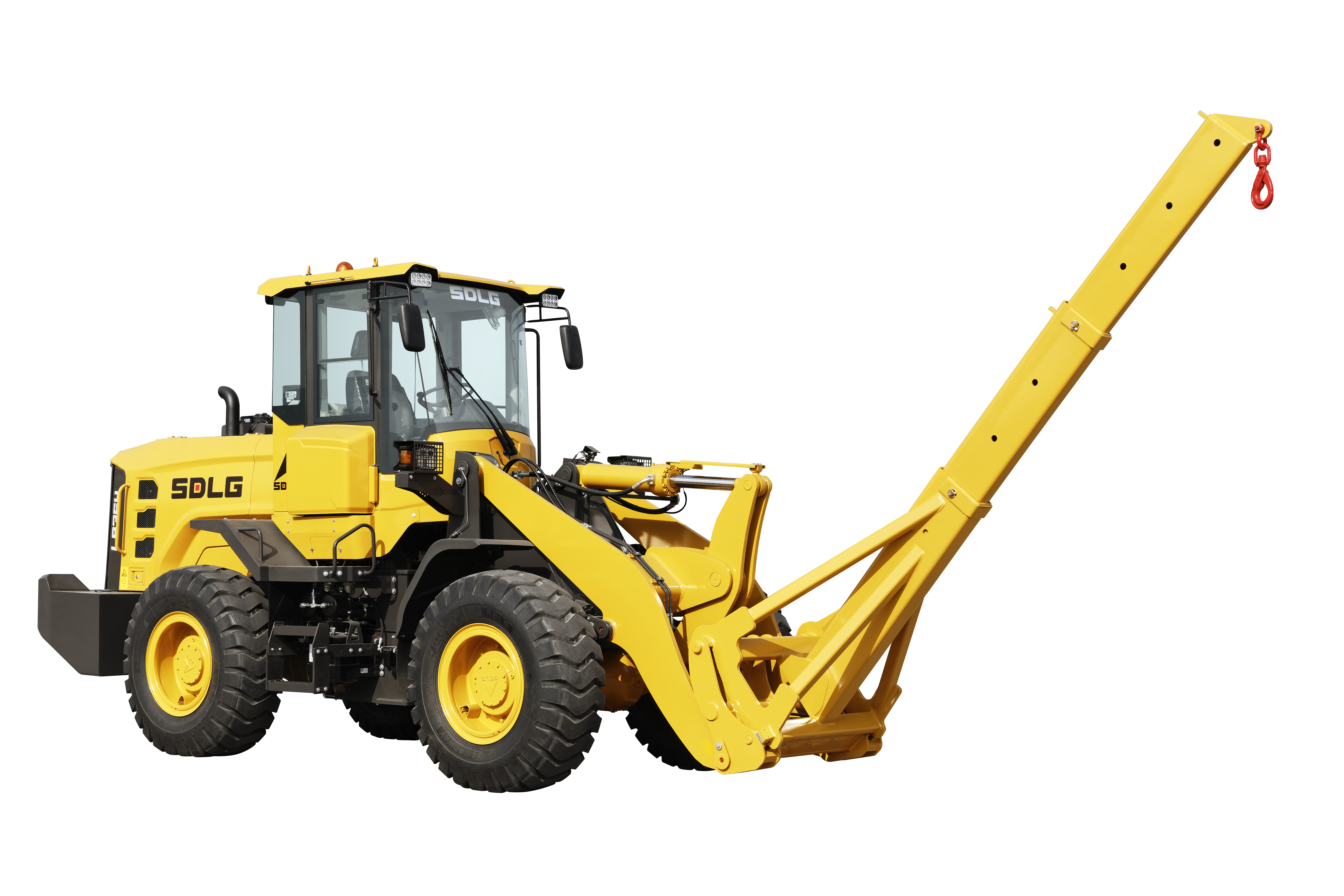

Wheel Loader L936H
Fuel Tank Capacity (L)
Operating Weight (kg)
Rated Power (kW)
Engine Model
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
Technical Parameter
| J Articulation angle ,° | 35 |
| Rated Load (kg) | 3000 |
| Length×Width×Height (mm) | 7490×2520×3170 |
| Wheel Base (mm) | 2850 |
| Max.Dumping Height (mm) | 2800 mm |
| Dumping Distance (mm) | 1245 mm |
| Steering Angel (°) | 37° |
| Emission Standard | GB 20891-2014 |
| Max.Tractive Force (kN) | 100 kN |
| Max.Breakout Force (kN) | ≥82 kN |
| Fuel Tank Capacity (L) | 200 |
| Standard Bucket Capacity (m³) | 1.8(1.5～3.0) |
| Operating Weight (kg) | 11750 |
| Rated Power (kW) | 105 |
| Engine Model | WP6G140E313 |
