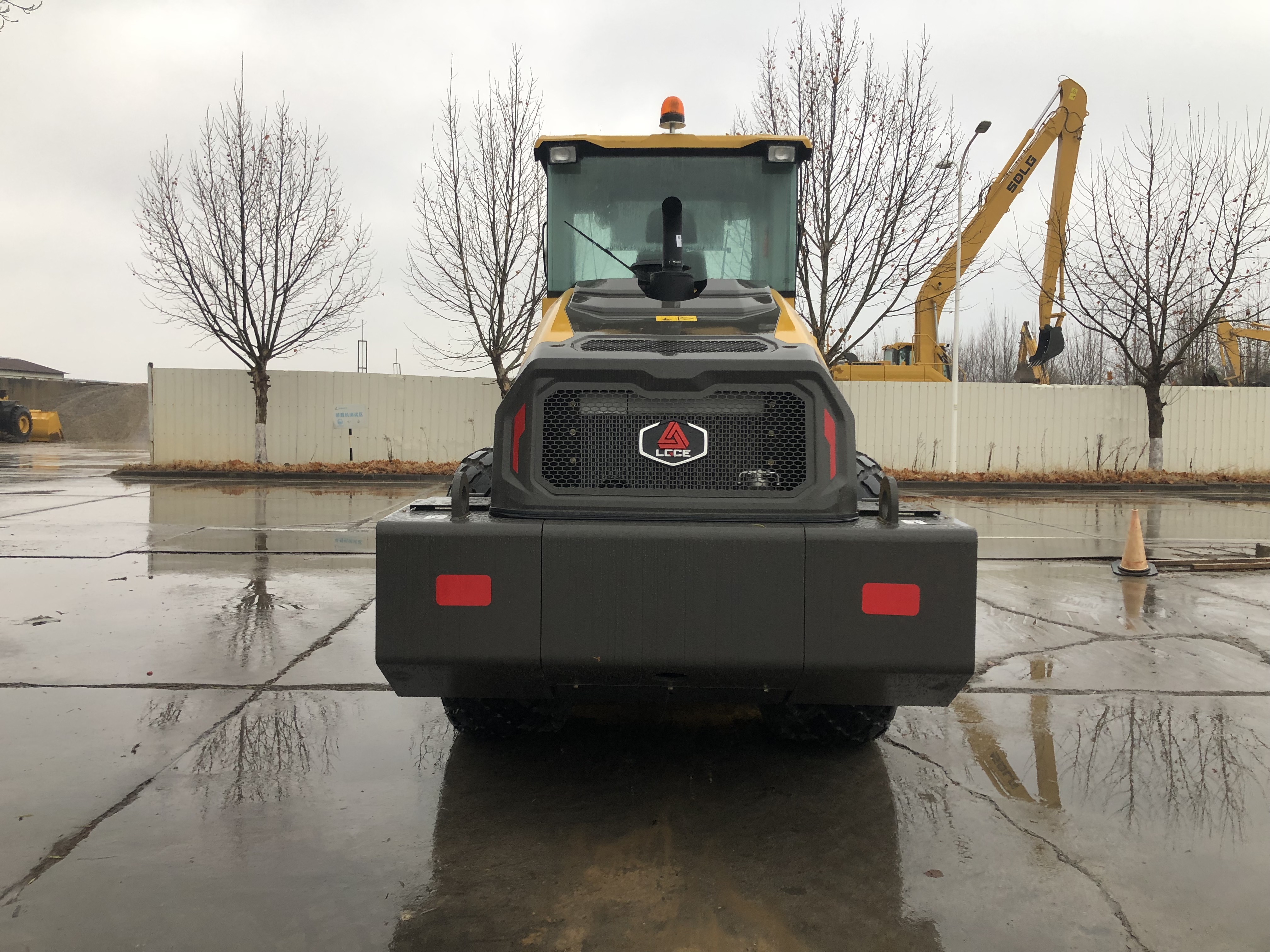

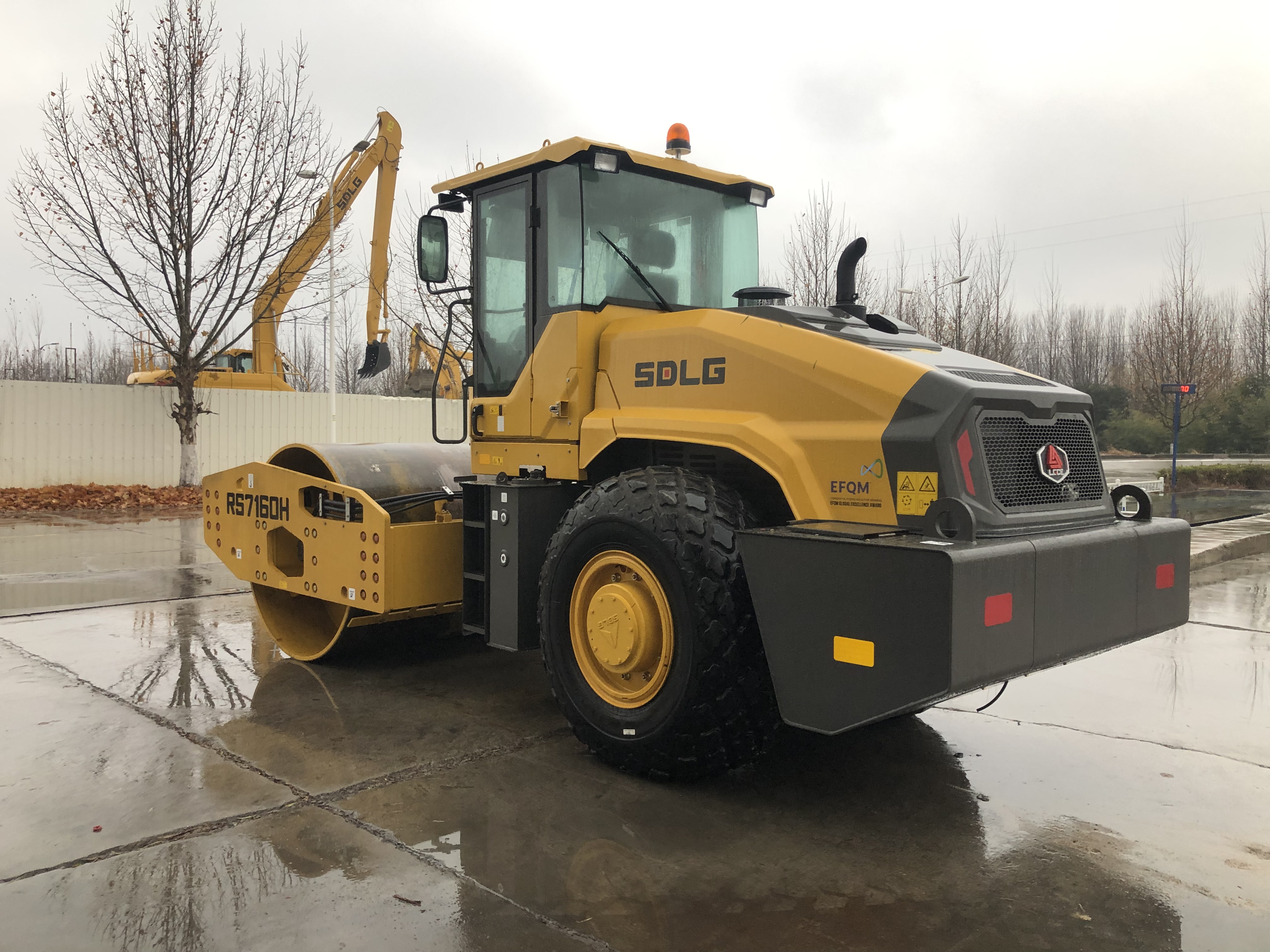

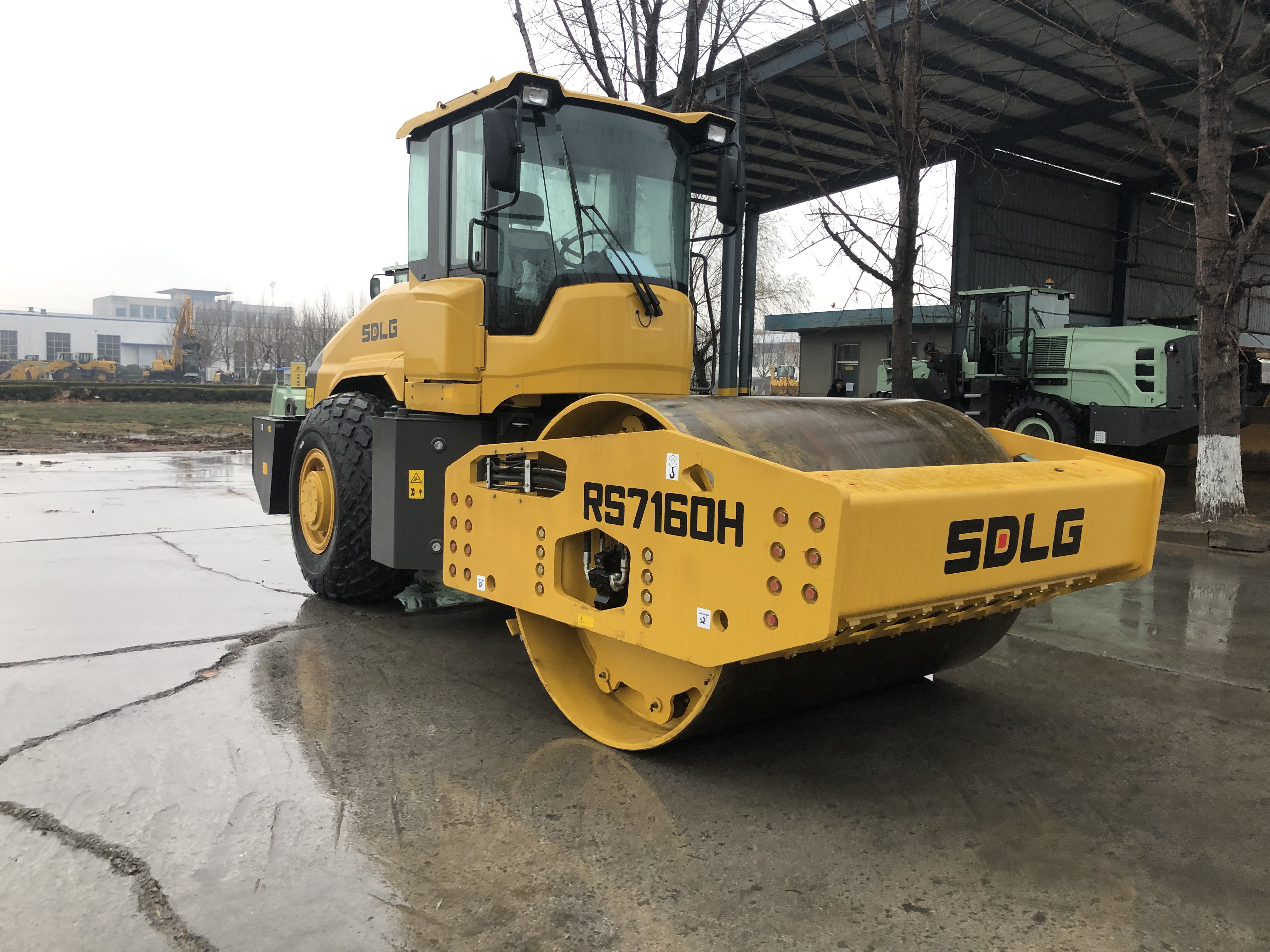

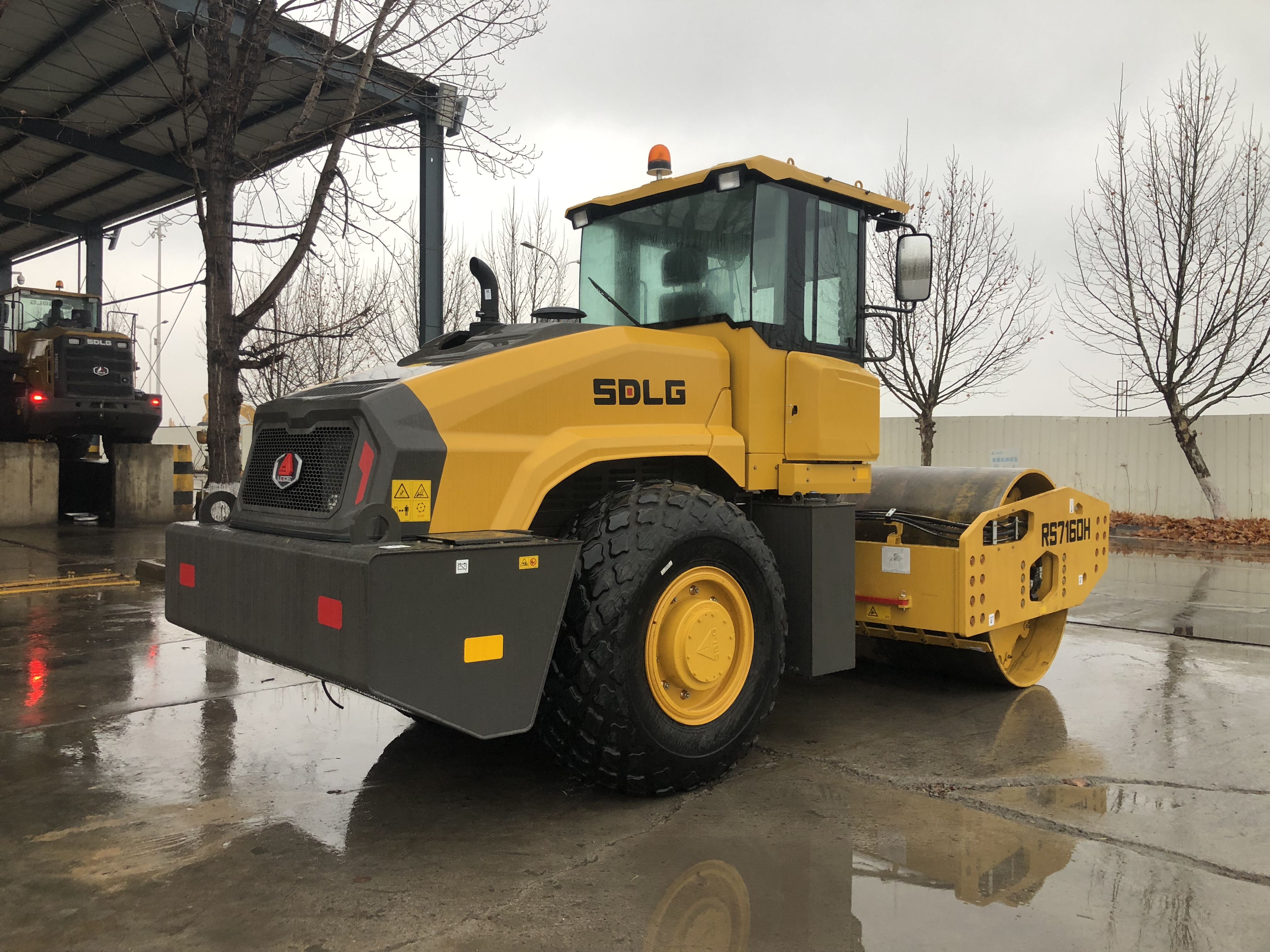

Road Roller RS7160H

Operating Weight (kg)

16000

Rated Power (kW)

118
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

RS7160H is a fully hydraulic double-drive single drum vibratory roller, which can effectively compact all kinds of soil pavement and rock fill. It is at the leading level in the industry in terms of compaction performance, driving performance, manoeuvring performance, reliability and maintenance. It is the ideal compaction equipment for high-grade highways, airports, harbours, railways, embankments and industrial sites.

Technical Parameter
Operating Weight (kg) 16000
Rated Power (kW) 118
Compaction Width (mm) 2130
Engine Model Weichai WP6G160E201
Excitation Force (kN) 325/220
Steering Angle (°) ±35
Fuel Tank Capacity(L) 270
Overall Dimension (L×W×H)(mm) 6315×2318×3380
Nominal Amplitude (mm) 2.0/1.0
Min. Turing Radius (mm) 6446
