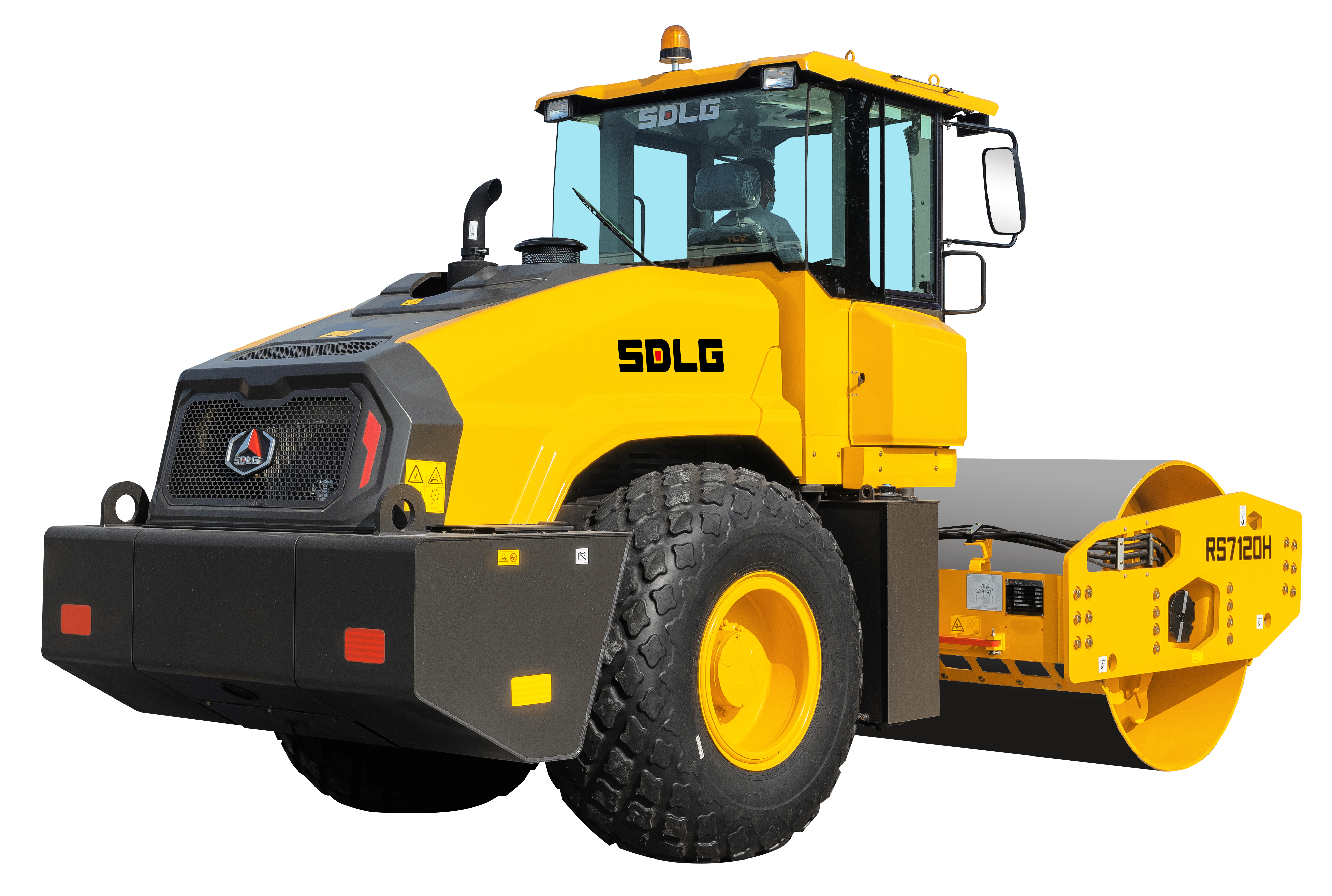

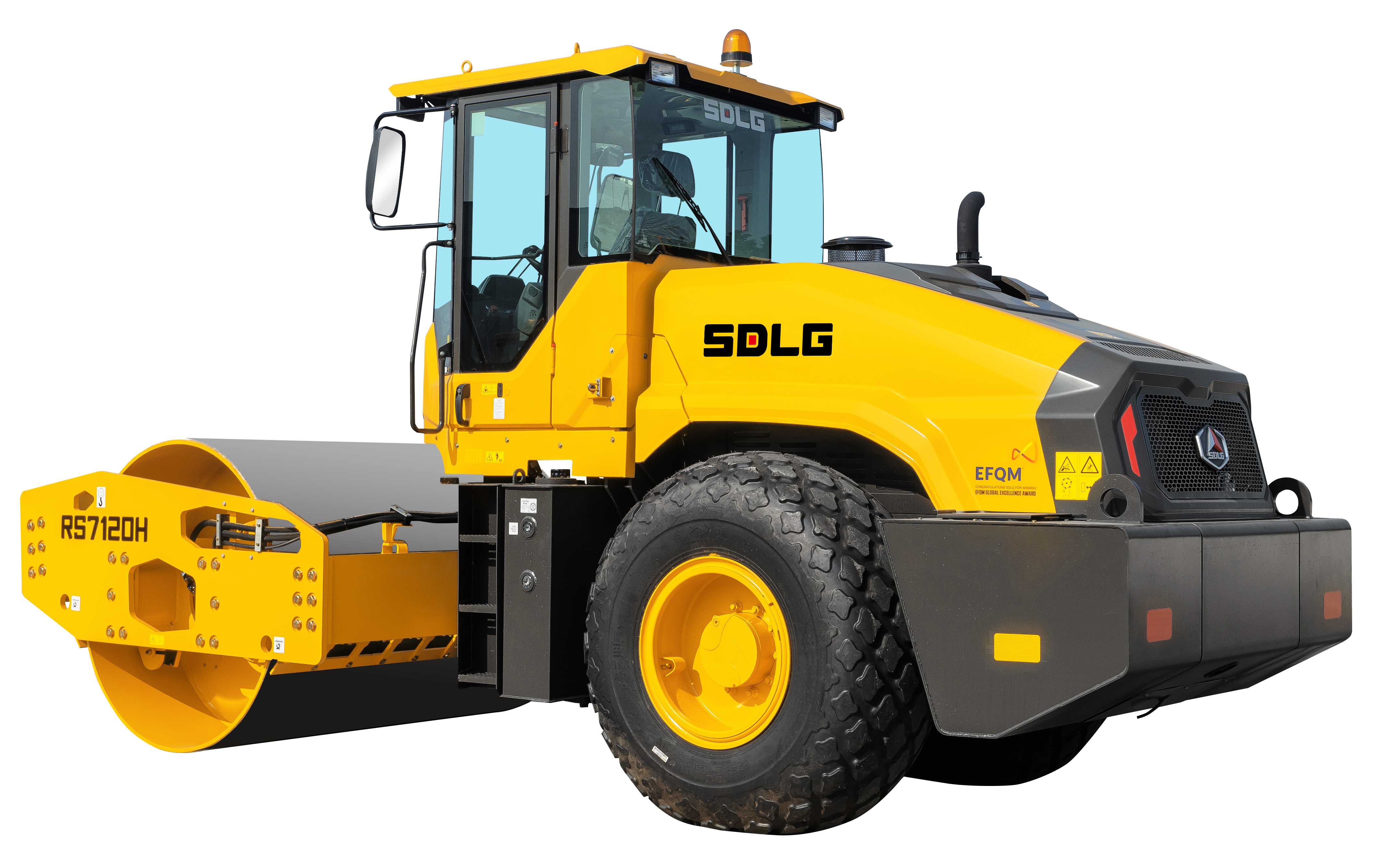

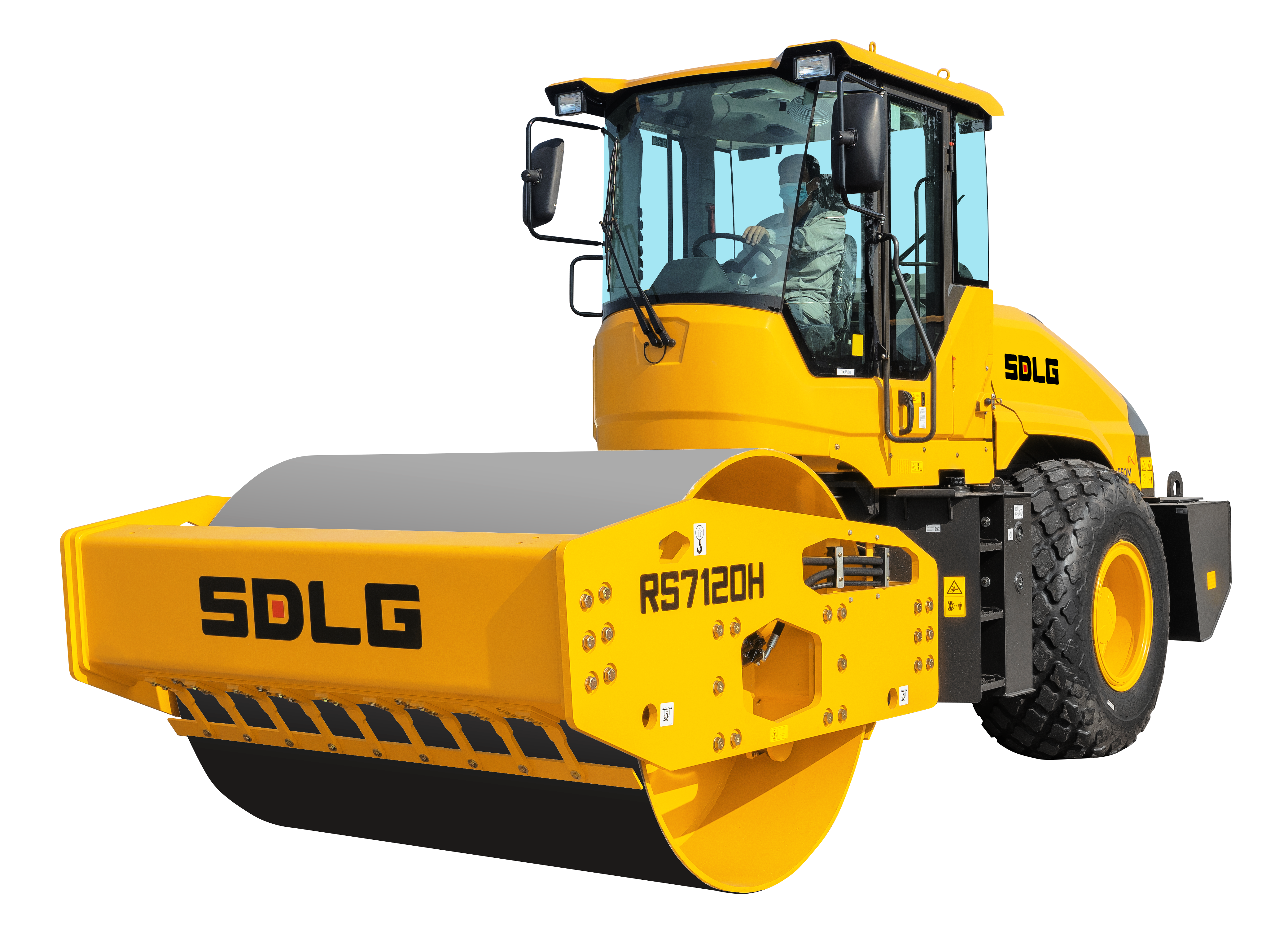

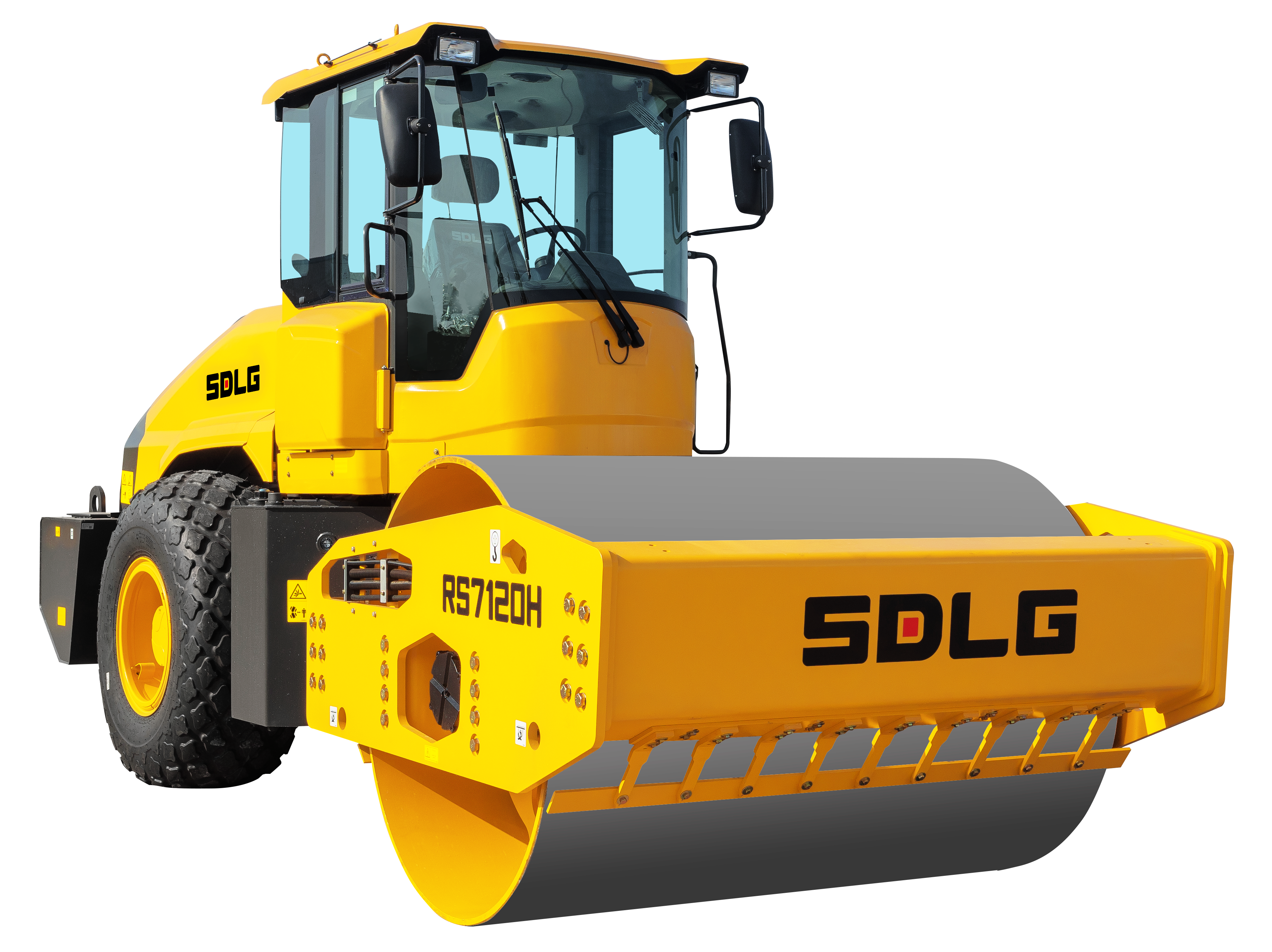

Road Roller RS7120H(T4)

Operating Weight (kg)

12000

Rated Power (kW)

92
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

RS7120H full hydraulic and single steel drum vibratory roller is a new generation of roller newly developed by SDLG based VOLVO technology. This machine is of excellent performance and fashionable shape and is industrial leading in compacting, driving and operating performances and reliability, repair and maintenance performance and so on. It is the ideal compacting equipment of highway, airport, port, railway, dam and industrial site.

Technical Parameter
Operating Weight (kg) 12000
Rated Power (kW) 92
Compaction Width (mm) 2130
Engine Model Weichai WP4.6NG125E473
Excitation Force (kN) 270/163
Steering Angle (°) ±35
Fuel Tank Capacity(L) 270
Overall Dimension (L×W×H)(mm) 5947x2316x3170
Nominal Amplitude (mm) 1.9/0.95
Min. Turing Radius (mm) 6210
