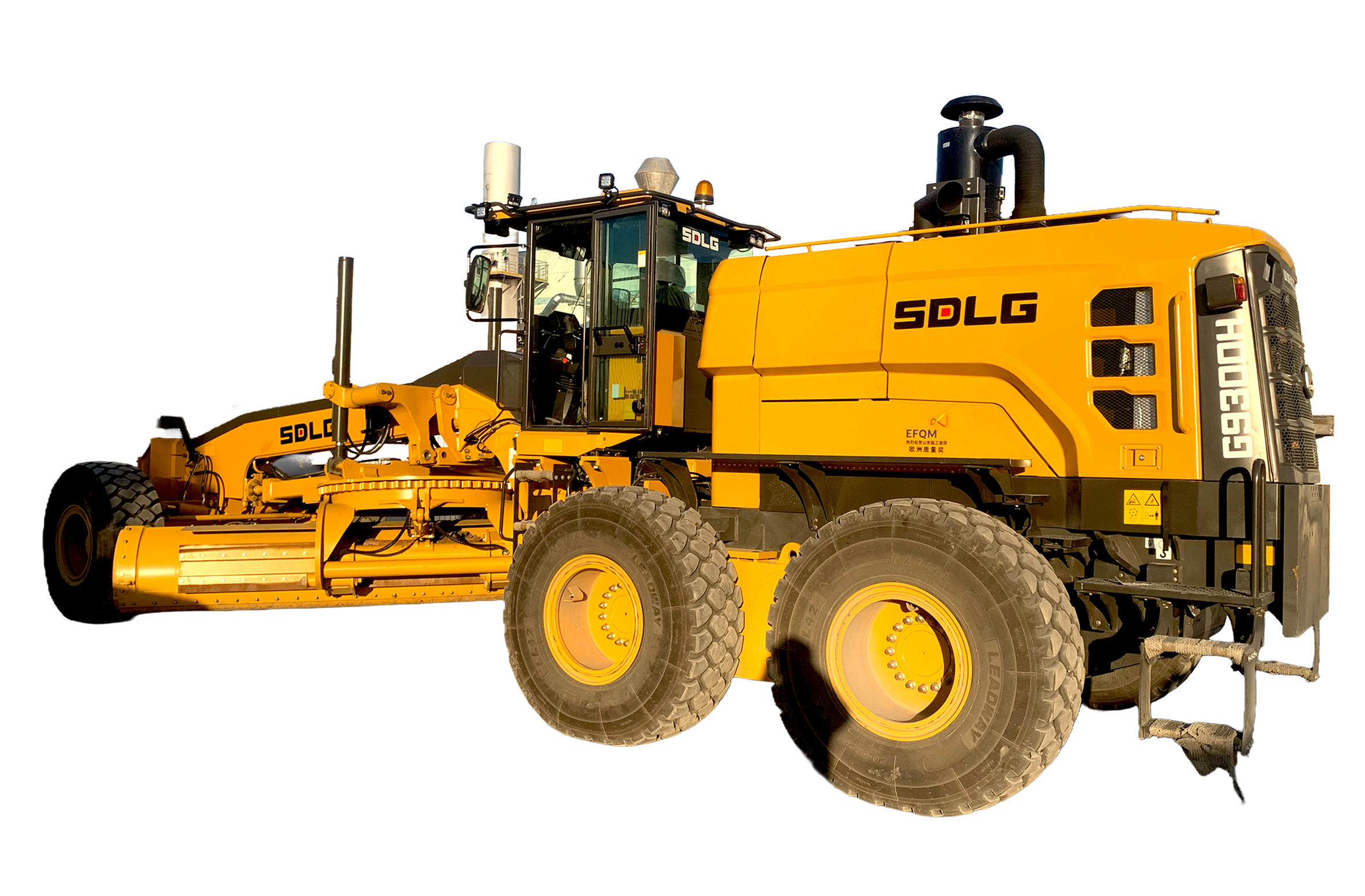

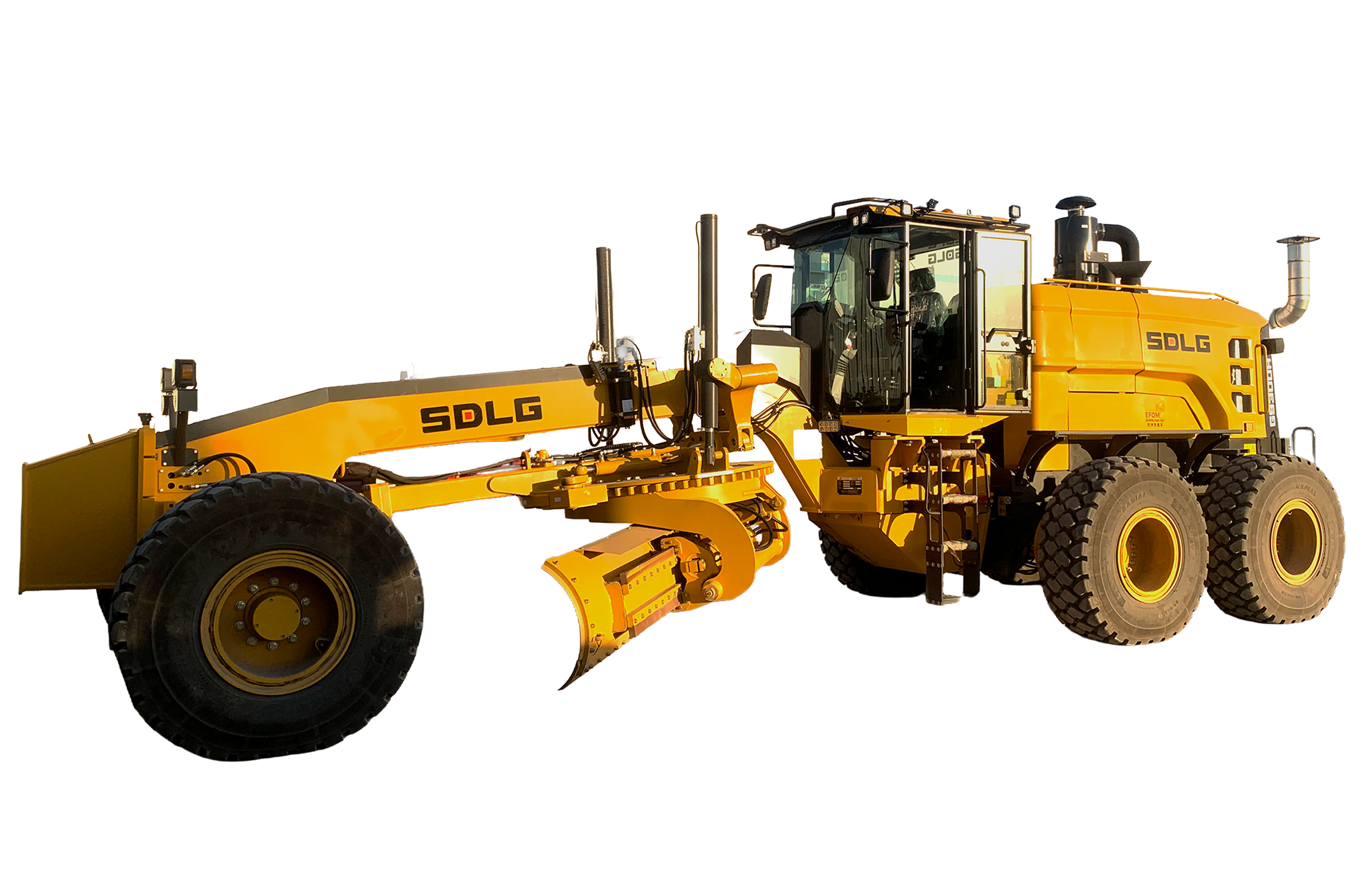

Motor Grader G9300H

Overall Working Weight (kg)

27450

Rated Power (kW)

242
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
  • High-Productivity Power: The efficient 242 kW engine delivers strong, reliable performance to handle tough materials and maintain high work speeds, maximizing output on extensive job sites.

  • Exceptional Blade Capacity & Control: The standard 16-foot blade provides a significantly wider work path, enabling faster completion of large areas. Its advanced geometry and control systems ensure precise grading, sloping, and finishing.

  • Superior Stability & Traction: The heavy-weight design and optimized chassis provide outstanding stability and ground traction, allowing for powerful, controlled cuts and consistent performance on challenging terrain.

  • Operator-Focused Environment: The cab is designed for all-day comfort and efficiency, featuring excellent visibility, intuitive controls, and a focus on ergonomics to reduce fatigue and enhance productivity during long operations.

  • Built for Durability & Heavy Cycles: Constructed with premium, heavy-duty components, the G9300H is built to withstand rigorous use and provide reliable service with minimal downtime, offering excellent long-term value.

Technical Parameter
Overall Working Weight (kg) 27450
Rated Power (kW) 242
Max. Tractive Force (kN) 140
Overall Dimension(L×W×H)(mm) 10618*3428*3520
Max. Inclination Angle of Front Wheel (°) ±18
Max. Swing Angle of Front Axle (°) ±16
Max. Steering Angle of Front Wheel (°) ±50
Steering Angle of Articulated Frame (°) ±21
Cutter Size(LxHxT)(mm) 4876×680×25
Min. Turning Radius (m) 8.24
Cutting Depth of Blade (mm) 825
Max. Speed (km/h) 40
Engine Model QSL8.9 - C325 - 33
Emission Standard GB20891 - 2014 (stage Ⅲ)
Fuel Tank Capacity (L) 410
