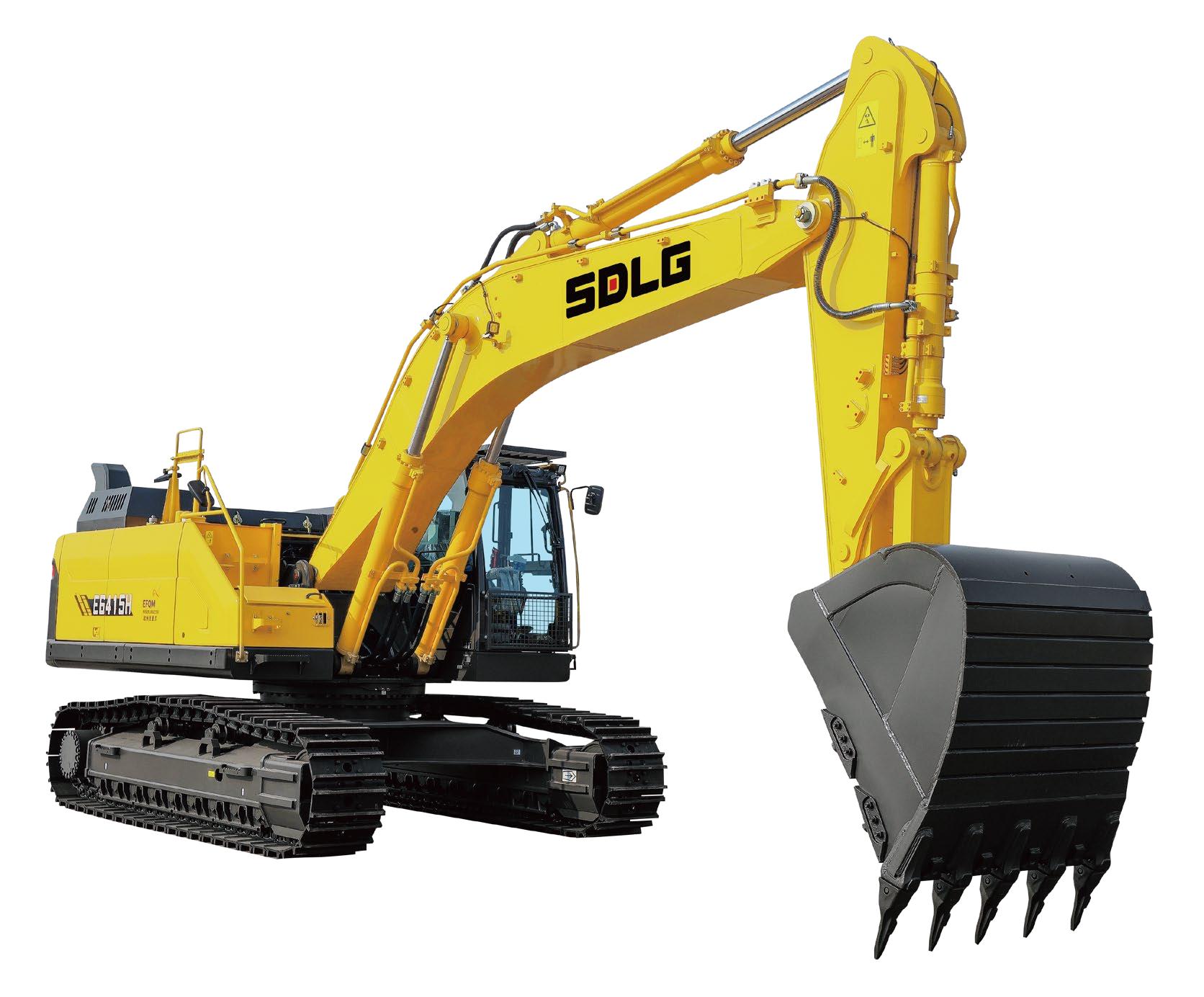

Excavator E6415H
Operating Weight (kg)
Rated Power (kW)
Bucket capacity (m³)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
Powerful And Adaptable
272kW high-power engine with excellent fuel adaptability.
Reliability And Durability
Fully electronically controlled positive flow hydraulic system, reliable core components, and sturdy and durable structural components.
Safety And Comfort
Comfortable cab with safety protection features, air suspension seat, touch-screen IECU, seat heating function, centralized lubrication and maintenance layout, and rear monitor system.
Technical Parameter
| Operating Weight (kg) | 42000 |
| Engine Model | QSL8.9 |
| Rated Power (kW) | 272 |
| Bucket capacity (m³) | 2.3 |
| Length×Width×Height (mm) | 11400×3580×3670 |
| Emission Standard | StageⅢA |
| Swing Speed (r/min) | 9.5 |
| Traveling Speed (km/h) | 3.6/5.3 |
| Max. Digging Radius (mm) | 10760 |
| Max. Digging Depth (mm) | 6980 |
| Max. Digging Height (mm) | 10135 |
| Fuel Tank Capacity (L) | 725 |
