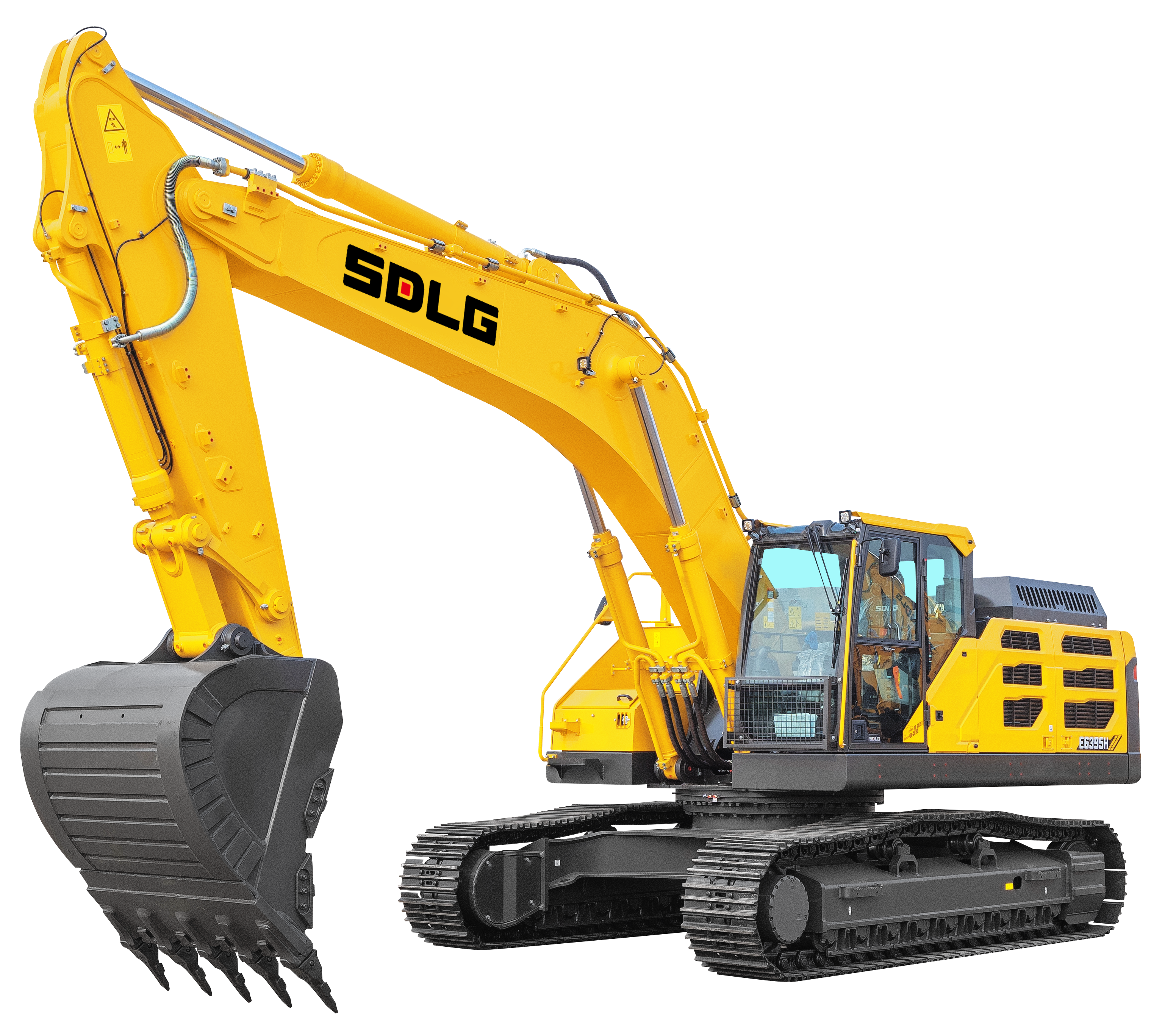

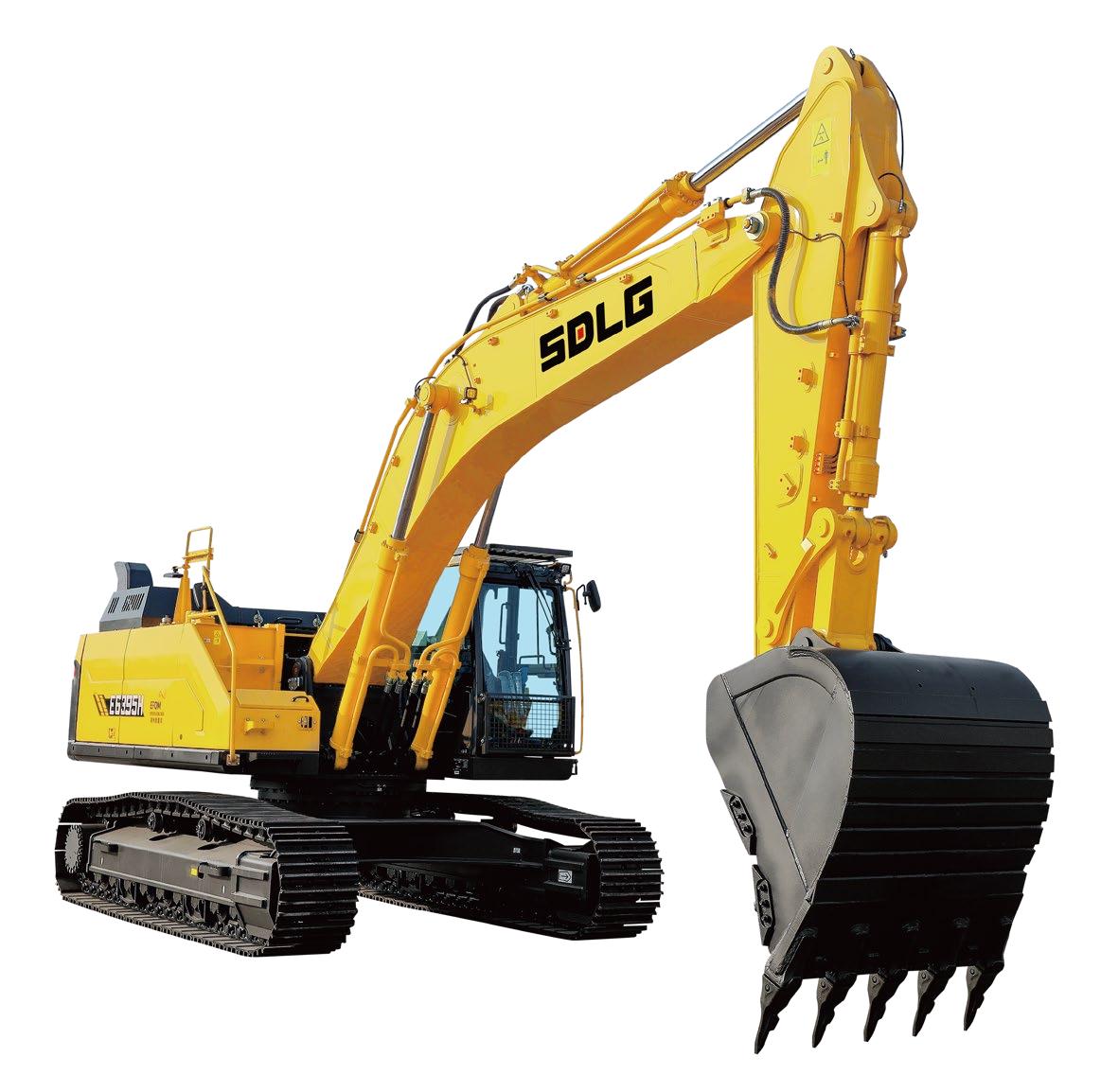

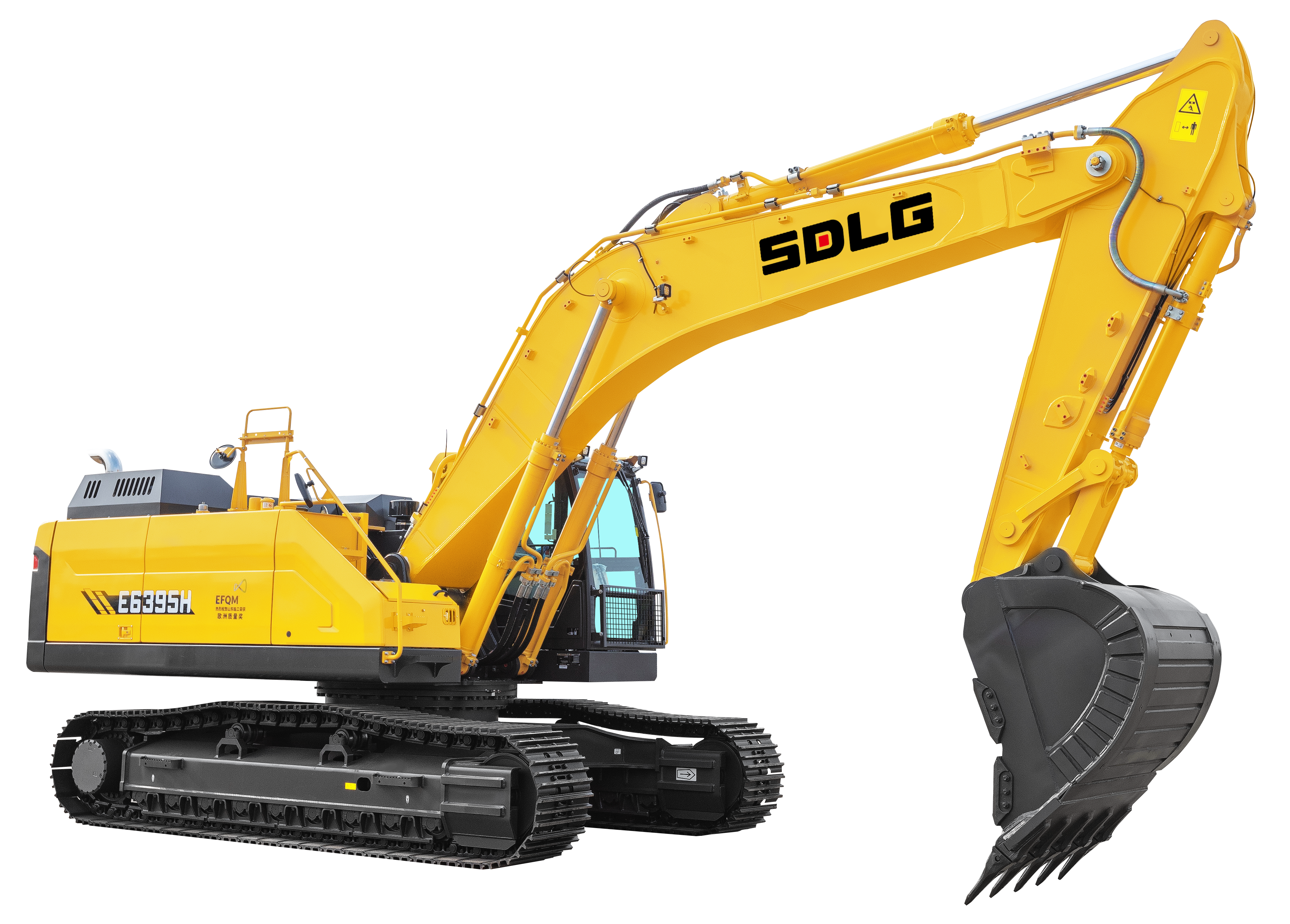

E6395H is a brand-new high-efficiency excavator for comprehensive working conditions launched by Shandong Lingong.
It adopts a brand-new power configuration, which is more powerful and has better fuel adaptability.
At the same time, it is equipped with an advanced fully electronically controlled hydraulic system, which has a fast response speed, coordinated compound actions and high working efficiency.
It is also equipped with Lingong's new H series high-end cab, which has a wide field of vision and is comfortable to drive and ride.
This enables it to have excellent operational performance in comprehensive working conditions such as earthwork, crushed stone and medium and large-scale mines.
| Operating Weight (kg) | 39300 |
| Engine Model | 6HK1XWSC-02 |
| Rated Power (kW) | 212 |
| Bucket capacity (m³) | 1.9 |
| Length×Width×Height (mm) | 11370×3570×3895 |
| Emission Standard | GB 20891-2007(China Stage II) |
| Swing Speed (r/min) | 9.1 |
| Traveling Speed (km/h) | 3.4/5.1 |
| Max. Digging Radius (mm) | 11010 |
| Max. Digging Depth (mm) | 7270 |
| Max. Digging Height (mm) | 10220 |
| Fuel Tank Capacity (L) | 725 |
